BlazorMdiShowViewStrategy Class

A Show View Strategy used to display a multiple document interface in XAF ASP.NET Core Blazor applications.

Namespace: DevExpress.ExpressApp.Blazor

Assembly: DevExpress.ExpressApp.Blazor.v26.1.dll

Declaration

C#

public class BlazorMdiShowViewStrategy :
    BlazorShowViewStrategy

VB.NET

Public Class BlazorMdiShowViewStrategy
    Inherits BlazorShowViewStrategy

Remarks

When the UIType property is set to TabbedMDI, the application UI displays a multiple document interface and uses the BlazorMdiShowViewStrategy to manage the display of Views in the UI.

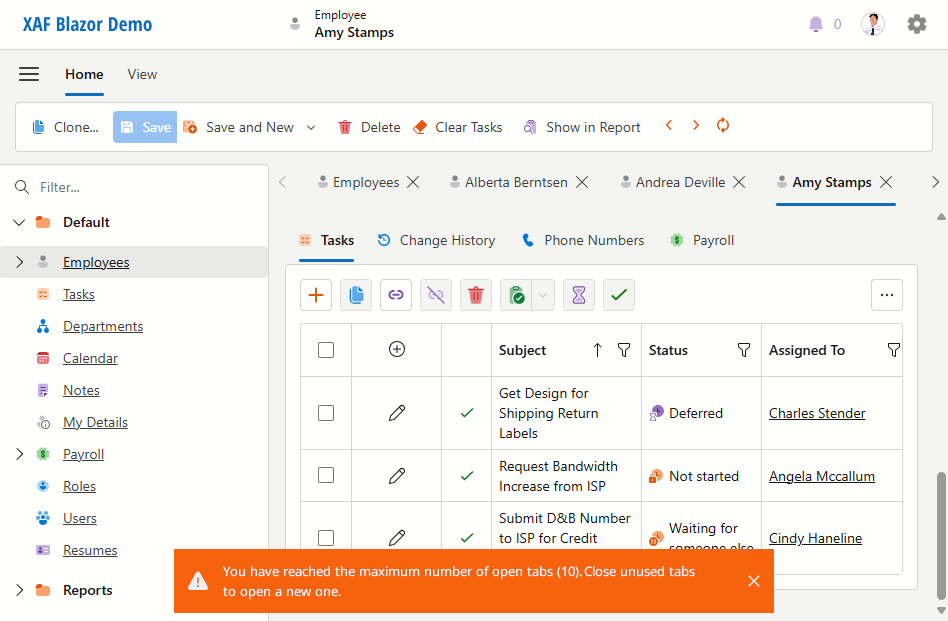

XAF ASP.NET Core Blazor applications use the DxTabs component in Tabbed MDI mode. The number of tabs is limited to 10 (default). If the application displays the maximum number of tabs, users cannot open a new tab and receive a corresponding notification.

You can use the following properties to change the tab count limit or modify the application’s behavior when the tab count exceeds the limit:

MaxTabLimit

Limits the number of opened tabs.

TabOverflowStrategy

Specifies how to handle overflowing tabs when the number of tabs reaches MaxTabLimit.

SolutionName.Blazor.Server\Program.cs

public static int Main(string[] args) {
    BlazorMdiShowViewStrategy.MaxTabLimit = 5;
    BlazorMdiShowViewStrategy.TabOverflowStrategy = TabOverflowStrategy.CloseLeastRecentTab;
    // ...

Inheritance

Object

ShowViewStrategyBase

DevExpress.ExpressApp.Blazor.BlazorShowViewStrategy

BlazorMdiShowViewStrategy
