Smart Paste

Apr 03, 2025
9 minutes to read

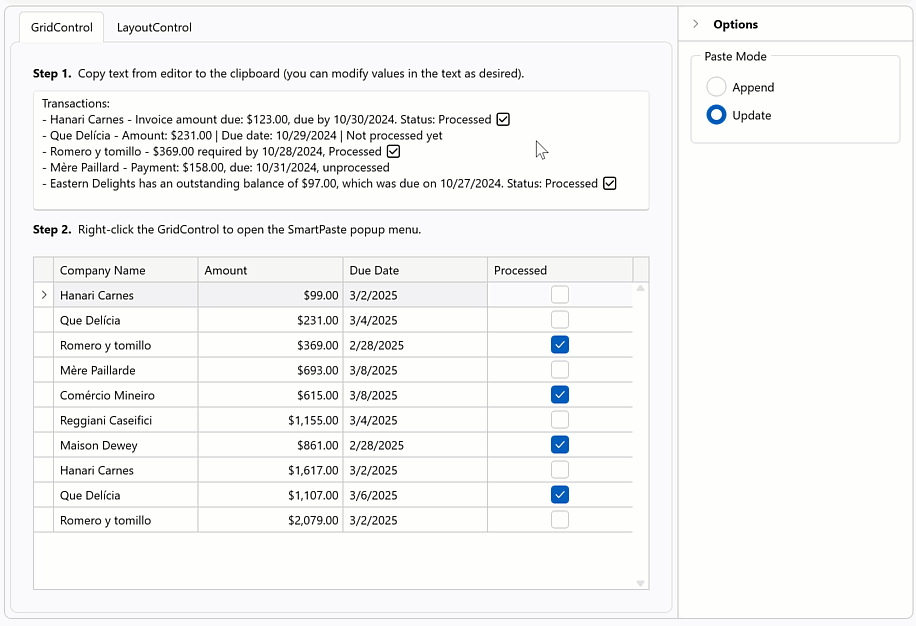

“SmartPaste” is an AI-powered feature that transforms the traditional copy-and-paste process into a smarter, more efficient tool. Designed to improve productivity, SmartPaste analyzes the content you copy and intelligently assigns the right values to the appropriate fields or row cells in the WPF Data Grid, TreeList, and LayoutControl-driven forms.

Smart Paste - WPF Data Grid and Layout Control, DevExpress

Run Demo: Smart Paste - Data Grid

Applies To

Data Grid

Supported views: TableView, CardView, TreeListView
Layout Control
TreeList

How It Works

DevExpress UI controls seamlessly integrate SmartPaste. When SmartPaste is activated, the “Smart Paste” command is automatically added to a control’s popup menu. You can also define a shortcut to invoke SmartPaste.

When you copy data from a source (such as a spreadsheet, document, or web page) and paste it into a Data Grid, TreeList, or LayoutControl-driven form, SmartPaste automatically interprets the content and maps the data to the correct data fields or cells.

Activate SmartPaste

Install DevExpress NuGet Packages

DevExpress.AIIntegration.Wpf
DevExpress.Wpf

Read the following help topics for information on how to obtain the DevExpress NuGet Feed and install DevExpress NuGet packages:

Register AI Client

See the following help topic for information on required NuGet packages and system requirements: Register an AI Client.

The following code snippet registers an Azure OpenAI client at application startup within the AIExtensionsContainerDesktop container:

C#
VB.NET

using Azure.AI.OpenAI;
using DevExpress.AIIntegration;
using DevExpress.Xpf.Core;
using Microsoft.Extensions.AI;
using System;
using System.Windows;

namespace AIAssistantApp {
    public partial class App : Application {
        static App() {
            CompatibilitySettings.UseLightweightThemes = true;
        }

        protected override void OnStartup(StartupEventArgs e) {
            base.OnStartup(e);
            ApplicationThemeHelper.ApplicationThemeName = "Win11Light";

            // For example, ModelId = "gpt-4o-mini"
            IChatClient azureChatClient = new Azure.AI.OpenAI.AzureOpenAIClient(new Uri(AzureOpenAIEndpoint),
                new System.ClientModel.ApiKeyCredential(AzureOpenAIKey)).GetChatClient(ModelId).AsIChatClient();
            AIExtensionsContainerDesktop.Default.RegisterChatClient(azureChatClient);
        }
    }
}

Imports Azure.AI.OpenAI
Imports DevExpress.AIIntegration
Imports DevExpress.Xpf.Core
Imports Microsoft.Extensions.AI
Imports System
Imports System.Windows

Namespace AIAssistantApp
    Partial Public Class App
        Inherits Application

        Shared Sub New()
            CompatibilitySettings.UseLightweightThemes = True
        End Sub

        Protected Overrides Sub OnStartup(ByVal e As StartupEventArgs)
            MyBase.OnStartup(e)
            ApplicationThemeHelper.ApplicationThemeName = "Win11Light"

            ' For example, ModelId = "gpt-4o-mini"
            Dim azureChatClient As IChatClient = New AzureOpenAIClient(New Uri(AzureOpenAIEndpoint),
                New System.ClientModel.ApiKeyCredential(AzureOpenAIKey)).GetChatClient(ModelId).AsIChatClient()
            AIExtensionsContainerDesktop.Default.RegisterChatClient(azureChatClient)
        End Sub
    End Class
End Namespace

Attach SmartPaste Behavior

Attach the SmartPasteBehavior to a control and describe items so that SmartPaste can assign the right values to appropriate items. In the context of SmartPaste, an item refers to a LayoutItem when working with a LayoutControl, or a GridColumn / TreeListColumn when working with a GridControl or TreeListControl.

Tip

You can also use a control’s smart tag menu to attach the SmartPasteBehavior at design time.

Example: Grid Control

The following example attaches the SmartPasteBehavior to a grid control. In this example, the SmartPaste operation updates cell values in the focused row.

Note

The TableView.PasteMode/TreeListView.PasteMode property must be set to PasteMode.Append or PasteMode.Update. Otherwise, the popup menu’s “Smart Paste” command is disabled.

XAML

xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
xmlns:dxmvvm="http://schemas.devexpress.com/winfx/2008/xaml/mvvm"
xmlns:dxai="http://schemas.devexpress.com/winfx/2008/xaml/ai"
xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"

<dxg:GridControl x:Name="gridControl" ItemsSource="{Binding Items}">
    <dxg:GridControl.View>
        <dxg:TableView PasteMode="Update"/>
    </dxg:GridControl.View>
    <dxmvvm:Interaction.Behaviors>
        <dxai:SmartPasteBehavior x:Name="smartPasteBehavior"/>
    </dxmvvm:Interaction.Behaviors>
    <dxg:GridColumn FieldName="OrderID"
                dxai:SmartPasteBehavior.ExcludeItem="True"/>
    <dxg:GridColumn FieldName="OrderDate"
                dxai:SmartPasteBehavior.ItemDescription="The date when an order was placed."/>
    <dxg:GridColumn FieldName="ShippingDate"
                dxai:SmartPasteBehavior.ItemDescription="The date when an order is scheduled to be shipped."/>
    <dxg:GridColumn FieldName="Shipped"
                dxai:SmartPasteBehavior.ItemDescription="Indicates whether an order has been shipped. If 1 use True. If -1 use False."/>
</dxg:GridControl>

Grid Control: Attach the SmartPaste Behavior in Code Behind

using DevExpress.AIIntegration.Wpf;
using DevExpress.Mvvm;
using DevExpress.Mvvm.UI.Interactivity;
using DevExpress.Xpf.Grid;
using System;
using System.ComponentModel;

public partial class MainWindow {
    BindingList<Order> ds;
    GridControl gridControl;
    SmartPasteBehavior smartPasteBehavior;
    public MainWindow() {
        InitializeComponent();
        ds = new BindingList<Order>() {
            new Order(){ OrderID = 14243684, OrderDate = DateTime.Today, ShippingDate = DateTime.Now.AddDays(4), Shipped = false}
        };

        smartPasteBehavior = new SmartPasteBehavior();
        gridControl = new GridControl() {
            ItemsSource = ds,
            View = new TableView() { PasteMode = DevExpress.Export.PasteMode.Update }
        };
        gridControl.Columns.Add(new GridColumn() { FieldName = "OrderID" });
        gridControl.Columns.Add(new GridColumn() { FieldName = "OrderDate" });
        gridControl.Columns.Add(new GridColumn() { FieldName = "ShippingDate" });
        gridControl.Columns.Add(new GridColumn() { FieldName = "Shipped" });

        Interaction.GetBehaviors(gridControl).Add(smartPasteBehavior);
        SmartPasteBehavior.SetExcludeItem(gridControl.Columns["OrderID"], true);
        SmartPasteBehavior.SetItemDescription(gridControl.Columns["OrderDate"], "The date when an order was placed.");
        SmartPasteBehavior.SetItemDescription(gridControl.Columns["ShippingDate"], "The date when an order is scheduled to be shipped.");
        SmartPasteBehavior.SetItemDescription(gridControl.Columns["Shipped"], "Indicates whether an order has been shipped. If 1 use True. If -1 use False.");

        mainGrid.Children.Add(gridControl);
    }
}

public class Order : BindableBase {
    public int OrderID { get; set; }
    public DateTime OrderDate { get; set; }
    public DateTime ShippingDate { get; set; }
    public bool Shipped { get; set; }
}

Example: Layout Control

This example attaches the SmartPasteBehavior to a Layout Control:

XAML

xmlns:dxe="http://schemas.devexpress.com/winfx/2008/xaml/editors"
xmlns:dxlc="http://schemas.devexpress.com/winfx/2008/xaml/layoutcontrol"
xmlns:dxmvvm="http://schemas.devexpress.com/winfx/2008/xaml/mvvm"
xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
xmlns:dxai="http://schemas.devexpress.com/winfx/2008/xaml/ai"

<dxlc:LayoutControl x:Name="layoutControl" Grid.Column="1" MaxWidth="800">
    <dxmvvm:Interaction.Behaviors>
        <dxai:SmartPasteBehavior x:Name="lcSmartPasteBehavior"/>
    </dxmvvm:Interaction.Behaviors>
    <dxlc:LayoutGroup Orientation="Vertical" HorizontalAlignment="Stretch" VerticalAlignment="Top">
        <dxlc:LayoutGroup View="GroupBox" Header="Billing Address" Orientation="Vertical">
            <dxlc:LayoutItem x:Name="addressLine1" Label="Line 1"
                        dxai:SmartPasteBehavior.ItemDescription="The primary address line, typically containing the street number and name (for example, 123 Main St). Supports both letters and numbers.">
                <dxe:TextEdit/>
            </dxlc:LayoutItem>
            <dxlc:LayoutItem x:Name="addressLine2" Label="Line 2"
                        dxai:SmartPasteBehavior.ItemDescription="An optional address line that may include an apartment, suite, or unit number (for example, Apt 4B).Supports both letters and numbers.">
                <dxe:TextEdit/>
            </dxlc:LayoutItem>
            <dxlc:LayoutItem x:Name="addressCity" Label="City">
                <dxe:TextEdit/>
            </dxlc:LayoutItem>
            <dxlc:LayoutGroup View="Group" Orientation="Horizontal">
                <dxlc:LayoutItem x:Name="addressRegion" Label="State/Province/Region">
                    <dxe:TextEdit/>
                </dxlc:LayoutItem>
                <dxlc:LayoutItem x:Name="addressZip" Label="ZIP">
                    <dxe:TextEdit/>
                </dxlc:LayoutItem>
            </dxlc:LayoutGroup>
        </dxlc:LayoutGroup>
    </dxlc:LayoutGroup>
</dxlc:LayoutControl>

Layout Control: Attach the SmartPaste Behavior in Code Behind

using DevExpress.AIIntegration.Wpf;
using DevExpress.Mvvm.UI.Interactivity;
using DevExpress.Xpf.Editors;
using DevExpress.Xpf.LayoutControl;

namespace DXSmartPaste {
    public partial class MainWindow {
        LayoutControl layoutControl;
        public MainWindow() {
            InitializeComponent();
            layoutControl = new LayoutControl();
            SmartPasteBehavior smartPasteBehavior = new SmartPasteBehavior();
            Interaction.GetBehaviors(layoutControl).Add(smartPasteBehavior);

            LayoutGroup addressGroup = new LayoutGroup() {
                View = LayoutGroupView.GroupBox,
                Header = "Billing Address",
            };
            LayoutItem addressLine1LayoutItem = new LayoutItem() { Label = "Line 1", Content = new TextEdit() };
            LayoutItem addressLine2LayoutItem = new LayoutItem() { Label = "Line 2", Content = new TextEdit() };
            addressGroup.Children.Add(addressLine1LayoutItem);
            addressGroup.Children.Add(addressLine2LayoutItem);

            LayoutGroup personalInfoGroup = new LayoutGroup() {
                View = LayoutGroupView.GroupBox,
                Header = "Personal Info"
            };
            LayoutItem nameLayoutItem = new LayoutItem() { Label = "Name", Content = new TextEdit() };
            LayoutItem lastNameLayoutItem = new LayoutItem() { Label = "Last Name", Content = new TextEdit() };
            personalInfoGroup.Children.Add(nameLayoutItem);
            personalInfoGroup.Children.Add(lastNameLayoutItem);

            layoutControl.Children.Add(addressGroup);
            layoutControl.Children.Add(personalInfoGroup);

            SmartPasteBehavior.SetItemDescription(addressLine1LayoutItem,
                    "The primary address line, typically containing the street number and name (for example, 123 Main St). Supports both letters and numbers.");
            SmartPasteBehavior.SetItemDescription(addressLine2LayoutItem,
                    "An optional address line that may include an apartment, suite, or unit number (for example, Apt 4B).Supports both letters and numbers.");
            SmartPasteBehavior.SetExcludeItem(personalInfoGroup, true);

            mainGrid.Children.Add(layoutControl);
        }
    }
}

SmartPaste Settings

Item Descriptions

Note

Item descriptions are optional if a layout item’s Label or a column’s FieldName property is set to a non-empty string. Although SmartPaste attempts to determine the right value for an item based on the item’s name or field name, we recommend that you also describe items for improved accuracy.

Use the ItemDescription attached property or SetItemDescription method to specify a string that describes the expected content and/or data format for the item.

<dxg:GridColumn FieldName="ShippingDate"
                dxai:SmartPasteBehavior.ItemDescription="The date when an order is scheduled to be shipped."/>

When pasting into data fields of basic data types (such as Boolean, date-time, numeric, string), SmartPaste automatically appends default formatting prompts to item descriptions. You can use item descriptions to specify custom formatting prompts as needed.

For example, if your data source designates Boolean values as 1 and -1, you can specify the following item description: “If 1 use True. If -1 use False.”

<dxg:GridColumn FieldName="Shipped"
            dxai:SmartPasteBehavior.ItemDescription="If 1 use True. If -1 use False."/>

Excluded Items

Use the ExcludeItem attached property or SetExcludeItem method to exclude a specific item from SmartPaste. This allows you to exclude columns or layout items from being affected by SmartPaste, ensuring that they remain unchanged.

<dxg:GridColumn FieldName="OrderID"
                dxai:SmartPasteBehavior.ExcludeItem="True"/>

Tip

In the Layout Control, apply the ExcludedItem to a LayoutGroup to exclude all items within the group:

XAML

<dxlc:LayoutGroup View="GroupBox"
                  dxai:SmartPasteBehavior.ExcludeItem="True">
...
</dxlc:LayoutGroup>

SmartPaste API

Method	Description
SmartPasteBehavior.SmartPasteAsync()	Assigns the right values (from the clipboard) to the appropriate items.
SmartPasteBehavior.SmartPasteAsync(string inputText)	Assigns the right values from the specified string to the appropriate items.

Invoke SmartPaste Using a Shortcut

The following code snippet invokes SmartPaste when a user presses Ctrl+P:

<dxmvvm:Interaction.Behaviors>
    <dxai:SmartPasteBehavior x:Name="smartPasteBehavior"/>
    <dxmvvm:KeyToCommand KeyGesture="CTRL+P" Command="{Binding SmartPasteCommand, ElementName=smartPasteBehavior}"/>
</dxmvvm:Interaction.Behaviors>

Handle SmartPaste Operations

You can validate a SmartPaste result to ensure that the data adheres to predefined rules or formats required by your application. Use built-in APIs of DevExpress controls to analyze, and if necessary, modify the data returned by SmartPaste.

Grid and TreeList

The following events allow you to cancel a SmartPaste operation based on a specific condition or to modify the result base on your preferences:

Refer to the following help topic for additional information and examples: Paste Operations.

Layout Control

For data editors displayed within layout items, handle the LayoutControl.SmartPasteEditValueChanging event to analyze and modify SmartPaste results, or cancel the operation.

Data Grid, TreeList, and Layout Control Specifics

SmartPaste in Data Grid and TreeList

Supported Views

View Requirements

Clipboard paste operations must be allowed. The View’s PasteMode property should be set to PasteMode.Append or PasteMode.Update.

Column Requirements

The column must be visible. The column’s Visible property must be set to true.
The column must not be read-only.
Multi-select data editors (for example, ComboBoxEdit and LookUpEdit in token mode) do not support SmartPaste.

Value Conversion

Values are pasted into grid cells as strings. The grid automatically converts string values to appropriate data types, which include:

Numeric Types: int, uint, short, ushort, float, double, decimal, etc.
Date-Time Types: DateTime, DateOnly, TimeOnly.
Boolean

Important

SmartPaste does not support nullable types.

Master-Detail Mode

Smart Paste is not supported in the Master-Detail mode (when DataControlDetailDescriptor is used).

SmartPaste in Layout Control

Layout Item and Layout Group Requirements

The layout item must contain a data editor (for example, TextEdit, DateEdit, SpinEdit, etc.). The editor must be visible and enabled. Multi-select data editors (for example, ComboBoxEdit and LookUpEdit in token mode) do not support SmartPaste.
The layout item must have the specified Label and/or ItemDescription.
The layout item must be enabled. The layout item’s IsEnabled property is set to true.
The layout item must be visible. The layout item’s IsVisible property is set to true.
The DataLayoutItem must not be read-only.
The layout group must be visible, expanded, and enabled.

Layout Customization Mode

SmartPaste is disabled in Customization Mode.

Controls

FREE UTILITIES

Controls and Extensions

FREE UTILITIES

Controls

FREE UTILITIES

Controls and Extensions

FREE UTILITIES

Applies To

How It Works

Activate SmartPaste

Install DevExpress NuGet Packages

Register AI Client

Attach SmartPaste Behavior

Example: Grid Control

Example: Layout Control

SmartPaste Settings

Item Descriptions

Excluded Items

SmartPaste API

Invoke SmartPaste Using a Shortcut

Handle SmartPaste Operations

Grid and TreeList

Layout Control

Data Grid, TreeList, and Layout Control Specifics

SmartPaste in Data Grid and TreeList

SmartPaste in Layout Control
