AI Chat Control

• Dec 08, 2025
• 11 minutes to read

Note

The DevExpress AI Chat Control (AIChatControl) can only be used in WPF applications that target the .NET 8+ and newer frameworks.

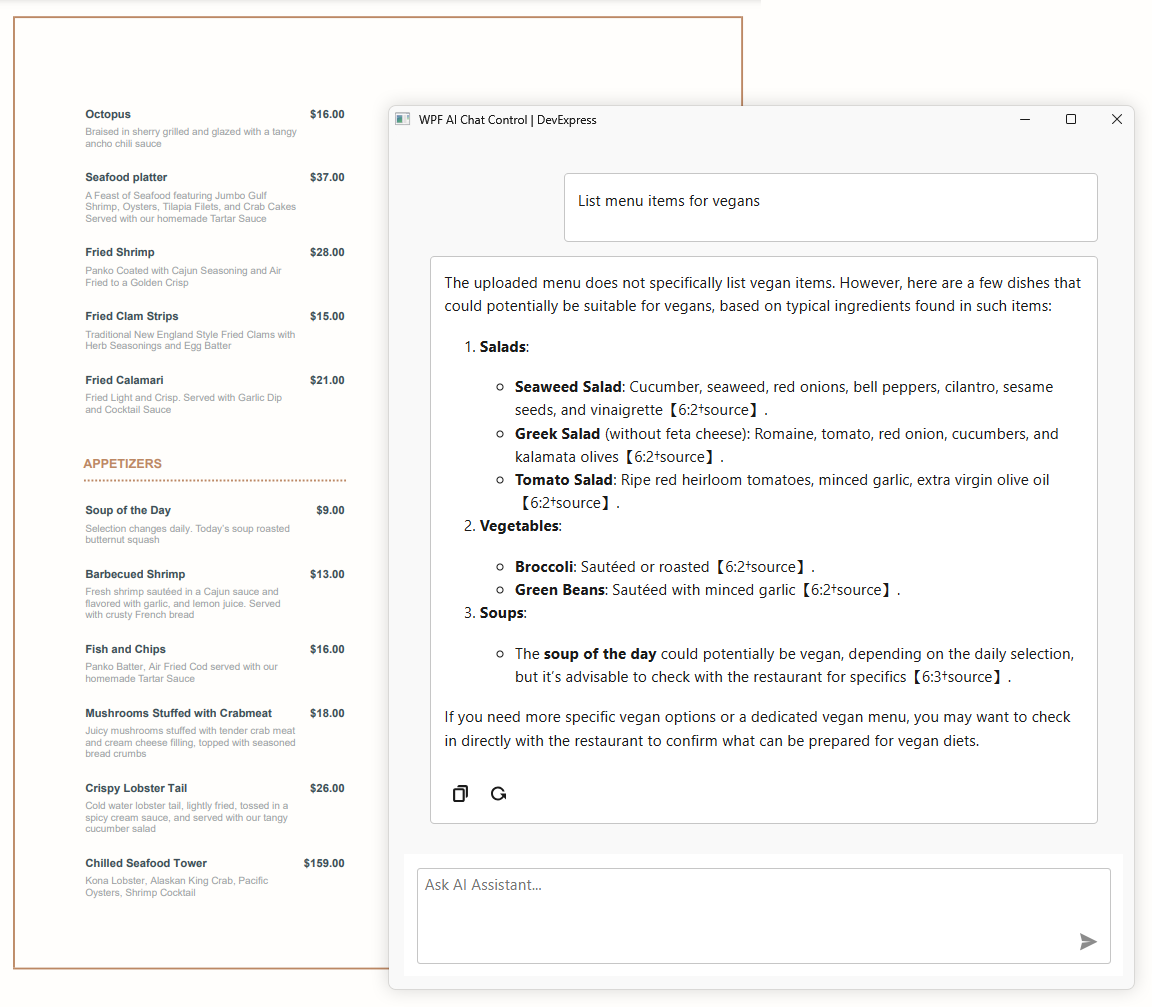

The AI Chat Control allows you to embed an interactive, Copilot-inspired chat interface in your WPF application. It uses BlazorWebView to host the DevExpress Blazor AI Chat component (DxAIChat).

View Example: AI Chat

Getting Started

To use the AIChatControl:

Install DevExpress.AIIntegration.Wpf.Chat.

See the following help topics for information on how to obtain the DevExpress NuGet Feed and install DevExpress NuGet packages:

• Choose Between Offline and Online DevExpress NuGet Feeds
• Install NuGet Packages in Visual Studio, VS Code, and Rider

Change Project SDK

Update the project SDK to Microsoft.NET.Sdk.Razor:

.csproj

<Project Sdk="Microsoft.NET.Sdk.Razor">

Register AI Client

See the following help topic for information on required NuGet packages and system requirements: Register an AI Client.

The following code snippet registers an Azure OpenAI client at application startup within the AIExtensionsContainerDesktop container:

C#

using Azure.AI.OpenAI;
using DevExpress.AIIntegration;
using DevExpress.Xpf.Core;
using Microsoft.Extensions.AI;
using System;
using System.Windows;

namespace AIAssistantApp {
    public partial class App : Application {
        static App() {
            CompatibilitySettings.UseLightweightThemes = true;
        }

        protected override void OnStartup(StartupEventArgs e) {
            base.OnStartup(e);
            ApplicationThemeHelper.ApplicationThemeName = "Win11Light";

            // For example, ModelId = "gpt-4o-mini"
            IChatClient azureChatClient = new Azure.AI.OpenAI.AzureOpenAIClient(new Uri(AzureOpenAIEndpoint),
                new System.ClientModel.ApiKeyCredential(AzureOpenAIKey)).GetChatClient(ModelId).AsIChatClient();
            AIExtensionsContainerDesktop.Default.RegisterChatClient(azureChatClient);
        }
    }
}

VB.NET

Imports Azure.AI.OpenAI
Imports DevExpress.AIIntegration
Imports DevExpress.Xpf.Core
Imports Microsoft.Extensions.AI
Imports System
Imports System.Windows

Namespace AIAssistantApp
    Partial Public Class App
        Inherits Application

        Shared Sub New()
            CompatibilitySettings.UseLightweightThemes = True
        End Sub

        Protected Overrides Sub OnStartup(ByVal e As StartupEventArgs)
            MyBase.OnStartup(e)
            ApplicationThemeHelper.ApplicationThemeName = "Win11Light"

            ' For example, ModelId = "gpt-4o-mini"
            Dim azureChatClient As IChatClient = New AzureOpenAIClient(New Uri(AzureOpenAIEndpoint),
                New System.ClientModel.ApiKeyCredential(AzureOpenAIKey)).GetChatClient(ModelId).AsIChatClient()
            AIExtensionsContainerDesktop.Default.RegisterChatClient(azureChatClient)
        End Sub
    End Class
End Namespace

Create AI Chat Control

Note

The AI Chat Control does not support design-time rendering.

The following code snippet creates the AIChatControl with default settings:

XAML

<dx:ThemedWindow
    x:Class="DXApplication3.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
    xmlns:dxaichat="http://schemas.devexpress.com/winfx/2008/xaml/aichat"
    Title="MainWindow" Height="800" Width="1000">
    <Grid>
        <dxaichat:AIChatControl
            x:Name="aiChatControl"
            HorizontalAlignment="Stretch"
            VerticalAlignment="Stretch"
            Margin="10">
        </dxaichat:AIChatControl>
    </Grid>
</dx:ThemedWindow>

CLI Project Templates

Use AI Chat Application and AI Chat (RAG) Application CLI project templates to create a chat application that integrates the AI Chat Control. Both templates support .NET 8 / .NET 9 / .NET10 and integrate the DevExpress MCP Server for DevExpress-specific guidance.

AI Chat Application

The AI Chat Application template creates a WPF chat app that integrates the AI Chat Control.

dx.wpf.aichat

Parameter: --ai-provider | Values: azureopenai, openai, ollama

Creates a WPF chat app that integrates the DevExpress AI Chat Control. You can optionally enable DevExpress-specific guidance by adding an mcp.json configuration file to integrate the DevExpress MCP Server.

Supported AI providers:

• Azure OpenAI
• OpenAI
• Ollama

AI Chat (RAG) Application

The AI Chat (RAG) Application template creates a desktop WPF application with the AI Chat Control and built-in Retrieval-Augmented Generation (RAG) for document-grounded conversations.

dx.wpf.aichatrag

Parameter: --ai-provider | Values: azureopenai, openai, ollama

Parameter: --vectorstore | Values: sqlite, inmemory

Creates a desktop WPF application with the DevExpress AI Chat Control and built-in Retrieval-Augmented Generation (RAG) for document-grounded conversations:

• Uses local document data for context-aware answers.
• Scans the user’s Documents folder and indexes PDF, DOCX, TXT, RTF, and HTML files.
• Extracts, embeds, and semantically searches document text.
• Stores vectors in In-Memory (rebuilds each run) or SQLite (persistent database).
• Merges retrieved content with user prompts to improve accuracy.
• Optionally integrates the DevExpress MCP Server for DevExpress-specific guidance.

Streaming

The AI Chat Control can display responses from the AI assistant as they are generated in a natural, conversational flow (rather than waiting for the entire message to complete before showing it to the user). Enable the UseStreaming setting to activate this feature:

XAML

<dxaichat:AIChatControl
    x:Name="aiChatControl"
    UseStreaming="True"
    HorizontalAlignment="Stretch"
    VerticalAlignment="Stretch"
    Margin="10">
</dxaichat:AIChatControl>

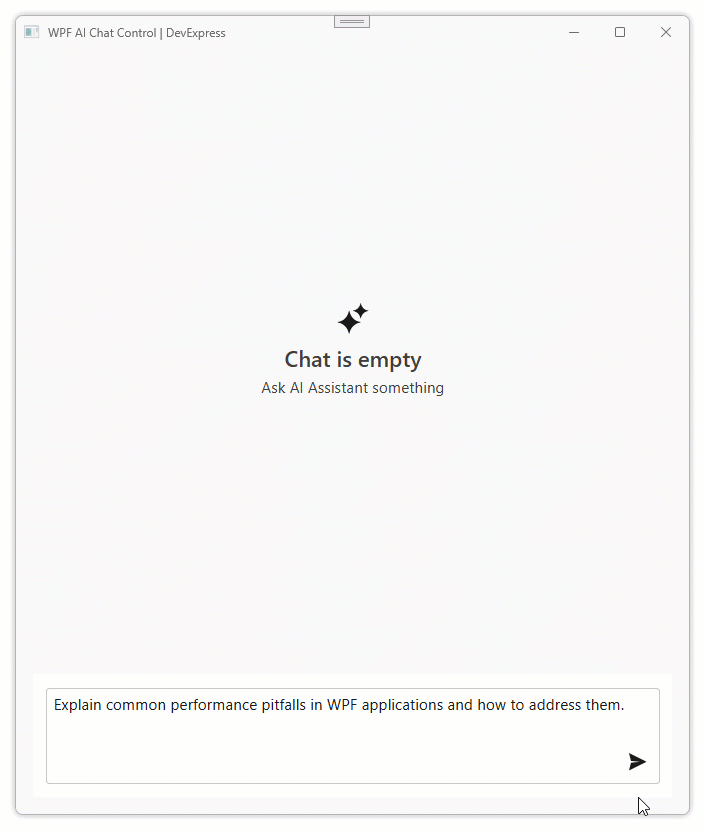

Play the following animation to see the result:

Markdown Message Rendering

To enable Markdown message rendering:

1. Set the ContentFormat property to Markdown to receive responses as Markdown.
2. Handle the MarkdownConvert event to convert markdown text into HTML and make responses more readable, structured, and visually appealing.

The following example enables Markdown message rendering. The example uses the Markdig Markdown processing library to convert Markdown text into HTML.

XAML

<dxaichat:AIChatControl
    x:Name="aiChatControl"
    UseStreaming="True"
    ContentFormat="Markdown"
    MarkdownConvert="AiChatControl_MarkdownConvert"
    HorizontalAlignment="Stretch"
    VerticalAlignment="Stretch"
    Margin="10">
</dxaichat:AIChatControl>

using DevExpress.Xpf.Core;
using DevExpress.AIIntegration.Blazor.Chat.WebView;
using Microsoft.AspNetCore.Components;
using Markdig;

namespace DXApplication3 {
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : ThemedWindow {
        public MainWindow() {
            InitializeComponent();
        }

        void AiChatControl_MarkdownConvert(object sender, AIChatControlMarkdownConvertEventArgs e) {
            e.HtmlText = (MarkupString)Markdown.ToHtml(e.MarkdownText);
        }
    }
}

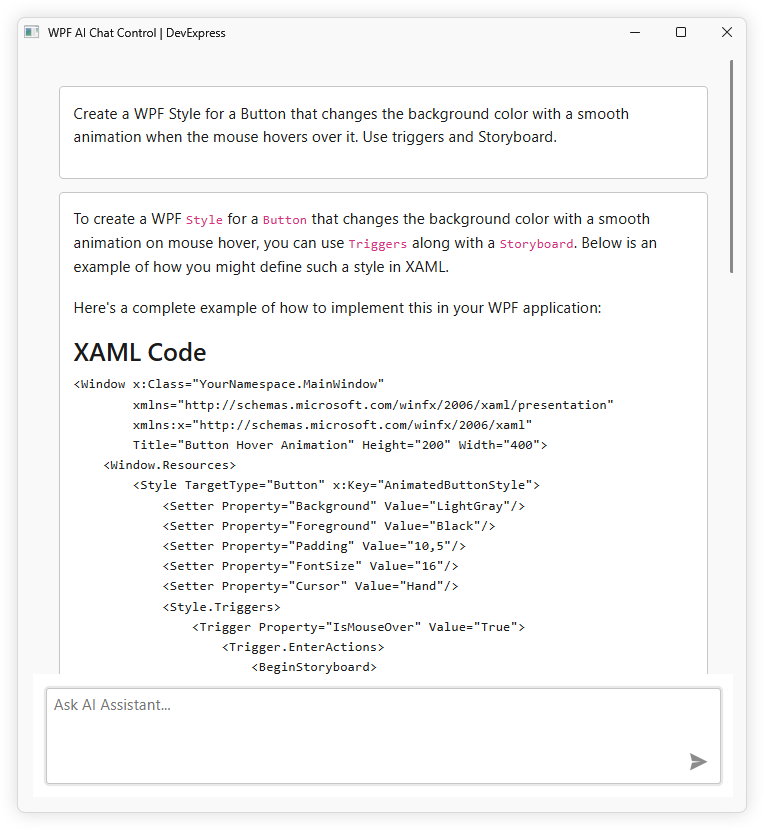

The following screenshot shows the result:

File Attachments

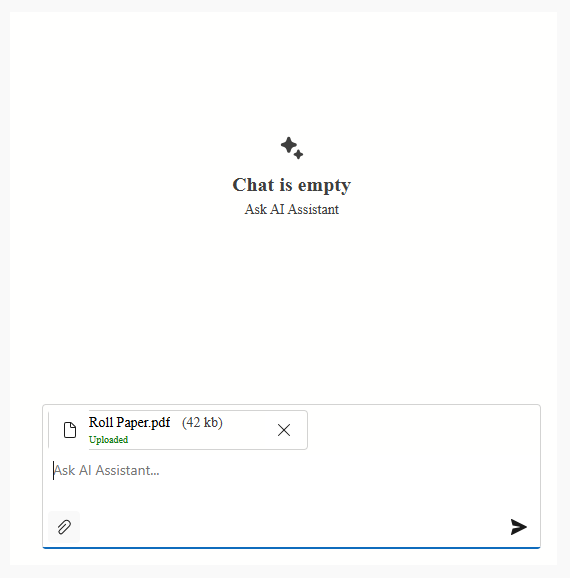

Users can now attach files directly to their chat messages. The AI analyzes document content (such as text files, PDFs, images) and delivers more context-aware responses.

To activate file upload:

1. Enable the FileUploadEnabled property to allow users to attach files.
2. Configure additional settings based on your project requirements (the maximum file size, allowed file types/extensions, the maximum number of files that users can attach to a message).

XAML

xmlns:dxaichat="http://schemas.devexpress.com/winfx/2008/xaml/aichat"
xmlns:chat="clr-namespace:DevExpress.AIIntegration.Blazor.Chat;assembly=DevExpress.AIIntegration.Blazor.Chat.v25.1"
xmlns:system="clr-namespace:System;assembly=mscorlib"

<dxaichat:AIChatControl
    x:Name="aiChatControl"
    FileUploadEnabled="True"
    UseStreaming="True"
    HorizontalAlignment="Stretch"
    VerticalAlignment="Stretch"
    Margin="10">
    <dxaichat:AIChatControl.FileUploadSettings>
        <chat:DxAIChatFileUploadSettings MaxFileSize="5000000" MaxFileCount="5">
            <chat:DxAIChatFileUploadSettings.AllowedFileExtensions>
                <system:String>.png</system:String>
                <system:String>.pdf</system:String>
                <system:String>.txt</system:String>
            </chat:DxAIChatFileUploadSettings.AllowedFileExtensions>
            <chat:DxAIChatFileUploadSettings.FileTypeFilter>
                <system:String>image/png</system:String>
                <system:String>application/pdf</system:String>
                <system:String>text/plain</system:String>
            </chat:DxAIChatFileUploadSettings.FileTypeFilter>
        </chat:DxAIChatFileUploadSettings>
    </dxaichat:AIChatControl.FileUploadSettings>
</dxaichat:AIChatControl>

Tip

See the following article for more information on MIME types (FileTypeFilter): Common Media Types.

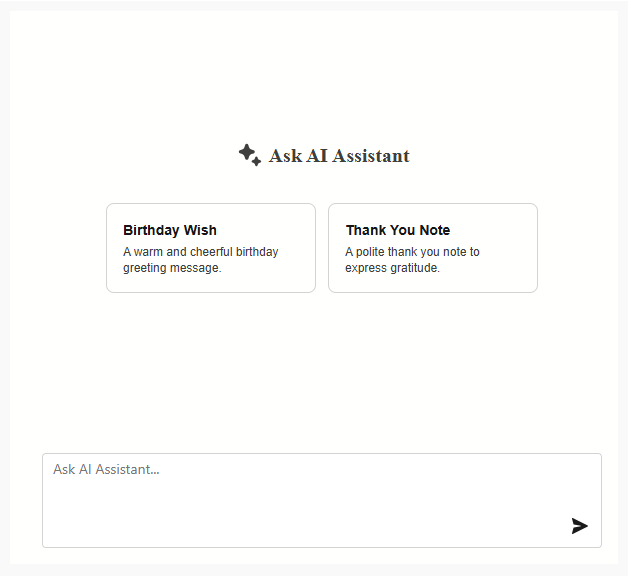

Prompt Suggestions

To help users get started or explore new possibilities, the AI Chat Control can display prompt suggestions.

Use the SetPromptSuggestions method to supply intelligent suggestions:

XAML

<dxaichat:AIChatControl>
    <dxaichat:AIChatControl.PromptSuggestions>
        <chat:DxAIChatPromptSuggestion
            Title="Birthday Wish"
            Text="A warm and cheerful birthday greeting message."
            PromptMessage="Write a heartfelt birthday message for a close friend." />
        <chat:DxAIChatPromptSuggestion
            Title="Thank You Note"
            Text="A polite thank you note to express gratitude."
            PromptMessage="Compose a short thank you note to a colleague who helped with a project." />
    </dxaichat:AIChatControl.PromptSuggestions>
</dxaichat:AIChatControl>

Handle Chat Messages

To manually process messages sent to an AI service, handle the MessageSent event. For example, you can manually call the AI client or service of choice and return its responses to the chat. The following example adds responses to user questions:

XAML

<dxaichat:AIChatControl x:Name="aiChatControl"
                MessageSent="AiChatControl_MessageSent"
                HorizontalAlignment="Stretch"
                VerticalAlignment="Stretch"
                Margin="10">
</dxaichat:AIChatControl>

async void AiChatControl_MessageSent(object sender, AIChatControlMessageSentEventArgs e) {
    await e.SendMessage($"Processed: {e.Content}", ChatRole.Assistant);
}

Save and Load Chat History

Use the following methods to manage chat history:

• SaveMessages – Returns an IEnumerable<ChatMessage> collection of messages.
• LoadMessages – Loads messages from the specified IEnumerable<ChatMessage> collection to the AI Chat Control and refreshes the control.

The following example saves/loads chat history when the user clicks the Save/Load button:

public partial class MainWindow : ThemedWindow {
    List<BlazorChatMessage> chatHistory;

    public MainWindow() {
        InitializeComponent();
    }

    void ButtonSave_Click(object sender, EventArgs e) {
        chatHistory = (List<BlazorChatMessage>)aiChatControl.SaveMessages();
    }

    void ButtonLoad_Click(object sender, EventArgs e) {
        if(chatHistory != null)
            aiChatControl.LoadMessages(chatHistory);
    }
}

Customize Chat UI and Appearance

The AIChatControl supports appearance customization through Razor-based templates. You can customize chat messages, errors, the empty message area, and text displayed when the chat has no message history.

Message Templates

Use the following properties to customize the chat message container (including paddings and inner content alignment) or the message content:

• AIChatControl.MessageTemplate
• AIChatControl.MessageContentTemplate

Note

The AIChatControl.MessageTemplate property takes priority over the AIChatControl.MessageContentTemplate property if both templates are specified.

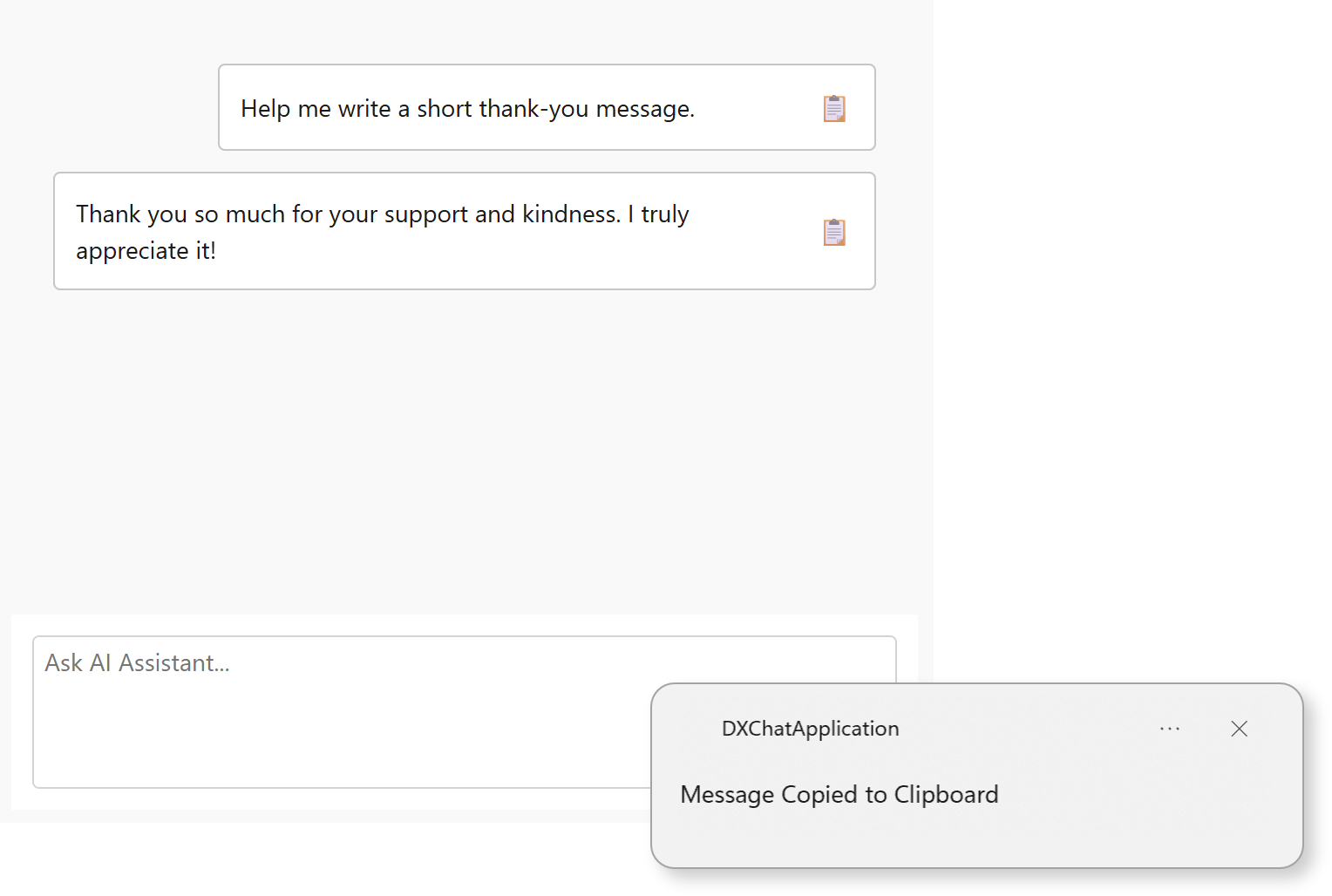

The following example displays a copy icon within chat messages. When a user clicks the icon, the message text is copied to the Clipboard, and a confirmation toast notification is displayed.

using DevExpress.AIIntegration.Blazor.Chat;
using DevExpress.Mvvm.UI;
using Microsoft.AspNetCore.Components;
using System.Windows;

namespace DXChatApplication {
    public partial class MainWindow {
        RenderFragment<BlazorChatMessage> MyMessageTemplate;
        readonly NotificationService notificationService;

        public MainWindow() {
            InitializeComponent();

            // Configure DevExpress NotificationService.
            notificationService = new NotificationService() {
                ApplicationId = "DXChatApplication",
                ApplicationName = "DXChatApplication",
                PredefinedNotificationTemplate = NotificationTemplate.LongText
            };

            MyMessageTemplate = message => builder => {
                builder.OpenComponent<Message>(0);
                builder.AddAttribute(1, "message", message);
                builder.AddAttribute(2, "OnButtonClick", EventCallback.Factory.Create<BlazorChatMessage>(this, CustomButtonClick));
                builder.CloseComponent();
            };

            aiChatControl.MessageTemplate = MyMessageTemplate;
        }

        void CustomButtonClick(BlazorChatMessage message) {
            Dispatcher.Invoke(() => {
                try { Clipboard.SetText(message.Content ?? string.Empty); } catch { }
                var notification = notificationService.CreatePredefinedNotification("Message Copied to Clipboard", message.Content, null);
                _ = notification.ShowAsync();
            });
        }
    }
}

The Message.razor file:

@using Microsoft.AspNetCore.Components.Web
@using DevExpress.AIIntegration.Blazor.Chat

<style>
    .demo-chat-content {
        display: flex;
        justify-content: space-between;
        align-items: center;
        gap: 8px;
        flex-direction: row;
    }

    .copy-icon {
        cursor: pointer;
        font-size: 16px;
        color: #555;
        transition: color 0.2s ease-in-out;
    }
</style>

<div class="@GetMessageClasses(message)">
    @if (message.Typing)
    {
        <span>Loading...</span>
    }
    else
    {
        <div class="demo-chat-content">
            <span>@message.Content</span>
            <span class="copy-icon" title="Copy" @onclick="OnButtonClicked">📋</span>
        </div>
    }
</div>

@code {
    [Parameter]
    public BlazorChatMessage message { get; set; }

    [Parameter]
    public EventCallback<BlazorChatMessage> OnButtonClick { get; set; }

    string GetMessageClasses(BlazorChatMessage message) {
        switch (message.Role) {
            case ChatMessageRole.Assistant:
                return "dxbl-chatui-message dxbl-chatui-message-assistant";
            case ChatMessageRole.User:
                return "dxbl-chatui-message dxbl-chatui-message-user";
            case ChatMessageRole.Error:
                return "dxbl-chatui-message dxbl-chatui-message-error";
            default:
                return "dxbl-chatui-message";
        }
    }

    async Task OnButtonClicked() {
        if (OnButtonClick.HasDelegate)
            await OnButtonClick.InvokeAsync(message);
    }
}

Empty Text and Empty Message Area

You can modify the message or empty area displayed when a chat has yet to start.

Use one of the following properties:

• EmptyStateText - Specifies the empty area message.
• EmptyStateTemplate - Specifies a custom template (RenderFragment) to customize the entire area.

Note

If both EmptyStateText and EmptyStateTemplate properties are set, the chat control uses the EmptyStateTemplate and ignores the EmptyStateText.

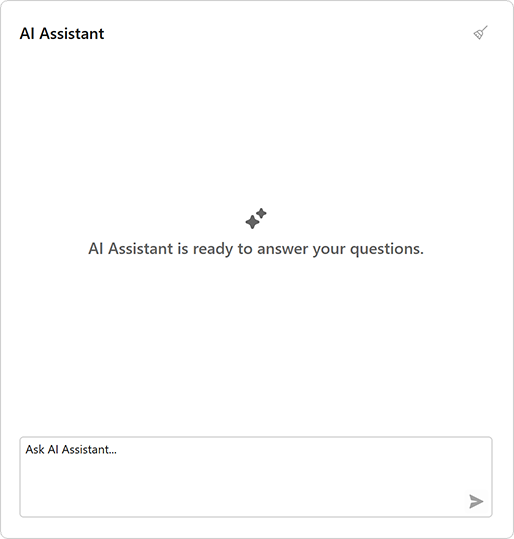

Customize Empty Text

XAML

<dxaichat:AIChatControl x:Name="aiChatControl"
                EmptyStateText="AI Assistant is ready to answer your questions."
                HorizontalAlignment="Stretch"
                VerticalAlignment="Stretch"
                Margin="10">
</dxaichat:AIChatControl>

Customize Empty Message Area

using Microsoft.AspNetCore.Components;

public MainWindow() {
    InitializeComponent();
    aiChatControl.EmptyStateTemplate = MyEmptyStateTemplate;
}

RenderFragment MyEmptyStateTemplate = builder => {
    builder.OpenComponent<EmptyArea>(0);
    builder.CloseComponent();
};

The EmptyArea.razor file:

<style>
    .emptyarea-box {
        display: flex;
        flex-direction: column;
        align-items: center;
        justify-content: center;
        height: 100%;
        color: #666;
        font-family: sans-serif;
        text-align: center;
        padding: 40px;
    }
    .emptyarea-icon {
        font-size: 48px;
        margin-bottom: 16px;
    }
    .emptyarea-title {
        font-size: 18px;
        font-weight: 500;
    }
    .emptyarea-description {
        font-size: 14px;
        margin-top: 8px;
    }
</style>

<div class="emptyarea-box">
    <div class="emptyarea-icon">
        💬
    </div>
    <div class="emptyarea-title">
        No messages yet
    </div>
    <div class="emptyarea-description">
        Start the conversation by sending a message.
    </div>
</div>

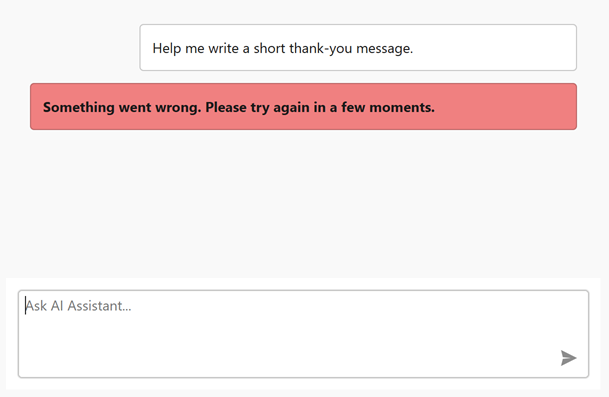

Error Message Background

Use the AIChatControl.ErrorMessageBackground property to specify the background color of error messages:

XAML

<dxaichat:AIChatControl x:Name="aiChatControl"
                ErrorMessageBackground="LightCoral"
                Margin="10">
</dxaichat:AIChatControl>

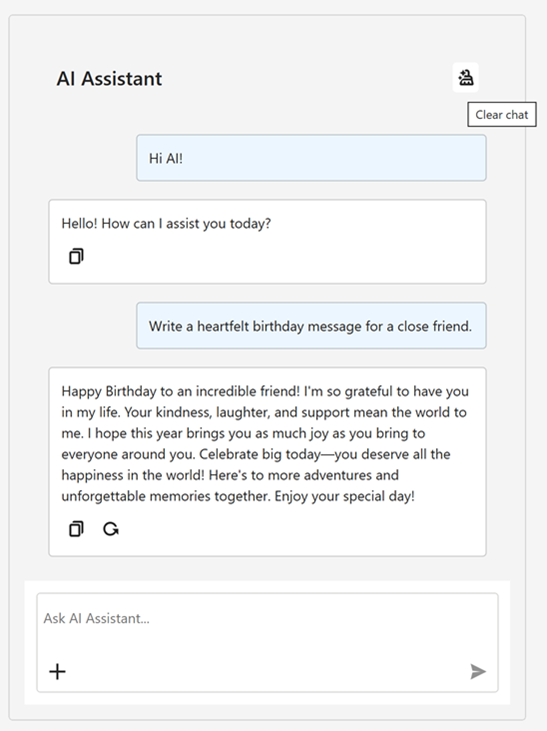

Title and Clear Chat Button

The AIChatControl can display the header. The header contains a customizable chat title and the Clear Chat button (removes all messages from the conversation history, except for system messages).

Use the AIChatControl.ShowHeader option to display the chat header. The AIChatControl.HeaderText property specifies the chat title.

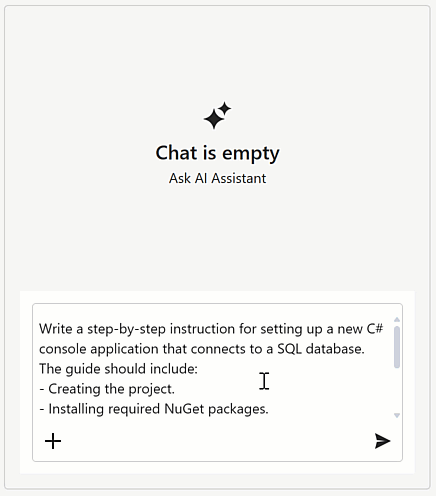

Resize Input Area

Enable the AIChatControl.AllowResizeInput option to allow users resize the input area. Users can drag the top edge up to enlarge the input area or down to display a more detailed chat history.

Resources

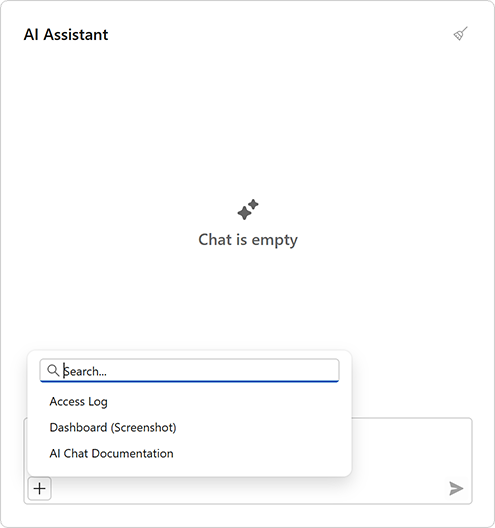

The AIChatControl can access external or dynamically generated data through resources. A resource is an instance of the AIChatResource class that supplies text or binary content to the AI model at request time.

Resources extend the chat context with additional input (for example, local documents, logs, or images). The AI model uses this data to generate more accurate and context-aware responses.

After you assign resources, the AIChatControl displays the “Attach Context” (+) button. Users can select one or more resources to include in the chat request.

See the following help topic for more information: Chat Resources.

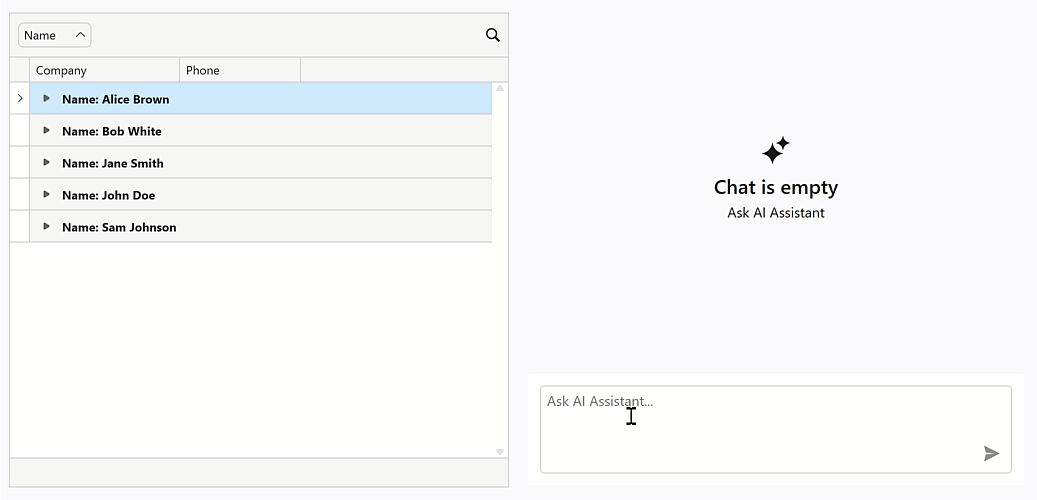

Tool Calling

AI Tool Calling API integrates application logic with natural language interaction. It allows the AI to analyze requests, select appropriate tools, resolve target instances, and invoke application methods at runtime in response to user prompts. Developers expose functionality as AI tools by annotating methods with metadata attributes. Each tool describes its purpose, input parameters, and (optionally) the target object on which it operates.

Run Demo: AI Tool Calling

See the following help topics for more information:

• AI Tool Calling
• AIToolsBehavior

Create an Assistant That Chats Using Your Own Data

When integrating the AI Chat Control with the OpenAI Assistant API, you can configure it to retain and reference a specific context (for example, a text file or a PDF document). By providing a supplementary document as a context source, the assistant is primed with background information. OpenAI automatically parses the document and searches through it to retrieve relevant content to better respond to user queries.

See the following help topic for more information: Chat with Your Own Data.

Manage Multiple Chat Client Services

The WPF AIChatControl supports multiple AI services in a single application, which enables you to:

• Run several independent chat UIs side by side powered by different AI services.
• Use one chat UI and dynamically switch between AI services or AI agents.

See the following help topic for more information: Manage Multiple Chat Clients.

Troubleshooting

Deploy to Windows Server

When deploying WPF applications with the AI Chat Control to Windows Server or earlier versions of Windows, you may encounter the following error:

Warning

Microsoft.Web.WebView2.Core.WebView2RuntimeNotFoundException: “Could not find a compatible WebView2 Runtime installation to host WebViews.”

The WPF AI Chat Control leverages BlazorWebView to reuse the DevExpress Blazor DxAIChat component. This integration requires the WebView2 runtime to be installed on the target machine.

Windows 11 includes WebView2. However, earlier versions of Windows and Windows Server may not have it pre-installed. To ensure compatibility,refer to the following help topic for information on distributing the WebView2 runtime with your WPF application to operating systems other than Windows 11: Distribute your app and the WebView2 Runtime.
