EffectPropertiesBase.OuterShadow Property

Gets or sets an outer shadow effect. The shadow is applied outside shape edges.

Namespace: DevExpress.Docs.Presentation

Assembly: DevExpress.Docs.Presentation.v25.2.dll

Declaration

C#

public OuterShadowEffect OuterShadow { get; set; }

VB.NET

Public Property OuterShadow As OuterShadowEffect

Property Value

Type	Description
OuterShadowEffect	An OuterShadowEffect object that contains outer shadow effect options.

Remarks

The OuterShadowEffect class exposes properties that you can use to configure the outer shadow effect:

BlurRadius

Specifies the outer shadow’s blur radius.

Angle

Specifies the angle to offset the shadow.

Distance

Specifies how far to offset the shadow.

Color

Specifies the outer shadow color.

HorizontalScale | VerticalScale

Specifies the horizontal and vertical scale factors of the shadow.

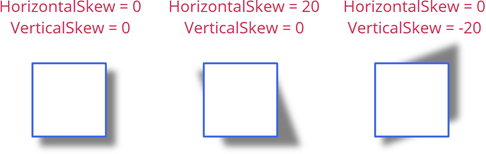

HorizontalSkew | VerticalSkew

Specifies the horizontal and vertical skew angles of the shadow. This property is measured in degrees and can have values in the (-90, 90) range.

RotateWithShape

Specifies whether the shadow rotates with the shape.

The following code snippet applies an outer shadow effect to a shape:

C#

using DevExpress.Docs.Presentation;
using System.Drawing;
using DevExpress.Docs;

namespace PresentationApiSample;

public class Program {
    public static void Main(string[] _) {

        Presentation presentation = new Presentation();
        presentation.Slides.Clear();

        Slide slide = new Slide(SlideLayoutType.Blank);
        presentation.Slides.Add(slide);

        Shape shape1 = new Shape(ShapeType.Rectangle);
        shape1.Outline = new LineStyle { Fill = new SolidFill(Color.RoyalBlue), Width = 8 };
        shape1.Fill = new SolidFill(Color.White);
        shape1.X = 1100;
        shape1.Y = 1100;
        shape1.Width = 300;
        shape1.Height = 300;
        slide.Shapes.Add(shape1);

        ShapeEffectProperties e_properties = new ShapeEffectProperties();

        e_properties.OuterShadow = new OuterShadowEffect {
            Angle = 135,
            BlurRadius = 50,
            Color = new OfficeColor(Color.Gray),
            Distance = 50,
            HorizontalScale = 100,
            VerticalScale = 100,
            HorizontalSkew = 0,
            VerticalSkew = 0,
            RotateWithShape = true
        };

        shape1.Effects = e_properties;
    }
}

VB.NET

Imports DevExpress.Docs.Presentation
Imports System.Drawing
Imports DevExpress.Docs

Namespace PresentationApiSample

    Public Class Program
        Public Shared Sub Main(__ As String())

            Dim presentation As Presentation = New Presentation()
            presentation.Slides.Clear()

            Dim slide As Slide = New Slide(SlideLayoutType.Blank)
            presentation.Slides.Add(slide)

            Dim shape1 As Shape = New Shape(ShapeType.Rectangle)
            shape1.Outline = New LineStyle With {
                    .Fill = New SolidFill(Color.RoyalBlue),
                    .Width = 8
                }
            shape1.Fill = New SolidFill(Color.White)
            shape1.X = 1100
            shape1.Y = 1100
            shape1.Width = 300
            shape1.Height = 300
            slide.Shapes.Add(shape1)

            Dim e_properties As ShapeEffectProperties = New ShapeEffectProperties()
            e_properties.OuterShadow = New OuterShadowEffect With {
                .Angle = 135,
                .BlurRadius = 50,
                .Color = New OfficeColor(Color.Gray),
                .Distance = 50,
                .HorizontalScale = 100,
                .VerticalScale = 100,
                .HorizontalSkew = 0,
                .VerticalSkew = 0,
                .RotateWithShape = True
            }
            shape1.Effects = e_properties
        End Sub
    End Class
End Namespace
