TrackBarEdit.TickItemStringFormat Property

Gets or sets the composite string that specifies how to format the tick item texts. This is a dependency property.

Namespace: DevExpress.Xpf.Editors

Assembly: DevExpress.Xpf.Core.v20.1.dll

NuGet Packages: DevExpress.WindowsDesktop.Wpf.Core, DevExpress.Wpf.Core

Declaration

C#

public string TickItemStringFormat { get; set; }

VB.NET

Public Property TickItemStringFormat As String

Property Value

Type	Description
String	The composite string that specifies how to format the tick item texts.

Remarks

The TickItemStringFormat format string is applied to the editor’s tick items. Set the TickItemDisplayMode property to Text or TickAndText to display text within the tick items.

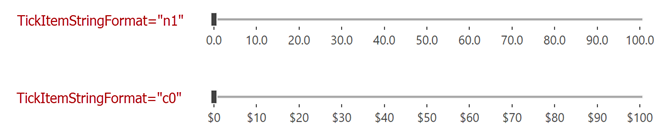

Example

Xaml

<Window ...
        xmlns:dxe="http://schemas.devexpress.com/winfx/2008/xaml/editors">

...
<dxe:TrackBarEdit
    TickFrequency="10"
    TickPlacement="BottomRight"
    TickItemDisplayMode="TickAndText"
    TickItemStringFormat="n1" />
<dxe:TrackBarEdit
    TickFrequency="10"
    TickPlacement="BottomRight"
    TickItemDisplayMode="TickAndText"
    TickItemStringFormat="c0" />
