Create a MongoDB Data Source

• Sep 06, 2025

1. Install the MongoDB.Driver NuGet package.

2. Register data connections in the application.json or Web.config file.

   application.json

   {
     "AllowedHosts": "*",
     "ConnectionStrings": {
       "MongoDB (local)": "mongodb://localhost:27017/"
     }
   }


   Important

   For security reasons, the Web Dashboard control does not expose connection strings defined in appsettings.json or Web.config. If the configuration file contains connection strings, the control displays an error. Use a data connection string provider to pass connection parameters securely and prevent data leaks.

   You can use a predefined provider or implement a custom provider.

   using DevExpress.DataAccess.Web;
   // ...
   var builder = WebApplication.CreateBuilder(args);
   IConfiguration? configuration = builder.Configuration;

   services.AddScoped<DashboardConfigurator>((IServiceProvider serviceProvider) => {
       DashboardConfigurator configurator = new DashboardConfigurator();
       configurator.SetConnectionStringsProvider(new DashboardConnectionStringsProvider(configuration));
       return configurator;
   });


   See the following help topic for more information: ASP.NET Core Security Considerations.

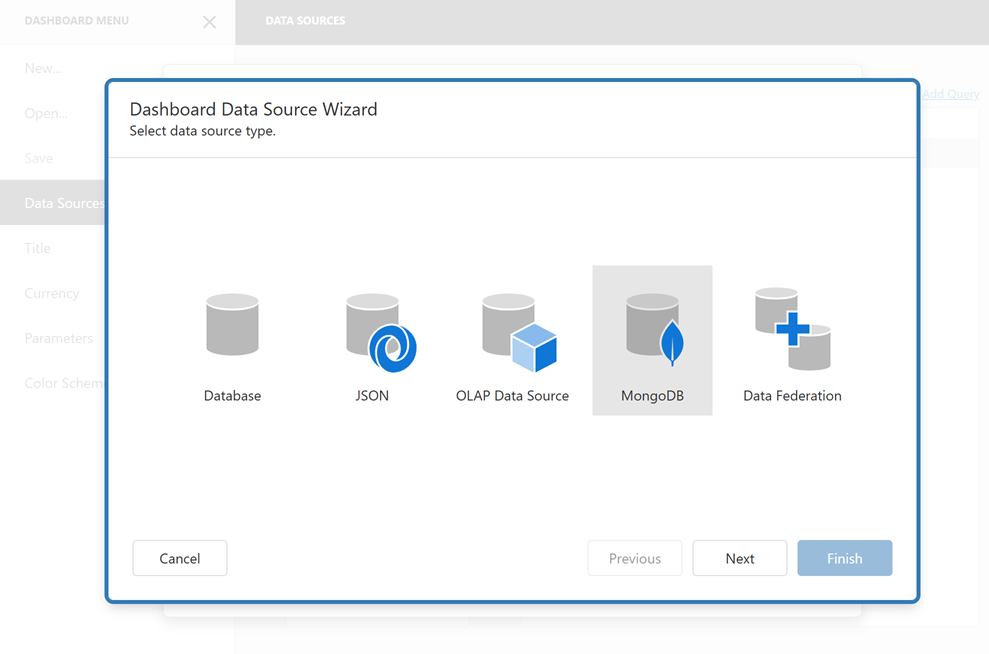

3. In the Dashboard Data Source Wizard, select MongoDB and click Next.

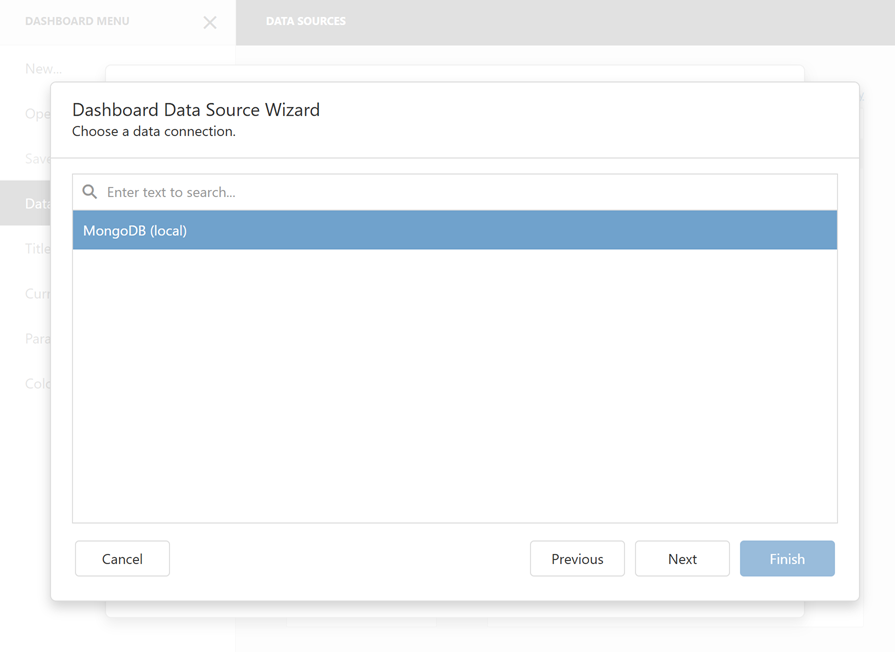

4. Specify the data connection and click Next:

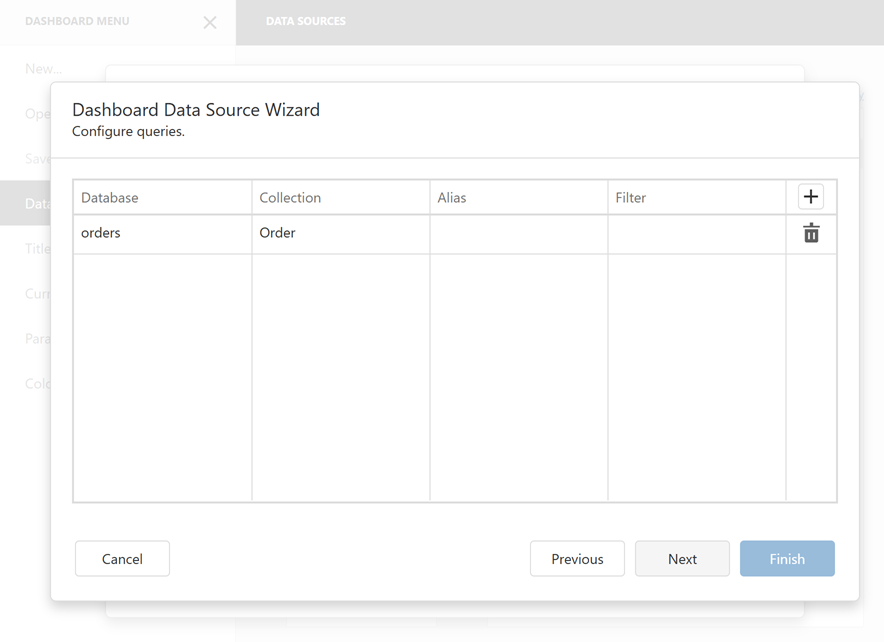

5. Configure queries and click Next.

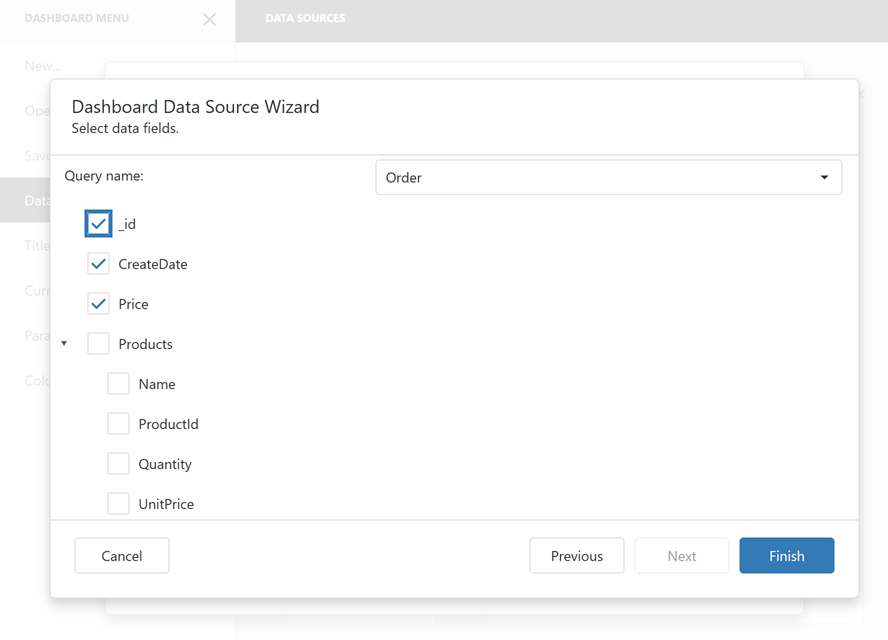

6. Select data fields and click Finish.



API

Page Name	Page ID	Class
Choose Connection	MongoDBDataSourceWizardPageId.ChooseMongoDBDataConnectionPage	ChooseMongoDBDataConnectionPage
Choose Schema	MongoDBDataSourceWizardPageId.ChooseMongoDBSchemaPage	ChooseMongoDBSchemaPage
Choose Collections	MongoDBDataSourceWizardPageId.ChooseMongoDBCollectionPage	ChooseMongoDBCollectionPage
