TableBorders.InsideVertical Property

Specifies settings of vertical borders displayed between table columns.

Namespace: DevExpress.Blazor.RichEdit

Assembly: DevExpress.Blazor.RichEdit.v24.2.dll

NuGet Package: DevExpress.Blazor.RichEdit

Declaration

public TableBorder InsideVertical { get; set; }

Property Value

Type Description
TableBorder

An object that contains border settings.

Remarks

The Rich Text Editor component allows you to specify border settings for the following document elements:

Table
The Table.Borders property allows you to access table borders and obtain their settings. Pass a TableProperties object to the Table.ChangePropertiesAsync method to customize table borders.
Table Cell
The TableCell.Borders property allows you to access table cell borders and obtain their settings. Pass a TableCellProperties object to the TableCell.ChangePropertiesAsync method to customize cell borders.

Note

Cell border settings take priority over table border settings.

The following code example customizes table borders:

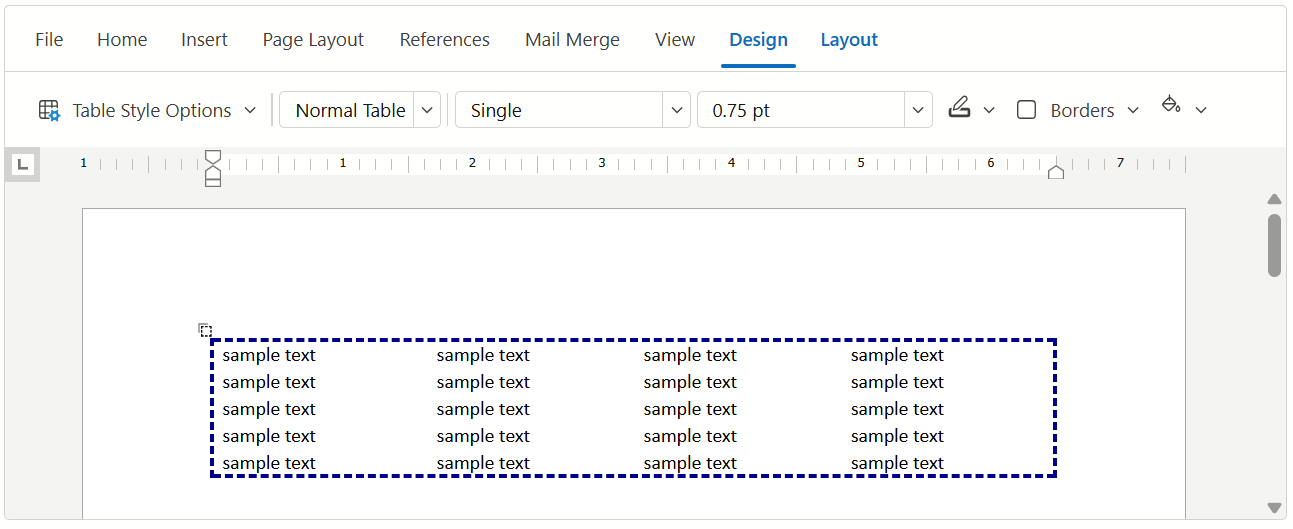

Customize Table Borders

<DxRichEdit @ref="richEdit" />

@code {
    DxRichEdit richEdit;
    protected override async Task OnAfterRenderAsync(bool firstRender) {
        if (firstRender)
            try {
                await InitializeDocument();
            }
            catch (TaskCanceledException) { }
        await base.OnAfterRenderAsync(firstRender);
    }

    async Task InitializeDocument() {
    /* Surround the code that contains an asynchronous operation with a try-catch block to handle
    the OperationCanceledException. This exception is thrown when an asynchronous operation is canceled. */
        try {
            var columnCount = 4;
            var rowCount = 5;
            richEdit.DocumentAPI.BeginUpdate();
            // Creates a table
            Table myTable = await richEdit.DocumentAPI.Tables.CreateAsync(0, columnCount, rowCount);
            for (int i = rowCount-1; i >= 0 ; i--)
                for (int j = columnCount-1; j >=0 ; j--) {
                    var cellPosition = myTable.Rows[i].Cells[j].Interval.Start;
                    await richEdit.DocumentAPI.AddTextAsync(cellPosition, "sample text");
                }
            // Customizes the table
            TableBorder outerBorder = new TableBorder(BorderLineStyle.Dashed,
                                                      System.Drawing.Color.DarkBlue, 50);
            TableBorder innerBorder = new TableBorder(BorderLineStyle.None,
                                                      System.Drawing.Color.Black, 20);
            myTable = await richEdit.DocumentAPI.Tables.GetAsync(0);
            await myTable.ChangePropertiesAsync(properties => {
                properties.Borders.Bottom = outerBorder;
                properties.Borders.Top = outerBorder;
                properties.Borders.Left = outerBorder;
                properties.Borders.Right = outerBorder;
                properties.Borders.InsideHorizontal = innerBorder;
                properties.Borders.InsideVertical = innerBorder;
                properties.Width = new TableWidth(TableWidthType.Percent, 100);
            });
            richEdit.DocumentAPI.EndUpdate();
        }
        catch (OperationCanceledException e) {
            Console.WriteLine($"{nameof(OperationCanceledException)} thrown with message: {e.Message}");
        }
    }
}
