TableStyleOptions Enum

Lists table style options.

Namespace: DevExpress.Blazor.RichEdit

Assembly: DevExpress.Blazor.RichEdit.v24.2.dll

NuGet Package: DevExpress.Blazor.RichEdit

Declaration

[Flags]
public enum TableStyleOptions

Members

Name	Description
None	Applies no special formatting to columns and rows.
HeaderRow	Applies special formatting to the first row.
TotalRow	Applies special formatting to the last row.
BandedRows	Applies special formatting to odd rows.
FirstColumn	Applies special formatting to the first column.
LastColumn	Applies special formatting to the last column.
BandedColumns	Applies special formatting to odd columns.

Related API Members

The following properties accept/return TableStyleOptions values:

• Table.TableStyleOptions
• TableProperties.TableStyleOptions

Remarks

Use a table’s TableStyleOptions property to obtain style options applied to the table.

Note

Style options do not affect table appearance if the NormalTable or GridTableLight style is applied to the table.

Pass a TableProperties instance to the ChangePropertiesAsync method to customize table appearance. Assign a TableStyleName property to the TableProperties.StyleName property to apply a style to the table. Specify TableProperties.TableStyleOptions to apply/remove special formatting to/from the first, last, and odd columns and rows.

Set the TableProperties.TableStyleOptions property to None to remove special formatting from all columns and rows. Note that the None flag has no effect in combination with other flags. For instance, if TableProperties.TableStyleOptions is set to a combination of None and FirstColumn, the table displays special formatting for the first column.

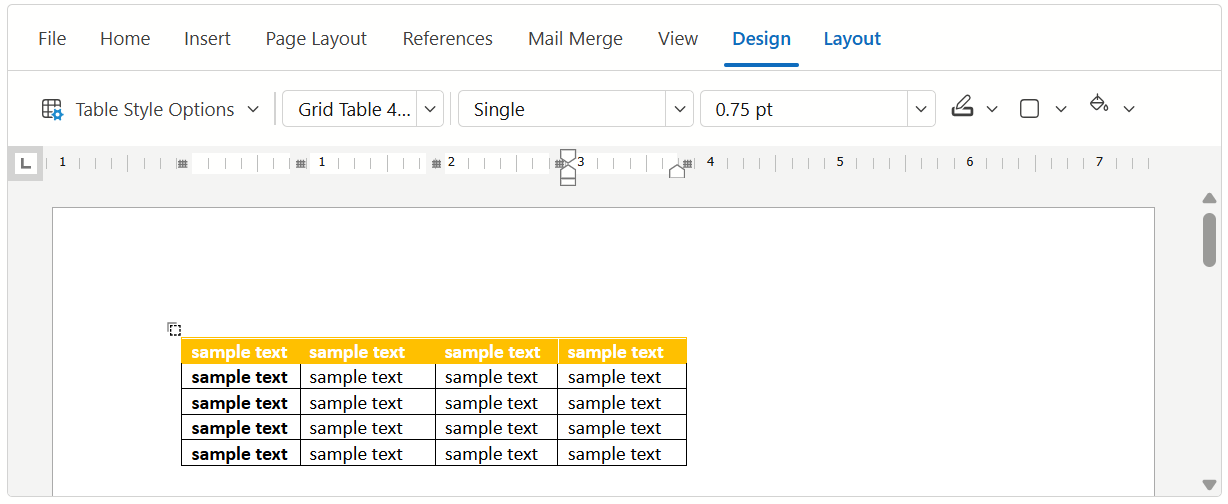

The following example applies special formatting to the first column and row of a table:

<DxRichEdit @ref="richEdit" />

@code {
    DxRichEdit richEdit;
    protected override async Task OnAfterRenderAsync(bool firstRender) {
        if (firstRender)
            try {
                await InitializeDocument();
            }
            catch (TaskCanceledException) { }
        await base.OnAfterRenderAsync(firstRender);
    }

    async Task InitializeDocument() {
    /* Surround the code that contains an asynchronous operation with a try-catch block to handle
    the OperationCanceledException. This exception is thrown when an asynchronous operation is canceled. */
        try {
            var columnCount = 4;
            var rowCount = 5;
            richEdit.DocumentAPI.BeginUpdate();
            // Creates a table
            Table myTable = await richEdit.DocumentAPI.Tables.CreateAsync(0, columnCount, rowCount);
            for (int i = rowCount-1; i >= 0 ; i--)
                for (int j = columnCount-1; j >= 0 ; j--) {
                    var cellPosition = myTable.Rows[i].Cells[j].Interval.Start;
                    await richEdit.DocumentAPI.AddTextAsync(cellPosition, "sample text");
                }
            // Customizes the table
            myTable = await richEdit.DocumentAPI.Tables.GetAsync(0);
            await myTable.ChangePropertiesAsync(properties => {
                properties.StyleName = TableStyleName.GridTable4Accent4;
                properties.TableStyleOptions = TableStyleOptions.FirstColumn | TableStyleOptions.HeaderRow;
            });
            richEdit.DocumentAPI.EndUpdate();
        }
        catch (OperationCanceledException e) {
            Console.WriteLine($"{nameof(OperationCanceledException)} thrown with message: {e.Message}");
        }
    }
}
