Get Started with Blazor Pivot Table

• Jan 15, 2026
• 5 minutes to read

This topic describes how to create a new project or configure an existing project to use a DevExpress Pivot Table component.

Create a New Project (DevExpress Template Kit)

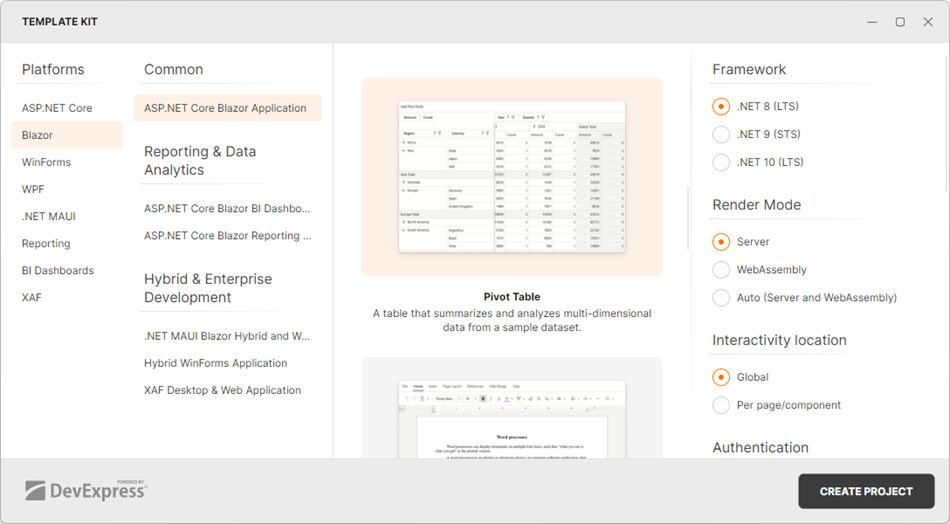

1. Use the DevExpress Template Kit to create a Blazor application.
2. In the Add views to the application, select the Pivot Table tile to create a sample page with the DevExpress Blazor Pivot Table component.
   The Template Kit will automatically register component packages, add required static resources, and populate mock data.

Configure an Existing Project

Follow the steps below to incorporate a Pivot Table into an existing Blazor app.

1. Register Common DevExpress Resources

Create an application as described in the following topic: Get Started With DevExpress Components for Blazor.

2. Register Pivot Table Resources

1. Install the DevExpress.Blazor.PivotTable and DevExpress.PivotGrid.Core NuGet packages.

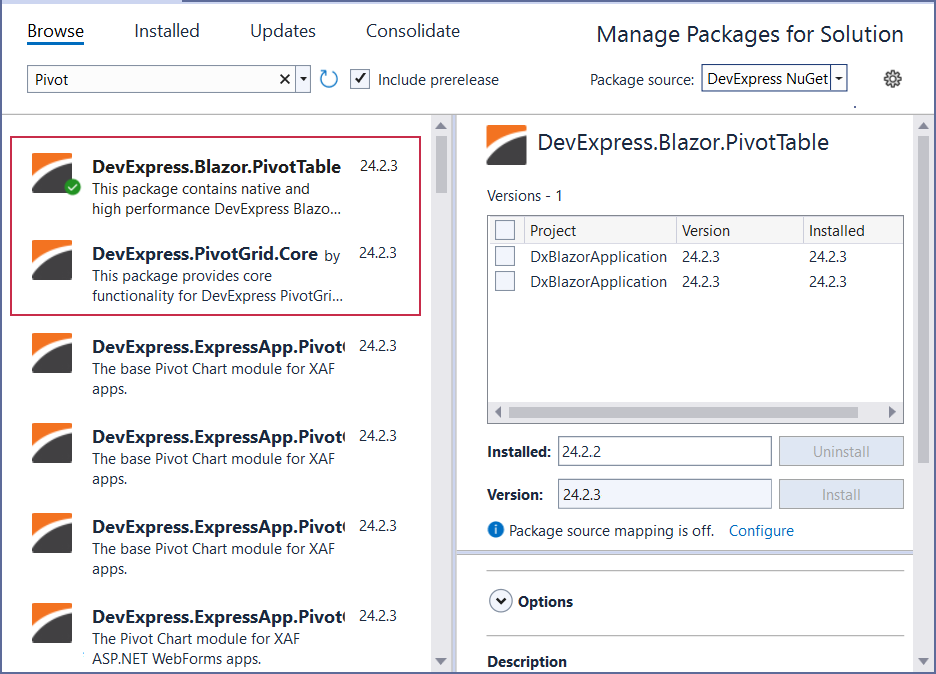

   1. Select Tools → NuGet Package Manager → Manage NuGet Packages for Solution.

   2. In the invoked dialog, open the Browse tab, select the DevExpress package source, and install the DevExpress.Blazor.PivotTable and DevExpress.PivotGrid.Core NuGet packages.

   The DevExpress package is automatically added as a package source to your NuGet configuration files if you use the DevExpress .NET Product Installer.



2. Register the DevExpress.Blazor.PivotTable namespace in the Components/Imports.razor file:

   _Imports.razor

   @using DevExpress.Blazor.PivotTable


Add a Pivot Table Component

Follow the steps below:

1. Add the following markup to a .razor file: <DxPivotTable>…</DxPivotTable>.
2. Enable interactive render mode. Refer to Static Render Mode Specifics.
3. Bind the component to data.
4. Configure the component as your needs dictate. For more information, refer to Data Presentation Basics.

Index.razor

@rendermode InteractiveServer

<DxPivotTable Data="SalesData">
    <Fields>
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Region)"
                           Area="@PivotTableArea.Row"
                           AreaIndex="0" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Country)"
                           Area="@PivotTableArea.Row"
                           SortOrder="@PivotTableSortOrder.Descending"
                           AreaIndex="1" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Date)"
                           GroupInterval="@PivotTableGroupInterval.DateYear"
                           Area="@PivotTableArea.Column"
                           AreaIndex="0"
                           Caption="Year" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Date)"
                           GroupInterval="@PivotTableGroupInterval.DateQuarter"
                           Area="@PivotTableArea.Column"
                           AreaIndex="1"
                           Caption="Quarter" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Amount)"
                           SortOrder="@PivotTableSortOrder.Ascending"
                           Area="@PivotTableArea.Data"
                           SummaryType="@PivotTableSummaryType.Sum" />
    </Fields>
</DxPivotTable>

@code {
    IEnumerable<Sales.SaleInfo> SalesData;
    protected override async Task OnInitializedAsync() {
        SalesData = await Sales.GetSalesAsync();
    }
}

Sales.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

public class Sales {
    static IList<SaleInfo> dataSource;

    public class SaleInfo {
        public int OrderId { get; set; }
        public string Region { get; set; }
        public string Country { get; set; }
        public string City { get; set; }
        public int Amount { get; set; }
        public DateTime Date { get; set; }
    }

    static Sales() {
        CreateDataSource();
    }

    public static Task<IQueryable<SaleInfo>> GetSalesAsync() {
        return Task.FromResult(dataSource.AsQueryable());
    }

    static void CreateDataSource() {
        dataSource = new List<SaleInfo> {
        new SaleInfo {
            OrderId = 10248,
            Region = "North America",
            Country = "United States",
            City = "New York",
            Amount = 1740,
            Date = DateTime.Parse("2017/01/06")
        },
        new SaleInfo {
            OrderId = 10249,
            Region = "North America",
            Country = "United States",
            City = "Los Angeles",
            Amount = 850,
            Date = DateTime.Parse("2017/02/13")
        },
        new SaleInfo {
            OrderId = 10250,
            Region = "North America",
            Country = "United States",
            City = "Denver",
            Amount = 2235,
            Date = DateTime.Parse("2017/02/07")
        },
        new SaleInfo {
            OrderId = 10251,
            Region = "North America",
            Country = "Canada",
            City = "Vancouver",
            Amount = 1965,
            Date = DateTime.Parse("2017/03/03")
        },
        new SaleInfo {
            OrderId = 10252,
            Region = "North America",
            Country = "Canada",
            City = "Edmonton",
            Amount = 880,
            Date = DateTime.Parse("2017/03/10")
        },
        new SaleInfo {
            OrderId = 10253,
            Region = "South America",
            Country = "Brazil",
            City = "Rio de Janeiro",
            Amount = 5260,
            Date = DateTime.Parse("2017/01/17")
        },
        new SaleInfo {
            OrderId = 10254,
            Region = "South America",
            Country = "Argentina",
            City = "Buenos Aires",
            Amount = 2790,
            Date = DateTime.Parse("2017/05/21")
        },
        new SaleInfo {
            OrderId = 10255,
            Region = "South America",
            Country = "Paraguay",
            City = "Asuncion",
            Amount = 3140,
            Date = DateTime.Parse("2017/05/01")
        },
        new SaleInfo {
            OrderId = 10256,
            Region = "Europe",
            Country = "United Kingdom",
            City = "London",
            Amount = 6175,
            Date = DateTime.Parse("2017/06/24")
        },
        new SaleInfo {
            OrderId = 10257,
            Region = "Europe",
            Country = "Germany",
            City = "Berlin",
            Amount = 4575,
            Date = DateTime.Parse("2017/06/11")
        },
        new SaleInfo {
            OrderId = 10517,
            Region = "North America",
            Country = "United States",
            City = "New York",
            Amount = 7710,
            Date = DateTime.Parse("2018/07/18")
        },
        new SaleInfo {
            OrderId = 10518,
            Region = "North America",
            Country = "United States",
            City = "Los Angeles",
            Amount = 7975,
            Date = DateTime.Parse("2018/01/10")
        },
        new SaleInfo {
            OrderId = 10519,
            Region = "North America",
            Country = "United States",
            City = "Denver",
            Amount = 3285,
            Date = DateTime.Parse("2018/03/13")
        },
        new SaleInfo {
            OrderId = 10520,
            Region = "North America",
            Country = "Canada",
            City = "Vancouver",
            Amount = 2580,
            Date = DateTime.Parse("2018/04/22")
        },
        new SaleInfo {
            OrderId = 10521,
            Region = "North America",
            Country = "Canada",
            City = "Edmonton",
            Amount = 2160,
            Date = DateTime.Parse("2018/05/26")
        },
        new SaleInfo {
            OrderId = 10522,
            Region = "South America",
            Country = "Brazil",
            City = "Rio de Janeiro",
            Amount = 1100,
            Date = DateTime.Parse("2018/05/25")
        },
        new SaleInfo {
            OrderId = 10523,
            Region = "South America",
            Country = "Argentina",
            City = "Buenos Aires",
            Amount = 4425,
            Date = DateTime.Parse("2018/08/21")
        },
        new SaleInfo {
            OrderId = 10524,
            Region = "South America",
            Country = "Paraguay",
            City = "Asuncion",
            Amount = 1360,
            Date = DateTime.Parse("2018/08/22")
        },
        new SaleInfo {
            OrderId = 10525,
            Region = "Europe",
            Country = "United Kingdom",
            City = "London",
            Amount = 3250,
            Date = DateTime.Parse("2018/11/14")
        },
        new SaleInfo {
            OrderId = 10526,
            Region = "Europe",
            Country = "Germany",
            City = "Berlin",
            Amount = 5550,
            Date = DateTime.Parse("2018/12/21")
        },
    };
}

Run the application to see the result:
