Stepper

• Mar 03, 2026
• 3 minutes to read

Stepper is a UI control that allows you to display and analyze multi-dimensional data.

Run Demo: Stepper Read Tutorial

Getting Started

The Stepper UI Control is based on the DevExtreme Stepper component.

The following help topics explain how to add this control to your project:

• Configure a Visual Studio Project or Configure a non Visual Studio Project
• Add Controls to a Project
• Razor Syntax

Basic Syntax

StepperBasics.cshtml

@(Html.DevExtreme().Stepper()
    .Items(i => {
        i.Add().Label("Ready");
        i.Add().Label("Set");
        i.Add().Label("Go");
    })
)

StepperController.cs

using Microsoft.AspNetCore.Mvc;

namespace ASP.NET_Core.Controllers {
    public class StepperController : Controller {
        public IActionResult GettingStarted() {
            return View();
        }
    }
}

Built-in Capabilities and Configuration Guides

• Orientation Options
  Stepper supports horizontal and vertical orientation options.
• Navigation Modes
  The linear property enables sequential navigation. Disable linear to allow users to skip steps.

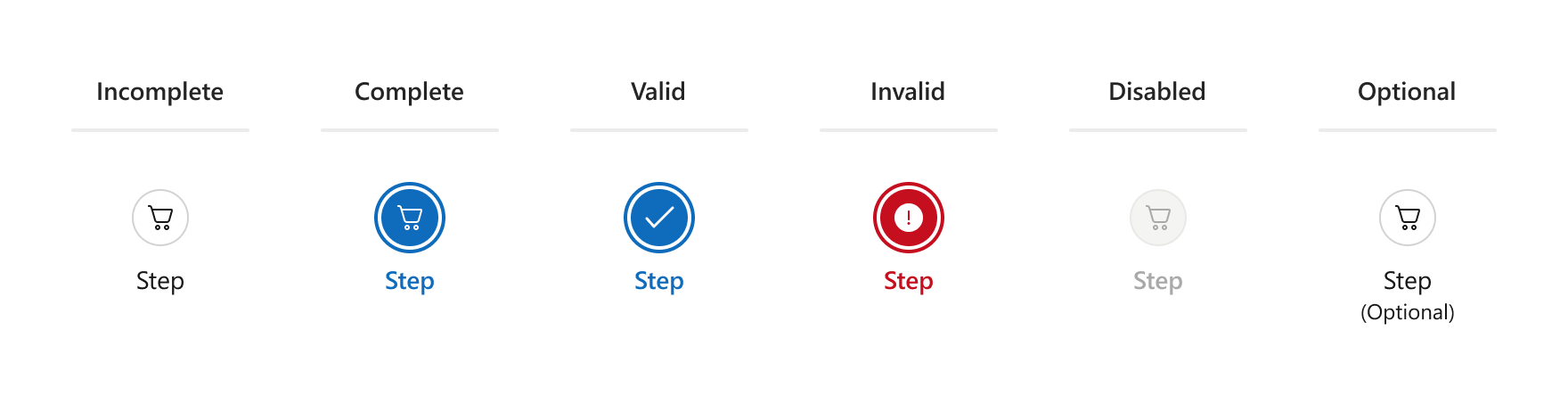

• Step Types and States
  The component offers various step types and states such as optional and disabled. You can also indicate step validity with the isValid property.

• Step Customization
  Stepper offers multiple step customization options like configurable step labels and hints. You can also set custom step icons or text.

• Advanced Customization with Templates
  Implement in-depth customizations such as custom step shapes with item templates. To do so, define itemTemplate or items[].template.

  Run Demo: Step Template

• Selection Options
  You can get and set the selected step with selectedItem and selectedIndex. Implement custom logic upon selection change with onSelectionChanged and onSelectionChanging.

• Keyboard Navigation
  Stepper supports keyboard navigation. The component automatically selects steps focused with the keyboard if selectOnFocus is enabled.
• Right-to-Left Mode
  Switch between left-to-right and right-to-left progression on horizontal Steppers with the rtlEnabled property. rtlEnabled changes the placement of step labels on vertical Steppers.

API

Server-Side API

Initialization

Call the Stepper() method to create a Stepper control. This action initializes a StepperBuilder instance. Use the instance methods to specify Stepper options and event handlers.

Options

For a complete option list, see Options. For details on how to specify control options, refer to the following help topic: Specify Options.

Events

For available events, see Events. For details on how to handle events, refer to the following help topic: Handle Events and Define Callbacks.

Client-Side API

Options

If you need to specify the Stepper options dynamically on the client side, use client-side API. For a complete option list, see DevExtreme Stepper options.

Methods

For a list of available methods, see DevExtreme Stepper methods. For details on how to call methods, refer to the following help topic: Call Methods.

Demos

Run Demo: Stepper
