DataControlBase.DataAreaBackground Property

Gets or sets the brush used to paint the background of the GridControl/TreeListControl‘s data area. This is a dependency property.

Namespace: DevExpress.Xpf.Grid

Assembly: DevExpress.Xpf.Grid.v20.2.Core.dll

NuGet Packages: DevExpress.WindowsDesktop.Wpf.Grid.Core, DevExpress.Wpf.Grid.Core

Declaration

C#

public Brush DataAreaBackground { get; set; }

VB.NET

Public Property DataAreaBackground As Brush

Property Value

Type	Description
Brush	Paints the background of the control’s data area.

Remarks

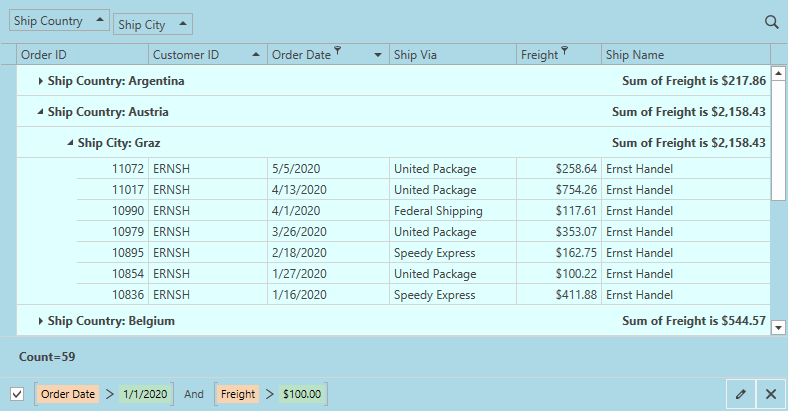

The DataAreaBackground property allows you to change the GridControl/TreeListControl data area‘s background. To change the background of the entire control, use the GridControl.Background / TreeListControl.Background properties.

Xaml

<dxg:GridControl ItemsSource="{Binding Orders}"
                 Background="LightBlue"
                 DataAreaBackground="LightCyan" ... />

Example

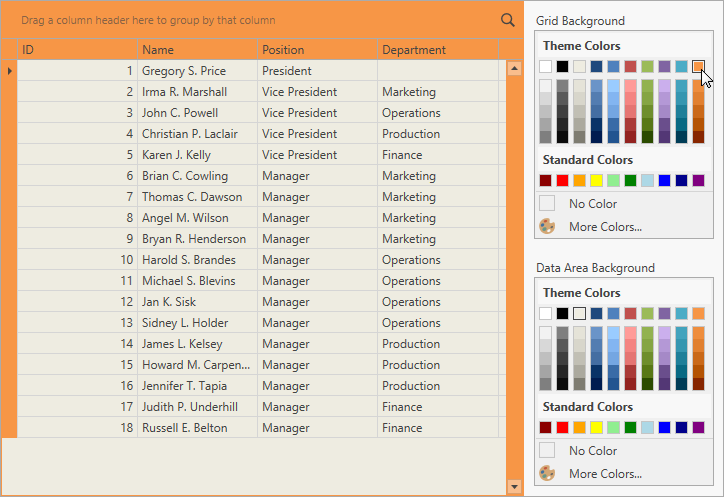

The following example allows you to use the ColorEdit controls to specify the Background and DataAreaBackground properties.

View Example: How to Specify Data Grid Background

Limitations

The CardView does not support the DataAreaBackground property.

Related GitHub Examples

The following code snippet (auto-collected from DevExpress Examples) contains a reference to the DataAreaBackground property.

Note

The algorithm used to collect these code examples remains a work in progress. Accordingly, the links and snippets below may produce inaccurate results. If you encounter an issue with code examples below, please use the feedback form on this page to report the issue.

XAML

how-to-specify-wpf-data-grid-background/CS/MainWindow.xaml#L26

Background="{Binding SelectedColor, Converter={dxmvvm:ColorToBrushConverter}}"
DataAreaBackground="{Binding DataAreaSelectedColor, Converter={dxmvvm:ColorToBrushConverter}}"
ItemsSource="{Binding Items}"
