DxPivotTable.FilterHeaderAreaDisplayMode Property

Specifies when to display the Filter Header Area in the Pivot Table.

Namespace: DevExpress.Blazor.PivotTable

Assembly: DevExpress.Blazor.PivotTable.v25.1.dll

NuGet Package: DevExpress.Blazor.PivotTable

Declaration

[DefaultValue(PivotTableFilterHeaderAreaDisplayMode.Default)]
[Parameter]
public PivotTableFilterHeaderAreaDisplayMode FilterHeaderAreaDisplayMode { get; set; }

Property Value

Type	Default	Description
PivotTableFilterHeaderAreaDisplayMode	Default	A PivotTableFilterHeaderAreaDisplayMode enumeration value.

Available values:

Name	Description
Default	Always is used. The Filter Header Area is always displayed (even if it does not contain filter fields).
Never	The Filter Header Area is always hidden (even if the Pivot Table has filter fields defined).
Always	The Filter Header Area is always displayed (even if it does not contain filter fields).

Remarks

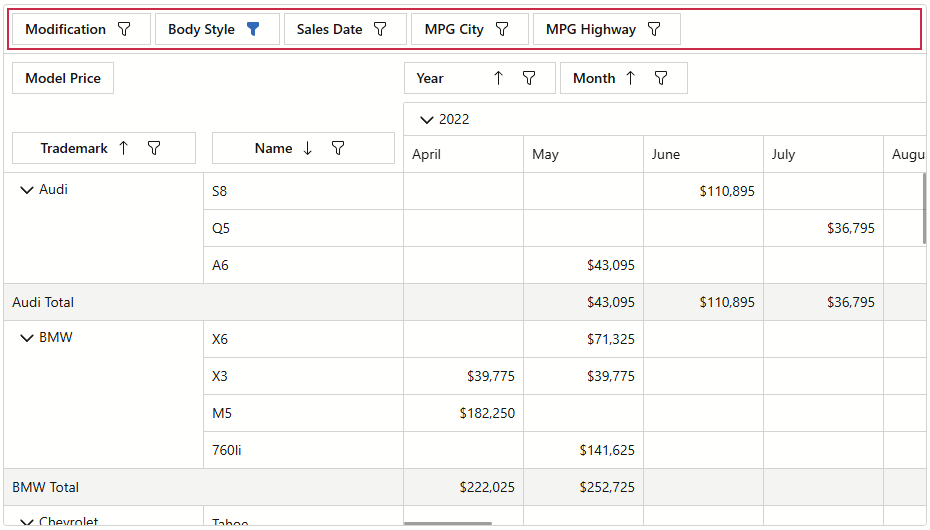

The Pivot Table displays the Filter Header Area even if it does not contain filter fields. Use the FilterHeaderAreaDisplayMode property to control Filter Header Area visibility.

The following code hides the Field Header Area:

Razor

<DxPivotTable Data="SalesData"
              FilterHeaderAreaDisplayMode="PivotTableFilterHeaderAreaDisplayMode.Never">
    <Fields>
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Region)"
                           Area="@PivotTableArea.Row"
                           AreaIndex="0" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Country)"
                           Area="@PivotTableArea.Row"
                           SortOrder="@PivotTableSortOrder.Descending"
                           AreaIndex="1" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Date)"
                           GroupInterval="@PivotTableGroupInterval.DateYear"
                           Area="@PivotTableArea.Column"
                           AreaIndex="0"
                           Caption="Year" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Date)"
                           GroupInterval="@PivotTableGroupInterval.DateQuarter"
                           Area="@PivotTableArea.Column"
                           AreaIndex="1"
                           Caption="Quarter" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Amount)"
                           SortOrder="@PivotTableSortOrder.Ascending"
                           Area="@PivotTableArea.Data"
                           SummaryType="@PivotTableSummaryType.Sum" />
    </Fields>
</DxPivotTable>

@code {
    IEnumerable<Sales.SaleInfo> SalesData;
    protected override async Task OnInitializedAsync() {
        SalesData = await Sales.GetSalesAsync();
    }
}

Sales.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

public class Sales {
    static IList<SaleInfo> dataSource;

    public class SaleInfo {
        public int OrderId { get; set; }
        public string Region { get; set; }
        public string Country { get; set; }
        public string City { get; set; }
        public int Amount { get; set; }
        public DateTime Date { get; set; }
    }

    static Sales() {
        CreateDataSource();
    }

    public static Task<IQueryable<SaleInfo>> GetSalesAsync() {
        return Task.FromResult(dataSource.AsQueryable());
    }

    static void CreateDataSource() {
        dataSource = new List<SaleInfo> {
        new SaleInfo {
            OrderId = 10248,
            Region = "North America",
            Country = "United States",
            City = "New York",
            Amount = 1740,
            Date = DateTime.Parse("2017/01/06")
        },
        new SaleInfo {
            OrderId = 10249,
            Region = "North America",
            Country = "United States",
            City = "Los Angeles",
            Amount = 850,
            Date = DateTime.Parse("2017/02/13")
        },
        new SaleInfo {
            OrderId = 10250,
            Region = "North America",
            Country = "United States",
            City = "Denver",
            Amount = 2235,
            Date = DateTime.Parse("2017/02/07")
        },
        new SaleInfo {
            OrderId = 10251,
            Region = "North America",
            Country = "Canada",
            City = "Vancouver",
            Amount = 1965,
            Date = DateTime.Parse("2017/03/03")
        },
        new SaleInfo {
            OrderId = 10252,
            Region = "North America",
            Country = "Canada",
            City = "Edmonton",
            Amount = 880,
            Date = DateTime.Parse("2017/03/10")
        },
        new SaleInfo {
            OrderId = 10253,
            Region = "South America",
            Country = "Brazil",
            City = "Rio de Janeiro",
            Amount = 5260,
            Date = DateTime.Parse("2017/01/17")
        },
        new SaleInfo {
            OrderId = 10254,
            Region = "South America",
            Country = "Argentina",
            City = "Buenos Aires",
            Amount = 2790,
            Date = DateTime.Parse("2017/05/21")
        },
        new SaleInfo {
            OrderId = 10255,
            Region = "South America",
            Country = "Paraguay",
            City = "Asuncion",
            Amount = 3140,
            Date = DateTime.Parse("2017/05/01")
        },
        new SaleInfo {
            OrderId = 10256,
            Region = "Europe",
            Country = "United Kingdom",
            City = "London",
            Amount = 6175,
            Date = DateTime.Parse("2017/06/24")
        },
        new SaleInfo {
            OrderId = 10257,
            Region = "Europe",
            Country = "Germany",
            City = "Berlin",
            Amount = 4575,
            Date = DateTime.Parse("2017/06/11")
        },
        new SaleInfo {
            OrderId = 10517,
            Region = "North America",
            Country = "United States",
            City = "New York",
            Amount = 7710,
            Date = DateTime.Parse("2018/07/18")
        },
        new SaleInfo {
            OrderId = 10518,
            Region = "North America",
            Country = "United States",
            City = "Los Angeles",
            Amount = 7975,
            Date = DateTime.Parse("2018/01/10")
        },
        new SaleInfo {
            OrderId = 10519,
            Region = "North America",
            Country = "United States",
            City = "Denver",
            Amount = 3285,
            Date = DateTime.Parse("2018/03/13")
        },
        new SaleInfo {
            OrderId = 10520,
            Region = "North America",
            Country = "Canada",
            City = "Vancouver",
            Amount = 2580,
            Date = DateTime.Parse("2018/04/22")
        },
        new SaleInfo {
            OrderId = 10521,
            Region = "North America",
            Country = "Canada",
            City = "Edmonton",
            Amount = 2160,
            Date = DateTime.Parse("2018/05/26")
        },
        new SaleInfo {
            OrderId = 10522,
            Region = "South America",
            Country = "Brazil",
            City = "Rio de Janeiro",
            Amount = 1100,
            Date = DateTime.Parse("2018/05/25")
        },
        new SaleInfo {
            OrderId = 10523,
            Region = "South America",
            Country = "Argentina",
            City = "Buenos Aires",
            Amount = 4425,
            Date = DateTime.Parse("2018/08/21")
        },
        new SaleInfo {
            OrderId = 10524,
            Region = "South America",
            Country = "Paraguay",
            City = "Asuncion",
            Amount = 1360,
            Date = DateTime.Parse("2018/08/22")
        },
        new SaleInfo {
            OrderId = 10525,
            Region = "Europe",
            Country = "United Kingdom",
            City = "London",
            Amount = 3250,
            Date = DateTime.Parse("2018/11/14")
        },
        new SaleInfo {
            OrderId = 10526,
            Region = "Europe",
            Country = "Germany",
            City = "Berlin",
            Amount = 5550,
            Date = DateTime.Parse("2018/12/21")
        },
    };
}

Implements

FilterHeaderAreaDisplayMode
