DiagramControl.ShowMeasureUnit Property

Specifies whether to display the unit of measurement in the Properties Panel, Page Setup Window, and Bottom Panel. This is a dependency property.

Namespace: DevExpress.Xpf.Diagram

Assembly: DevExpress.Xpf.Diagram.v20.2.dll

NuGet Packages: DevExpress.WindowsDesktop.Wpf.Diagram, DevExpress.Wpf.Diagram


public bool ShowMeasureUnit { get; set; }

Property Value

Type Description

true, to display the unit of measurement in UI; otherwise, false.


Set the ShowMeasureUnit property to true to use the unit of measurement in the Properties Panel and Bottom Panel.

If the ShowMeasureUnit property is set to false, the MeasureUnit value only affects the ruler’s unit of measurement and values in the Page Setup Window. The Properties Panel and Bottom Panel display values in pixels.

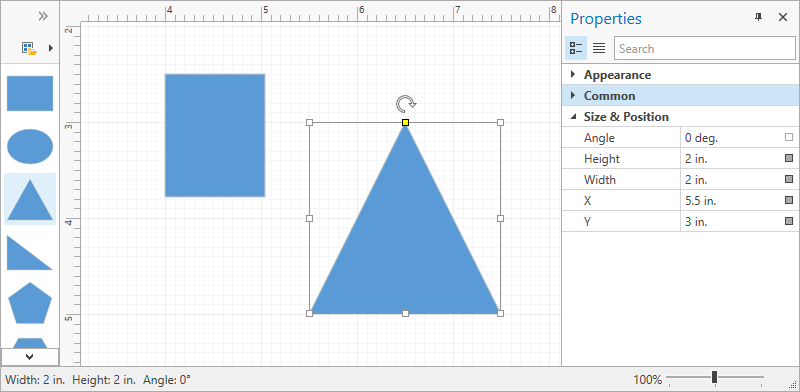

The illustration below shows a diagram with the MeasureUnit property set to Inches.
