DiagramControl.OrgChartLayoutIsCompact Property

Specifies whether the automatic org chart layout arranges shapes minimizing the space between them. This is a dependency property.

Namespace: DevExpress.Xpf.Diagram

Assembly: DevExpress.Xpf.Diagram.v20.2.dll

Declaration

public bool OrgChartLayoutIsCompact { get; set; }
Public Property OrgChartLayoutIsCompact As Boolean

Property Value

Type Description
Boolean

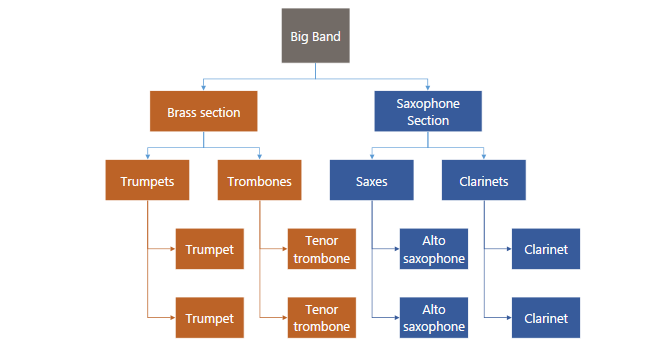

true, to enable the compact org chart layout; otherwise, false. By default, true.

Remarks

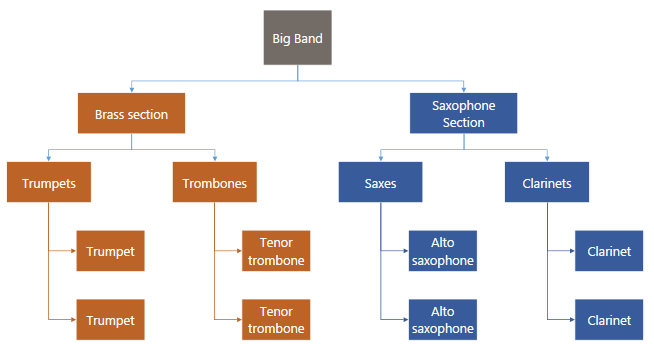

If the OrgChartLayoutIsCompact property is set to false, the algorithm arranges shapes so that the gap between shapes of the same hierarchy level is increased based on the space that is taken by subtrees.

Implements

DevExpress.Diagram.Core.IDiagramControl.OrgChartLayoutIsCompact
