RedactionAnnotation Class
Defines a PDF redaction annotation.
Declaration
public class RedactionAnnotation extends MarkupAnnotationRemarks
Redaction annotations permanently remove sensitive information from a PDF document. You can redact text, images, and other page content before you distribute the document.
A typical redaction workflow includes the following steps:
- Create one or more redaction annotations.
- Review or modify annotations if necessary.
- Apply annotations to permanently remove the underlying content.
Important
A redaction annotation only marks content for removal. The original content remains in the document until you apply the annotation. Once applied, the content cannot be recovered.

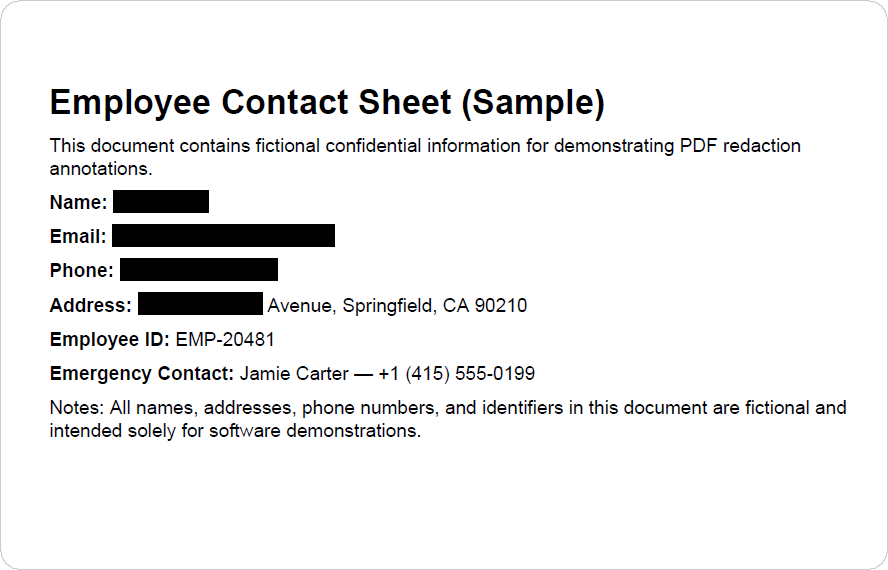

The following code snippet searches for confidential information in a PDF document and creates redaction annotations over all matches:
package pdf;
import com.devexpress.docs.pdf.*;
import com.devexpress.system.drawing.*;
import java.nio.channels.*;
import java.nio.file.*;
import java.util.*;
public class Main {
public static void main(String[] args) throws Exception {
try (FileChannel fileChannel = FileChannel.open(Path.of("Confidential.pdf"));
PdfDocument pdfDocument = new PdfDocument(fileChannel)) {
Page page = pdfDocument.getPages().getFirst();
createRedactionAnnotation(pdfDocument);
// Save the document.
try (WritableByteChannel channel =
FileChannel.open(Path.of("Result.pdf"),
StandardOpenOption.CREATE,
StandardOpenOption.WRITE,
StandardOpenOption.TRUNCATE_EXISTING)) {
pdfDocument.save(channel);
}
}
}
static void createRedactionAnnotation(PdfDocument pdfDocument) {
// Text strings to locate and redact.
String[] searchTerms = {
"Alex Carter",
"+1 (415) 555-0187",
"alex.carter@example.com",
"742 Evergreen",
};
// Search text case-insensitively and match only whole words.
TextSearchOptions searchOptions = new TextSearchOptions(false, true);
// Search for each text string.
for (String searchTerm : searchTerms) {
// Find all occurrences of the current search string.
Iterable<TextSearchInfo> results = pdfDocument.findText(searchTerm, searchOptions);
// Process each search result.
for (TextSearchInfo result : results) {
// Get the page that contains the matched text.
Page page = pdfDocument.getPages().get(result.getPageIndex());
// Store the bounding boxes for all matched text fragments.
List<RectangleF> areas = new ArrayList<>();
// Process each text match.
for (TextMatchInfo match : result.getMatches()) {
// A match can consist of multiple text fragments.
for (TextMatchFragment fragment : match.getMatchFragments()) {
// Add the fragment's bounding box to the list.
areas.add(fragment.getRectangle().getBoundingBox());
}
}
// Create a redaction annotation for each text fragment.
for(RectangleF rectangle : areas) {
RedactionAnnotation annotation = new RedactionAnnotation(rectangle);
// Specify the annotation border color before the redaction is applied.
annotation.setColor(PdfColor.getRed());
// Specify the fill color after the redaction is applied.
annotation.setFillColor(PdfColor.getBlack());
// Specify the overlay text appearance.
annotation.setTextAppearance(new TextAppearance() {{
setFill(new SolidFill(PdfColor.getWhite()));
setFontSize(5);
}});
// Specify the overlay text.
annotation.setOverlayText("CONFIDENTIAL");
// Center the overlay text horizontally.
annotation.setTextJustification(TextJustification.CENTERED);
// Display the overlay text only once.
annotation.setRepeatText(false);
// Add the annotation to the page.
page.getAnnotations().add(annotation);
}
}
}
}
}
Refer to the following help topic for additional information: Redaction Annotations.
Inherited Members
Inheritance
Constructors
RedactionAnnotation(OrientedRectangle[] rectangles) Constructor
Initializes a new instance of the RedactionAnnotation class with specified settings.
Declaration
public RedactionAnnotation(OrientedRectangle[] rectangles)Parameters
| Name | Type | Description |
|---|---|---|
| rectangles | OrientedRectangle[] | The redaction annotation rectangles. |
RedactionAnnotation(Quadrilateral[] quads) Constructor
Initializes a new instance of the RedactionAnnotation class with specified quadrilaterals.
Declaration
public RedactionAnnotation(Quadrilateral[] quads)Parameters
| Name | Type | Description |
|---|---|---|
| quads | Quadrilateral[] | The redaction annotation quadrilaterals. |
RedactionAnnotation(RectangleF bounds) Constructor
Initializes a new instance of the RedactionAnnotation class with the specified bounds.
Declaration
public RedactionAnnotation(RectangleF bounds)Parameters
| Name | Type | Description |
|---|---|---|
| bounds | RectangleF | The redaction annotation bounds. |
RedactionAnnotation(RedactionGeometry geometry) Constructor
Initializes a new instance of the RedactionAnnotation class with the specified geometry.
Declaration
public RedactionAnnotation(RedactionGeometry geometry)Parameters
| Name | Type | Description |
|---|---|---|
| geometry | RedactionGeometry | The redaction annotation geometry. |
Methods
getBounds() Method
Returns the redaction annotation bounds.
Declaration
public RectangleF getBounds()Returns
| Type | Description |
|---|---|
| RectangleF | The redaction annotation bounds. |
getFillColor() Method
Returns the redaction annotation fill color.
Declaration
public PdfColor getFillColor()Returns
| Type | Description |
|---|---|
| PdfColor | The redaction annotation fill color. |
getGeometry() Method
Returns the redaction annotation geometry.
Declaration
public RedactionGeometry getGeometry()Returns
| Type | Description |
|---|---|
| RedactionGeometry | The redaction annotation geometry. |
getOverlayText() Method
Returns the redaction annotation overlay text.
Declaration
public String getOverlayText()Returns
| Type | Description |
|---|---|
| String | The redaction annotation overlay text. |
getRepeatText() Method
Returns whether the redaction annotation repeats overlay text.
Declaration
public boolean getRepeatText()Returns
| Type | Description |
|---|---|
| boolean |
|
getReplaceObject() Method
Returns the redaction annotation replacement object.
Declaration
public FormTemplate getReplaceObject()Returns
| Type | Description |
|---|---|
| FormTemplate | The redaction annotation replacement object. |
getTextAppearance() Method
Returns the redaction annotation overlay text formatting settings.
Declaration
public TextAppearance getTextAppearance()Returns
| Type | Description |
|---|---|
| TextAppearance | The redaction annotation overlay text appearance. |
getTextJustification() Method
Returns the redaction annotation overlay text justification.
Declaration
public TextJustification getTextJustification()Returns
| Type | Description |
|---|---|
| TextJustification | The redaction annotation overlay text justification. |
setBounds(RectangleF value) Method
Sets the redaction annotation bounds.
Declaration
public void setBounds(RectangleF value)Parameters
| Name | Type | Description |
|---|---|---|
| value | RectangleF | The redaction annotation bounds. |
setFillColor(PdfColor value) Method
Sets the redaction annotation fill color.
Declaration
public void setFillColor(PdfColor value)Parameters
| Name | Type | Description |
|---|---|---|
| value | PdfColor | The redaction annotation fill color. |
setGeometry(RedactionGeometry value) Method
Sets the redaction annotation geometry.
Declaration
public void setGeometry(RedactionGeometry value)Parameters
| Name | Type | Description |
|---|---|---|
| value | RedactionGeometry | The redaction annotation geometry. |
setOverlayText(String value) Method
Sets the redaction annotation overlay text.
Declaration
public void setOverlayText(String value)Parameters
| Name | Type | Description |
|---|---|---|
| value | String | The redaction annotation overlay text. |
setRepeatText(boolean value) Method
Sets whether the redaction annotation repeats overlay text.
Declaration
public void setRepeatText(boolean value)Parameters
| Name | Type | Description |
|---|---|---|
| value | boolean |
|
setReplaceObject(FormTemplate value) Method
Sets the redaction annotation replacement object.
Declaration
public void setReplaceObject(FormTemplate value)Parameters
| Name | Type | Description |
|---|---|---|
| value | FormTemplate | The redaction annotation replacement object. |
setTextAppearance(TextAppearance value) Method
Sets the redaction annotation overlay text formatting settings.
Declaration
public void setTextAppearance(TextAppearance value)Parameters
| Name | Type | Description |
|---|---|---|
| value | TextAppearance | The redaction annotation overlay text appearance. |
setTextJustification(TextJustification value) Method
Sets the redaction annotation overlay text justification.
Declaration
public void setTextJustification(TextJustification value)Parameters
| Name | Type | Description |
|---|---|---|
| value | TextJustification | The redaction annotation overlay text justification. |
