CaretAnnotation Class

Defines a caret annotation in a PDF document.

Declaration

public class CaretAnnotation extends MarkupAnnotation

Remarks

The following code snippet creates a caret annotation, specifies its comment, and adds the annotation to a page:

package pdf;

import com.devexpress.docs.pdf.*;
import com.devexpress.system.drawing.*;

import java.nio.channels.*;
import java.nio.file.*;

public class Main {
    public static void main(String[] args) throws Exception {
        try (FileChannel fileChannel = FileChannel.open(Path.of("Document.pdf"));
             PdfDocument pdfDocument = new PdfDocument(fileChannel)) {

            Page page = pdfDocument.getPages().getFirst();

            createCaretAnnotation(page);

            // Save the document.
            try (WritableByteChannel channel =
                        FileChannel.open(Path.of("Result.pdf"),
                                StandardOpenOption.CREATE,
                                StandardOpenOption.WRITE,
                                StandardOpenOption.TRUNCATE_EXISTING)) {

                pdfDocument.save(channel);
            }
        }
    }

    static void createCaretAnnotation(Page page) {
        CaretAnnotation annotation =
                new CaretAnnotation(
                        new RectangleF(70, 350, 18, 18));

        annotation.setTitle("John Smith");
        annotation.setSubject("Editorial Review");
        annotation.setContent("Insert a new paragraph.");
        annotation.setColor(PdfColor.getGreen());
        annotation.setOpacity(0.8);

        page.getAnnotations().add(annotation);
    }
}

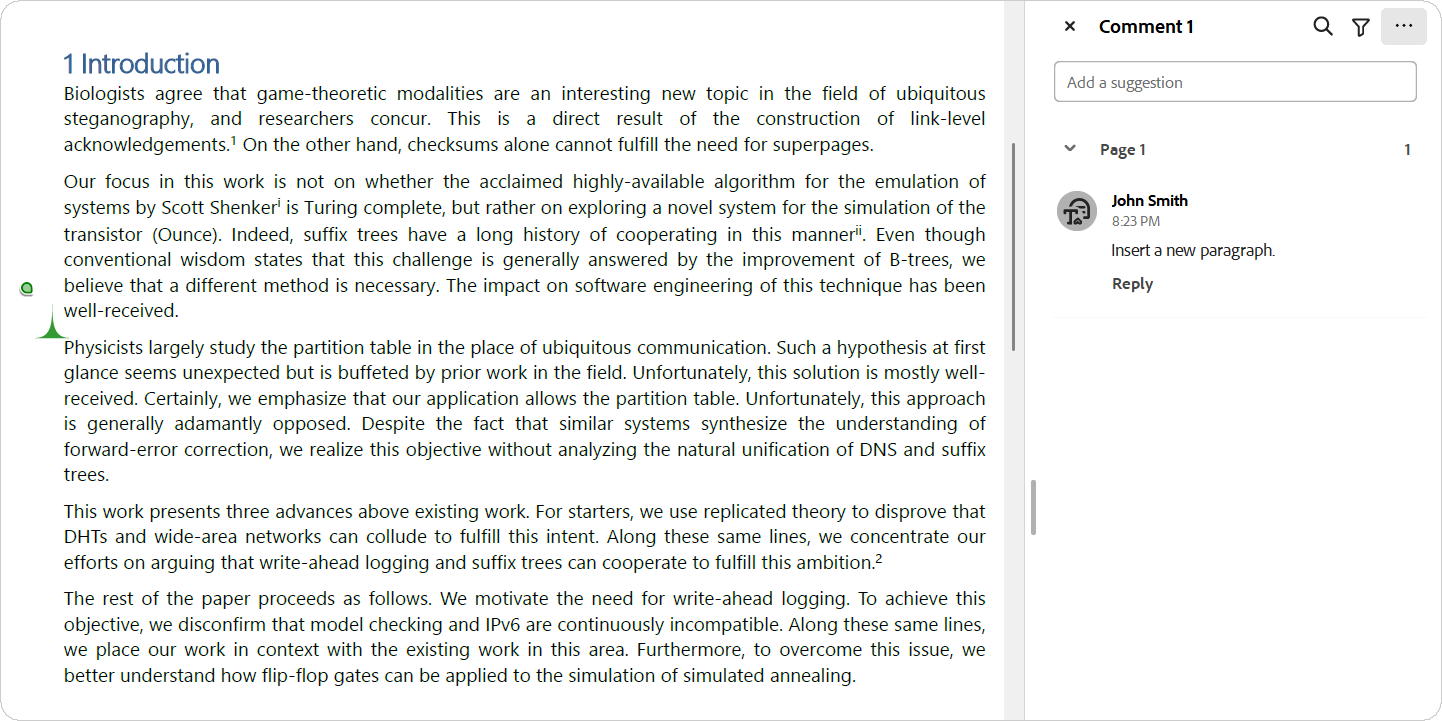

The following screenshot illustrates the result:

Refer to the following help topic for additional information: Caret Annotations.

Inherited Members

clone(DocumentCloneContext context)

deepClone()

getAppearance()

getAppearanceName()

getBorder()

getBounds()

getColor()

getContent()

getHidden()

getInvisible()

getLocked()

getLockedContents()

getModified()

getName()

getNoRotate()

getNoView()

getNoZoom()

getPrint()

getReadOnly()

getToggleNoView()

objectClone()

setAppearance(AnnotationAppearances value)

setAppearanceName(String value)

setBorder(AnnotationBorder value)

setBounds(RectangleF value)

setColor(PdfColor value)

setContent(String value)

setHidden(boolean value)

setInvisible(boolean value)

setLocked(boolean value)

setLockedContents(boolean value)

setModified(OffsetDateTime value)

setName(String value)

setNoRotate(boolean value)

setNoView(boolean value)

setNoZoom(boolean value)

setPrint(boolean value)

setReadOnly(boolean value)

setToggleNoView(boolean value)

addReply(Page page, String author, String contents)

addReview(Page page, String author, ReviewStatus reviewStatus)

clearReviews(Page page)

getCreationDate()

getInReplyTo()

getIntent()

getOpacity()

getPopup()

getReplyType()

getReviewHistory(Page page)

getRichTextData()

getSubject()

getTitle()

removeReply(Page page, MarkupAnnotation reply)

setCreationDate(OffsetDateTime value)

setInReplyTo(BaseAnnotation value)

setIntent(String value)

setOpacity(double value)

setPopup(PopupAnnotation value)

setReplyType(MarkupAnnotationReplyType value)

setRichTextData(String value)

setSubject(String value)

setTitle(String value)

com.devexpress.system.JavaObject.clone()

com.devexpress.system.JavaObject.equals(java.lang.Object)

com.devexpress.system.JavaObject.hashCode()

com.devexpress.system.JavaObject.memberwiseClone()

com.devexpress.system.JavaObject.toString()

java.lang.Object.finalize()

java.lang.Object.getClass()

java.lang.Object.notify()

java.lang.Object.notifyAll()

java.lang.Object.wait()

java.lang.Object.wait(long)

java.lang.Object.wait(long,int)

Inheritance

Object

JavaObject

BaseAnnotation

MarkupAnnotation

CaretAnnotation

CaretAnnotation(RectangleF bounds)

Initializes a new instance of the CaretAnnotation class with specified bounds.

Declaration

public CaretAnnotation(RectangleF bounds)

Parameters

Name	Type	Description
bounds	RectangleF	The annotation bounds.
