PolylineAnnotation Class

Defines a PDF polyline annotation.

Declaration

public class PolylineAnnotation extends UnclosedPathAnnotation

Remarks

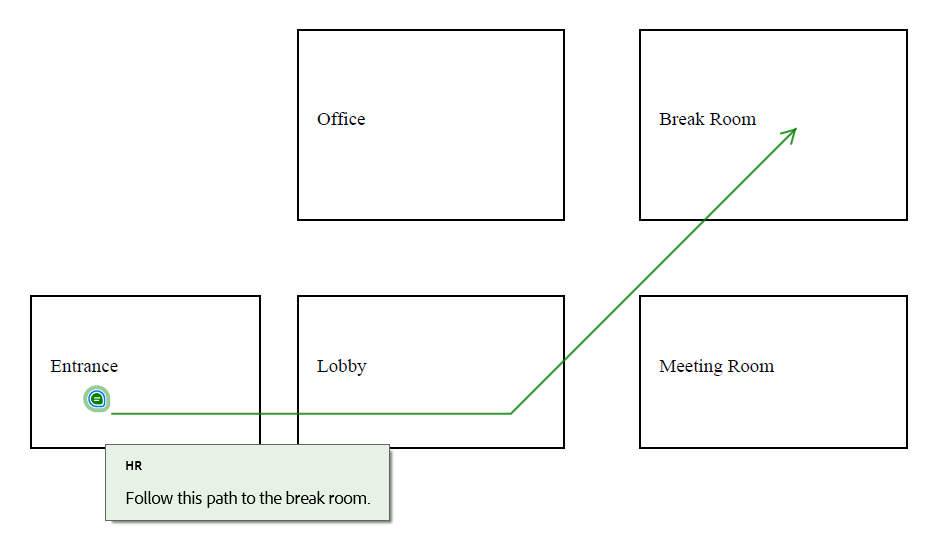

The following code snippet draws a polyline annotation:

package pdf;

import com.devexpress.docs.*;
import com.devexpress.docs.pdf.*;
import com.devexpress.system.drawing.*;

import java.nio.channels.*;
import java.nio.file.*;
import java.util.List;

public class Main {
    public static void main(String[] args) throws Exception {
        try (FileChannel fileChannel = FileChannel.open(Path.of("Office-Floor-Plan.pdf"));
             PdfDocument pdfDocument = new PdfDocument(fileChannel)) {

            Page page = pdfDocument.getPages().getFirst();

            createPolylineAnnotation(page);

            try (WritableByteChannel channel =
                         FileChannel.open(Path.of("Result.pdf"),
                                 StandardOpenOption.CREATE,
                                 StandardOpenOption.WRITE,
                                 StandardOpenOption.TRUNCATE_EXISTING)) {

                pdfDocument.save(channel);
            }
        }
    }

    static void createPolylineAnnotation(Page page) {
        List<PointF> vertices = List.of(
                new PointF(140, 450),
                new PointF(350, 450),
                new PointF(500, 600));

        PolylineAnnotation annotation = new PolylineAnnotation(vertices);

        annotation.setTitle("HR");
        annotation.setContent("Follow this path to the break room.");
        annotation.setColor(PdfColor.getGreen());
        annotation.setFinishLineEnding(AnnotationLineEndingStyle.OPEN_ARROW);

        page.getAnnotations().add(annotation);
    }
}

Refer to the following help topic for additional information: Drawing Annotations.

Inherited Members

clone(DocumentCloneContext context)

deepClone()

getAppearance()

getAppearanceName()

getBorder()

getBounds()

getColor()

getContent()

getHidden()

getInvisible()

getLocked()

getLockedContents()

getModified()

getName()

getNoRotate()

getNoView()

getNoZoom()

getPrint()

getReadOnly()

getToggleNoView()

objectClone()

setAppearance(AnnotationAppearances value)

setAppearanceName(String value)

setBorder(AnnotationBorder value)

setBounds(RectangleF value)

setColor(PdfColor value)

setContent(String value)

setHidden(boolean value)

setInvisible(boolean value)

setLocked(boolean value)

setLockedContents(boolean value)

setModified(OffsetDateTime value)

setName(String value)

setNoRotate(boolean value)

setNoView(boolean value)

setNoZoom(boolean value)

setPrint(boolean value)

setReadOnly(boolean value)

setToggleNoView(boolean value)

addReply(Page page, String author, String contents)

addReview(Page page, String author, ReviewStatus reviewStatus)

clearReviews(Page page)

getCreationDate()

getInReplyTo()

getIntent()

getOpacity()

getPopup()

getReplyType()

getReviewHistory(Page page)

getRichTextData()

getSubject()

getTitle()

removeReply(Page page, MarkupAnnotation reply)

setCreationDate(OffsetDateTime value)

setInReplyTo(BaseAnnotation value)

setIntent(String value)

setOpacity(double value)

setPopup(PopupAnnotation value)

setReplyType(MarkupAnnotationReplyType value)

setRichTextData(String value)

setSubject(String value)

setTitle(String value)

getBorderStyle()

getInteriorColor()

getMeasure()

getVertices()

setBorderStyle(AnnotationBorderStyle value)

setInteriorColor(PdfColor value)

setMeasure(RectilinearMeasure value)

setVertices(List<PointF> value)

getFinishLineEnding()

getStartLineEnding()

setFinishLineEnding(AnnotationLineEndingStyle value)

setStartLineEnding(AnnotationLineEndingStyle value)

com.devexpress.system.JavaObject.clone()

com.devexpress.system.JavaObject.equals(java.lang.Object)

com.devexpress.system.JavaObject.hashCode()

com.devexpress.system.JavaObject.memberwiseClone()

com.devexpress.system.JavaObject.toString()

java.lang.Object.finalize()

java.lang.Object.getClass()

java.lang.Object.notify()

java.lang.Object.notifyAll()

java.lang.Object.wait()

java.lang.Object.wait(long)

java.lang.Object.wait(long,int)

Inheritance

Object

JavaObject

BaseAnnotation

MarkupAnnotation

PathAnnotation

UnclosedPathAnnotation

PolylineAnnotation

PolylineAnnotation(List<PointF> vertices)

Initializes a new instance of the PolylineAnnotation class with specified vertices.

Declaration

public PolylineAnnotation(List<PointF> vertices)

Parameters

Name	Type	Description
vertices	java.util.List<com.devexpress.system.drawing.PointF>	The polyline annotation vertices.

Methods

getPolylineIntent() Method

Returns the polyline annotation intent.

Declaration

public PolylineAnnotationIntent getPolylineIntent()

Returns

Type	Description
PolylineAnnotationIntent	The polyline annotation intent.

setPolylineIntent(PolylineAnnotationIntent value) Method

Sets the polyline annotation intent.

Declaration

public void setPolylineIntent(PolylineAnnotationIntent value)

Parameters

Name	Type	Description
value	PolylineAnnotationIntent	The polyline annotation intent.
