RubberStampAnnotation Class

Defines a PDF rubber stamp annotation.

Declaration

public class RubberStampAnnotation extends MarkupAnnotation

Remarks

You can use rubber stamp annotations to display predefined or custom stamps on a PDF page, such as to indicate a document’s status, review result, or workflow stage.

The PDF Document API supports the following stamp types:

Built-in static stamps
Built-in dynamic stamps
Custom stamps

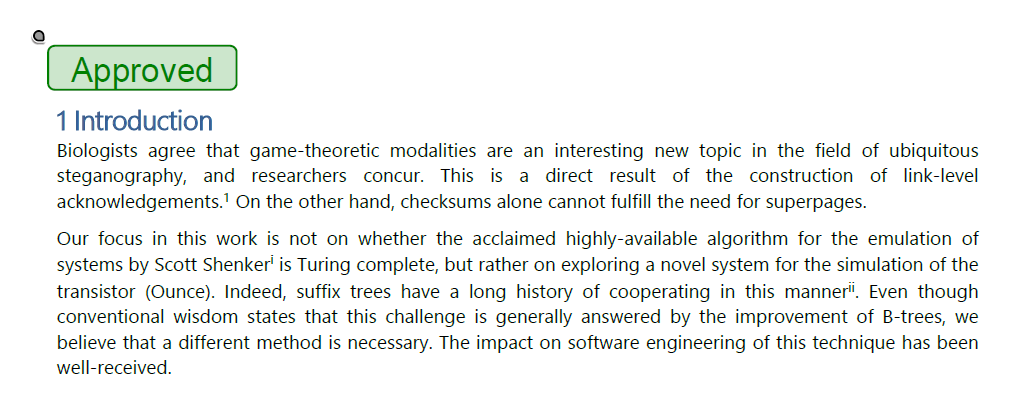

The following code snippet adds an Approved stamp to the first page:

Rubber Stamp Annotation, DevExpress PDF Document API for Java

package pdf;

import com.devexpress.docs.pdf.*;
import com.devexpress.system.drawing.*;

import java.nio.channels.*;
import java.nio.file.*;
import java.time.*;

public class Main {
    public static void main(String[] args) throws Exception {
        try (FileChannel fileChannel = FileChannel.open(Path.of("Document.pdf"));
             PdfDocument pdfDocument = new PdfDocument(fileChannel)) {

            Page page = pdfDocument.getPages().getFirst();

            createRubberStampAnnotation(page);

            // Save the document.
            try (WritableByteChannel channel =
                         FileChannel.open(Path.of("Result.pdf"),
                                 StandardOpenOption.CREATE,
                                 StandardOpenOption.WRITE,
                                 StandardOpenOption.TRUNCATE_EXISTING)) {

                pdfDocument.save(channel);
            }
        }
    }

    static void createRubberStampAnnotation(Page page) {
        RubberStampAnnotation stamp =
                new RubberStampAnnotation(
                        new RectangleF(80, 510, 100, 24),
                        RubberStampAnnotationIconName.Approved);

        // Specify annotation information.
        stamp.setTitle("John Smith");
        stamp.setSubject("Review");
        stamp.setContent("Approved for publication.");
        stamp.setCreationDate(OffsetDateTime.now());

        page.getAnnotations().add(stamp);
    }
}

Refer to the following help topic for additional information: Rubber Stamp Annotations.

Inherited Members

clone(DocumentCloneContext context)

setAppearance(AnnotationAppearances value)

setAppearanceName(String value)

setBorder(AnnotationBorder value)

setBounds(RectangleF value)

setColor(PdfColor value)

setContent(String value)

setHidden(boolean value)

setInvisible(boolean value)

setLocked(boolean value)

setLockedContents(boolean value)

setModified(OffsetDateTime value)

setName(String value)

setNoRotate(boolean value)

setNoView(boolean value)

setNoZoom(boolean value)

setPrint(boolean value)

setReadOnly(boolean value)

setToggleNoView(boolean value)

addReply(Page page, String author, String contents)

addReview(Page page, String author, ReviewStatus reviewStatus)

clearReviews(Page page)

getReviewHistory(Page page)

getRichTextData()

getSubject()

getTitle()

removeReply(Page page, MarkupAnnotation reply)

setCreationDate(OffsetDateTime value)

setInReplyTo(BaseAnnotation value)

setIntent(String value)

setOpacity(double value)

setPopup(PopupAnnotation value)

setReplyType(MarkupAnnotationReplyType value)

setRichTextData(String value)

setSubject(String value)

setTitle(String value)

com.devexpress.system.JavaObject.clone()

com.devexpress.system.JavaObject.equals(java.lang.Object)

com.devexpress.system.JavaObject.hashCode()

com.devexpress.system.JavaObject.memberwiseClone()

com.devexpress.system.JavaObject.toString()

java.lang.Object.finalize()

java.lang.Object.getClass()

java.lang.Object.notify()

java.lang.Object.notifyAll()

java.lang.Object.wait()

java.lang.Object.wait(long)

java.lang.Object.wait(long,int)

Inheritance

Object

JavaObject

BaseAnnotation

MarkupAnnotation

RubberStampAnnotation

Constructors

RubberStampAnnotation(RectangleF bounds, InputStream documentStream, int pageIndex) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified bounds, document stream, and page index.

Declaration

public RubberStampAnnotation(RectangleF bounds, InputStream documentStream, int pageIndex)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
documentStream	InputStream	The stream that contains the PDF document used to generate the stamp.
pageIndex	int	The zero-based index of the document page that contains the stamp.

RubberStampAnnotation(RectangleF bounds, InputStream documentStream) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified bounds and document stream.

Declaration

public RubberStampAnnotation(RectangleF bounds, InputStream documentStream)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
documentStream	InputStream	The stream that contains the PDF document used to generate the stamp.

Remarks

If you created the annotation with the RubberStampAnnotation(RectangleF, InputStream) constructor, do not pass the same stream to setCustomIcon(). The constructor already applies the custom icon and consumes the stream. Use a new stream or reset the stream position before calling this method.

RubberStampAnnotation(RectangleF bounds, Page page) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified settings.

Declaration

public RubberStampAnnotation(RectangleF bounds, Page page)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
page	Page	The page that contains the stamp.

RubberStampAnnotation(RectangleF bounds, PdfDocument document, int pageIndex) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified bounds, PDF document, and page index.

Declaration

public RubberStampAnnotation(RectangleF bounds, PdfDocument document, int pageIndex)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
document	PdfDocument	The PDF document used to generate the stamp.
pageIndex	int	The zero-based index of the document page that contains the stamp.

RubberStampAnnotation(RectangleF bounds, PdfDocument document) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified stamp bounds and PDF document.

Declaration

public RubberStampAnnotation(RectangleF bounds, PdfDocument document)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
document	PdfDocument	The PDF document used to generate the stamp.

RubberStampAnnotation(RectangleF bounds, ReadableByteChannel documentStream, int pageIndex) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified stamp bounds, channel, and page index.

Declaration

public RubberStampAnnotation(RectangleF bounds, ReadableByteChannel documentStream, int pageIndex)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
documentStream	ReadableByteChannel	The PDF document channel that contains the stamp.
pageIndex	int	The zero-based index of the document page that contains the stamp.

RubberStampAnnotation(RectangleF bounds, ReadableByteChannel documentStream) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified stamp bounds and channel.

Declaration

public RubberStampAnnotation(RectangleF bounds, ReadableByteChannel documentStream)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
documentStream	ReadableByteChannel	The channel that contains the PDF document used to generate the stamp.

RubberStampAnnotation(RectangleF bounds, RubberStampAnnotationIconName iconName) Constructor

Initializes a new instance of the RubberStampAnnotation class with specified bounds and rubber stamp annotation icon name.

Declaration

public RubberStampAnnotation(RectangleF bounds, RubberStampAnnotationIconName iconName)

Parameters

Name	Type	Description
bounds	RectangleF	The rubber stamp annotation bounds.
iconName	RubberStampAnnotationIconName	The rubber stamp annotation icon name.

Methods

getIconName() Method

Returns the rubber stamp annotation icon name.

Declaration

public RubberStampAnnotationIconName getIconName()

Returns

Type	Description
RubberStampAnnotationIconName	The rubber stamp annotation icon name.

setCustomIcon(InputStream stream, int pageIndex) Method

Sets a custom icon for the rubber stamp annotation from the specified PDF document stream.

Declaration

public void setCustomIcon(InputStream stream, int pageIndex)

Parameters

Name	Type	Description
stream	InputStream	The PDF document stream.
pageIndex	int	The zero-based index of the document page that contains the content used as the custom icon.

setCustomIcon(Page page) Method

Sets a custom icon for the rubber stamp annotation from the specified page.

Declaration

public void setCustomIcon(Page page)

Parameters

Name	Type	Description
page	Page	The page that contains the content used as the custom icon.

Remarks

Refer to the following help topic for additional information: Create a Custom Stamp from a PDF Page.

setCustomIcon(PdfDocument document, int pageIndex) Method

Sets a custom icon for the rubber stamp annotation from the specified PDF document.

Declaration

public void setCustomIcon(PdfDocument document, int pageIndex)

Parameters

Name	Type	Description
document	PdfDocument	The PDF document.
pageIndex	int	The zero-based index of the document page that contains the content used as the custom icon.

setCustomIcon(ReadableByteChannel stream, int pageIndex) Method

Sets a custom icon for the rubber stamp annotation from the specified PDF document channel.

Declaration

public void setCustomIcon(ReadableByteChannel stream, int pageIndex)

Parameters

Name	Type	Description
stream	ReadableByteChannel	The PDF document channel.
pageIndex	int	The zero-based index of the document page that contains the content used as the custom icon.

Remarks

If you created the annotation with the RubberStampAnnotation(RectangleF, ReadableByteChannel) constructor, do not pass the same stream to setCustomIcon(). The constructor already applies the custom icon and consumes the stream. Use a new stream or reset the stream position before calling this method.

setIconName(RubberStampAnnotationIconName value) Method

Sets the rubber stamp annotation icon name.

Declaration

public void setIconName(RubberStampAnnotationIconName value)

Parameters

Name	Type	Description
value	RubberStampAnnotationIconName	The rubber stamp annotation icon name.

Remarks

Dynamic stamps display additional information, such as the title or creation date.

The PDF Document API supports the following dynamic stamp icons:

Icon	Description	Preview
`DApproved`	Approved
`DReviewed`	Reviewed
`DRevised`	Revised
`DConfidential`	Confidential
`DReceived`	Received

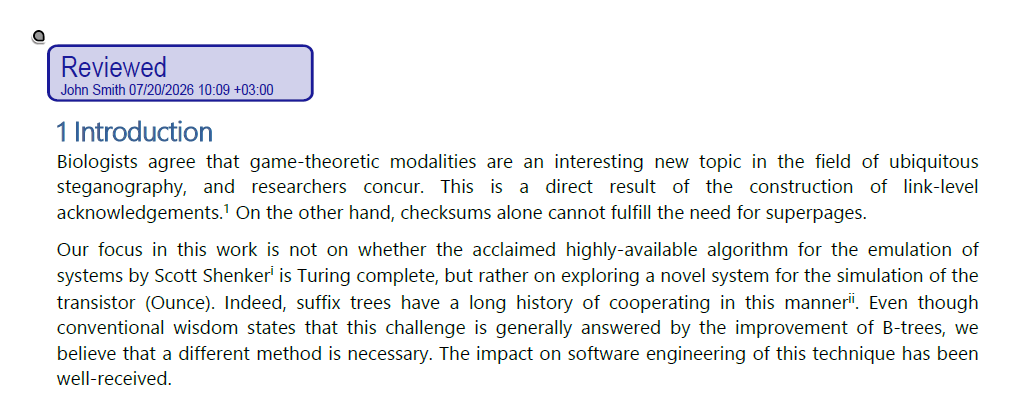

The following code snippet creates a dynamic Reviewed stamp:

Dynamic Rubber Stamp Annotation, DevExpress PDF Document API for Java

void createRubberStampDynamicAnnotation(Page page) {
    RubberStampAnnotation stamp =
            new RubberStampAnnotation(
                    new RectangleF(80, 510, 140, 30),
                    RubberStampAnnotationIconName.DReviewed);

    // Specify annotation information.
    stamp.setTitle("John Smith");
    stamp.setSubject("Review");
    stamp.setContent("Reviewed.");
    stamp.setCreationDate(OffsetDateTime.now());

    page.getAnnotations().add(stamp);
}

Refer to the following help topic for additional information: Rubber Stamp Annotations.
