InkAnnotation Class
Defines an ink annotation.
Declaration
public class InkAnnotation extends MarkupAnnotationRemarks

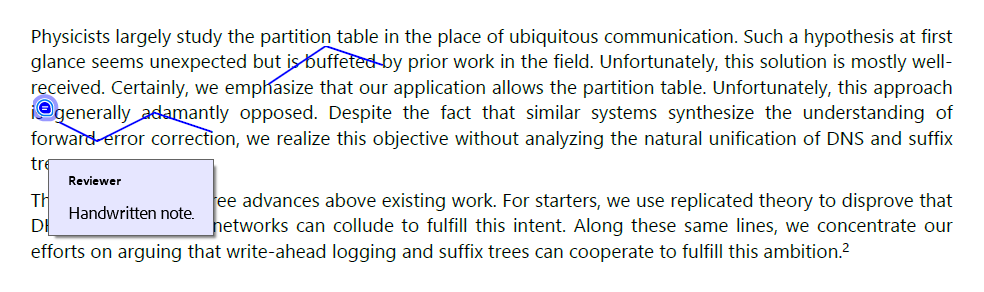

Ink annotations display handwritten marks or freeform drawing paths on a PDF page.
The following code snippet adds a freehand drawing to the first page:
package pdf;
import com.devexpress.docs.pdf.*;
import com.devexpress.system.drawing.*;
import java.nio.channels.*;
import java.nio.file.*;
import java.util.List;
public class Main {
public static void main(String[] args) throws Exception {
try (FileChannel fileChannel = FileChannel.open(Path.of("Document.pdf"));
PdfDocument pdfDocument = new PdfDocument(fileChannel)) {
Page page = pdfDocument.getPages().getFirst();
createInkAnnotation(page);
try (WritableByteChannel channel =
FileChannel.open(Path.of("Result.pdf"),
StandardOpenOption.CREATE,
StandardOpenOption.WRITE,
StandardOpenOption.TRUNCATE_EXISTING)) {
pdfDocument.save(channel);
}
}
}
static void createInkAnnotation(Page page) {
List<PointF[]> inks = List.of(
new PointF[] { new PointF(100, 300),
new PointF(120, 290),
new PointF(150, 305),
new PointF(180, 295)
},
new PointF[] {
new PointF(210, 320),
new PointF(240, 340),
new PointF(270, 330)
}
);
InkAnnotation annotation = new InkAnnotation(new RectangleF(80, 780, 260, 120));
annotation.setInks(inks);
annotation.setTitle("Reviewer");
annotation.setContent("Handwritten note.");
annotation.setColor(PdfColor.getBlue());
page.getAnnotations().add(annotation);
}
}
Refer to the following help topic for additional information: Drawing Annotations.
Inherited Members
com.devexpress.system.JavaObject.clone()
com.devexpress.system.JavaObject.equals(java.lang.Object)
com.devexpress.system.JavaObject.hashCode()
com.devexpress.system.JavaObject.memberwiseClone()
com.devexpress.system.JavaObject.toString()
java.lang.Object.finalize()
java.lang.Object.getClass()
java.lang.Object.notify()
java.lang.Object.notifyAll()
java.lang.Object.wait()
java.lang.Object.wait(long)
java.lang.Object.wait(long,int)
Inheritance
Object
JavaObject
BaseAnnotation
MarkupAnnotation
InkAnnotation
InkAnnotation(RectangleF bounds)
Initializes a new instance of the InkAnnotation class with specified bounds.
Declaration
public InkAnnotation(RectangleF bounds)Parameters
| Name | Type | Description |
|---|---|---|
| bounds | RectangleF | The annotation bounds. |
Methods
getBorderStyle() Method
Returns the ink annotation border style.
Declaration
public AnnotationBorderStyle getBorderStyle()Returns
| Type | Description |
|---|---|
| AnnotationBorderStyle | The ink annotation border style. |
getInks() Method
Returns the ink annotation paths.
Declaration
public List<PointF[]> getInks()Returns
| Type | Description |
|---|---|
| java.util.List<com.devexpress.system.drawing.PointF[]> | The ink annotation paths. |
setBorderStyle(AnnotationBorderStyle value) Method
Sets the ink annotation border style.
Declaration
public void setBorderStyle(AnnotationBorderStyle value)Parameters
| Name | Type | Description |
|---|---|---|
| value | AnnotationBorderStyle | The ink annotation border style. |
setInks(List<PointF[]> value) Method
Sets the ink annotation paths.
Declaration
public void setInks(List<PointF[]> value)Parameters
| Name | Type | Description |
|---|---|---|
| value | java.util.List<com.devexpress.system.drawing.PointF[]> | The ink annotation paths. |
