LineAnnotation Class
Defines a line annotation.
Declaration
public class LineAnnotation extends UnclosedPathAnnotationRemarks

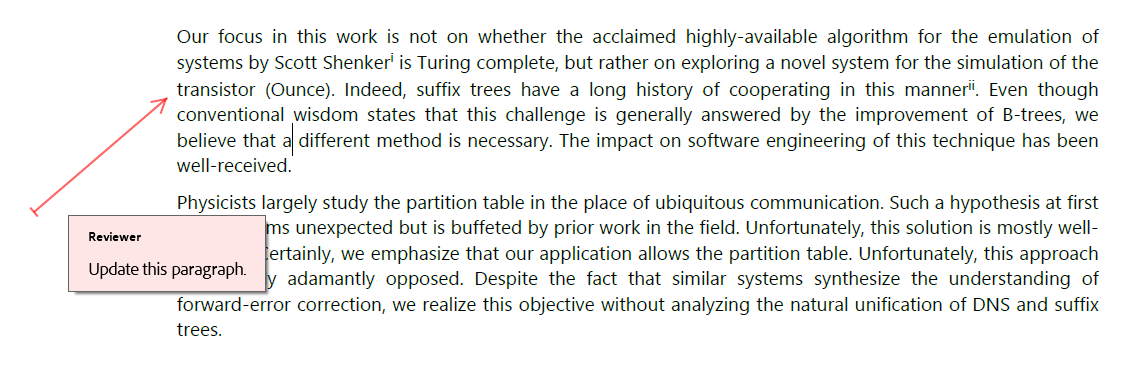

The following code snippet draws a line annotation:
package pdf;
import com.devexpress.docs.*;
import com.devexpress.docs.pdf.*;
import com.devexpress.system.drawing.*;
import java.nio.channels.*;
import java.nio.file.*;
public class Main {
public static void main(String[] args) throws Exception {
try (FileChannel fileChannel = FileChannel.open(Path.of("Document.pdf"));
PdfDocument pdfDocument = new PdfDocument(fileChannel)) {
Page page = pdfDocument.getPages().getFirst();
createLineAnnotation(page);
try (WritableByteChannel channel =
FileChannel.open(Path.of("Result.pdf"),
StandardOpenOption.CREATE,
StandardOpenOption.WRITE,
StandardOpenOption.TRUNCATE_EXISTING)) {
pdfDocument.save(channel);
}
}
}
static void createLineAnnotation(Page page) {
LineAnnotation annotation =
new LineAnnotation(
new PointF(10, 340),
new PointF(80, 400));
annotation.setTitle("Reviewer");
annotation.setSubject("Content Review");
annotation.setContent("Update this paragraph.");
annotation.setColor(PdfColor.getRed());
annotation.setOpacity(0.6);
annotation.setStartLineEnding(AnnotationLineEndingStyle.BUTT);
annotation.setFinishLineEnding(AnnotationLineEndingStyle.OPEN_ARROW);
page.getAnnotations().add(annotation);
}
}
Refer to the following help topic for additional information: Drawing Annotations.
Inherited Members
Inheritance
LineAnnotation(PointF startPoint, PointF endPoint)
Initializes a new instance of the LineAnnotation class with the specified start and end points.
Declaration
public LineAnnotation(PointF startPoint, PointF endPoint)Parameters
| Name | Type | Description |
|---|---|---|
| startPoint | com.devexpress.system.drawing.PointF | The line annotation start point. |
| endPoint | com.devexpress.system.drawing.PointF | The line annotation end point. |
Methods
getCaptionPosition() Method
Returns the line annotation caption position.
Declaration
public LineAnnotationCaptionPosition getCaptionPosition()Returns
| Type | Description |
|---|---|
| LineAnnotationCaptionPosition | The line annotation caption position. |
getEndPoint() Method
Returns the line annotation end point.
Declaration
public PointF getEndPoint()Returns
| Type | Description |
|---|---|
| com.devexpress.system.drawing.PointF | The line annotation end point. |
getHorizontalCaptionOffset() Method
Returns the horizontal caption offset.
Declaration
public double getHorizontalCaptionOffset()Returns
| Type | Description |
|---|---|
| double | The horizontal caption offset. |
getLeaderLineExtensionsLength() Method
Returns the leader line extension length.
Declaration
public double getLeaderLineExtensionsLength()Returns
| Type | Description |
|---|---|
| double | The leader line extension length. |
getLeaderLineOffset() Method
Returns the leader line offset.
Declaration
public double getLeaderLineOffset()Returns
| Type | Description |
|---|---|
| double | The leader line offset. |
getLeaderLinesLength() Method
Returns the leader line length.
Declaration
public double getLeaderLinesLength()Returns
| Type | Description |
|---|---|
| double | The leader line length. |
getLineIntent() Method
Returns the line annotation intent.
Declaration
public LineAnnotationIntent getLineIntent()Returns
| Type | Description |
|---|---|
| LineAnnotationIntent | The line annotation intent. |
getShowCaption() Method
Returns whether the line annotation caption is displayed.
Declaration
public boolean getShowCaption()Returns
| Type | Description |
|---|---|
| boolean |
|
getStartPoint() Method
Returns the line annotation start point.
Declaration
public PointF getStartPoint()Returns
| Type | Description |
|---|---|
| com.devexpress.system.drawing.PointF | The line annotation start point. |
getVerticalCaptionOffset() Method
Returns the vertical caption offset.
Declaration
public double getVerticalCaptionOffset()Returns
| Type | Description |
|---|---|
| double | The vertical caption offset. |
setCaptionPosition(LineAnnotationCaptionPosition value) Method
Sets the line annotation caption position.
Declaration
public void setCaptionPosition(LineAnnotationCaptionPosition value)Parameters
| Name | Type | Description |
|---|---|---|
| value | LineAnnotationCaptionPosition | The line annotation caption position. |
setEndPoint(PointF value) Method
Sets the line annotation end point.
Declaration
public void setEndPoint(PointF value)Parameters
| Name | Type | Description |
|---|---|---|
| value | com.devexpress.system.drawing.PointF | The line annotation end point. |
setHorizontalCaptionOffset(double value) Method
Sets the horizontal caption offset.
Declaration
public void setHorizontalCaptionOffset(double value)Parameters
| Name | Type | Description |
|---|---|---|
| value | double | The horizontal caption offset. |
setLeaderLineExtensionsLength(double value) Method
Sets the leader line extension length.
Declaration
public void setLeaderLineExtensionsLength(double value)Parameters
| Name | Type | Description |
|---|---|---|
| value | double | The leader line extension length. |
setLeaderLineOffset(double value) Method
Sets the leader line offset.
Declaration
public void setLeaderLineOffset(double value)Parameters
| Name | Type | Description |
|---|---|---|
| value | double | The leader line offset. |
setLeaderLinesLength(double value) Method
Sets the leader line length.
Declaration
public void setLeaderLinesLength(double value)Parameters
| Name | Type | Description |
|---|---|---|
| value | double | The leader line length. |
setLineIntent(LineAnnotationIntent value) Method
Sets the line annotation intent.
Declaration
public void setLineIntent(LineAnnotationIntent value)Parameters
| Name | Type | Description |
|---|---|---|
| value | LineAnnotationIntent | The line annotation intent. |
setShowCaption(boolean value) Method
Sets whether to display the line annotation caption.
Declaration
public void setShowCaption(boolean value)Parameters
| Name | Type | Description |
|---|---|---|
| value | boolean |
|
setStartPoint(PointF value) Method
Sets the line annotation start point.
Declaration
public void setStartPoint(PointF value)Parameters
| Name | Type | Description |
|---|---|---|
| value | com.devexpress.system.drawing.PointF | The line annotation start point. |
setVerticalCaptionOffset(double value) Method
Sets the vertical caption offset.
Declaration
public void setVerticalCaptionOffset(double value)Parameters
| Name | Type | Description |
|---|---|---|
| value | double | The vertical caption offset. |
