DxPivotTable.ExpandAllColumns() Method

Expands all columns in the Pivot Table component.

Namespace: DevExpress.Blazor.PivotTable

Assembly: DevExpress.Blazor.PivotTable.v26.1.dll

Declaration

public void ExpandAllColumns()

Remarks

Call the ExpandAllColumns or CollapseAllColumns method to expand or collapse all columns in the Pivot Table component.

Note

When bound to a Server Mode data source, the Pivot Table loads data asynchronously in small portions (instead of the entire dataset). Call the WaitForDataLoadAsync method before you execute ExpandAllColumns to ensure correct data operations.

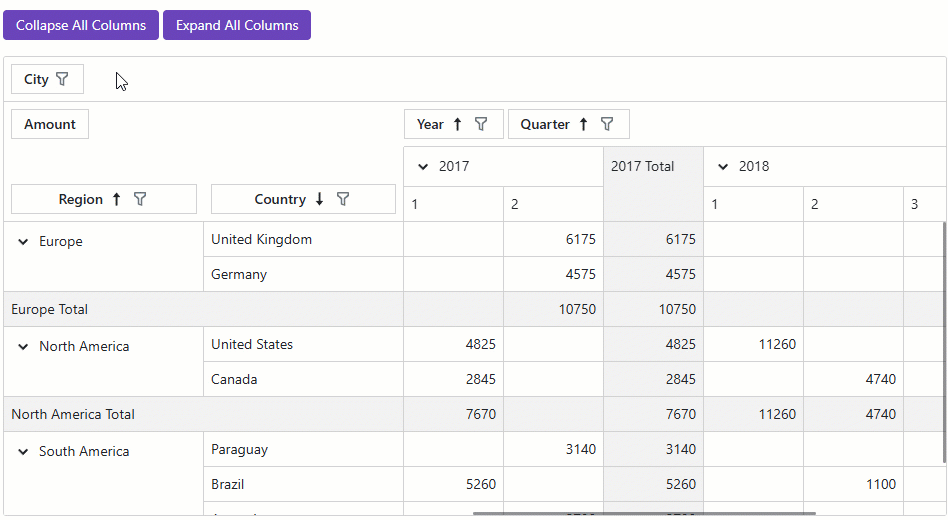

The following code adds two buttons: Collapse All Columns and Expand All Columns.

Razor

@rendermode InteractiveServer

<DxButton Text="Collapse All Columns" Click="OnCollapseClick" />
<DxButton Text="Expand All Columns" Click="OnExpandClick" />
<p/>

<DxPivotTable Data="SalesData" class="h-460" @ref=MyPivotTable >
    <Fields>
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Region)"
                           Area="@PivotTableArea.Row"
                           AreaIndex="0" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Country)"
                           Area="@PivotTableArea.Row"
                           SortOrder="@PivotTableSortOrder.Descending"
                           AreaIndex="1" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Date)"
                           GroupInterval="@PivotTableGroupInterval.DateYear"
                           Area="@PivotTableArea.Column"
                           AreaIndex="0"
                           Caption="Year" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Date)"
                           GroupInterval="@PivotTableGroupInterval.DateQuarter"
                           Area="@PivotTableArea.Column"
                           AreaIndex="1"
                           Caption="Quarter" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.Amount)"
                           SortOrder="@PivotTableSortOrder.Ascending"
                           Area="@PivotTableArea.Data"
                           SummaryType="@PivotTableSummaryType.Sum" />
        <DxPivotTableField Field="@nameof(Sales.SaleInfo.City)"
                           Area="@PivotTableArea.Filter"/>
    </Fields>
</DxPivotTable>

@code {
    IPivotTable MyPivotTable { get; set; }
    PivotTablePersistentLayout Layout { get; set; }
    IEnumerable<Sales.SaleInfo> SalesData;
    protected override async Task OnInitializedAsync() {
        SalesData = await Sales.GetSalesAsync();
    }

    void OnCollapseClick() {
        MyPivotTable.CollapseAllColumns();
    }

    void OnExpandClick() {
        MyPivotTable.ExpandAllColumns();
    }
}

Sales.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

public class Sales {
    static IList<SaleInfo> dataSource;

    public class SaleInfo {
        public int OrderId { get; set; }
        public string Region { get; set; }
        public string Country { get; set; }
        public string City { get; set; }
        public int Amount { get; set; }
        public DateTime Date { get; set; }
    }

    static Sales() {
        CreateDataSource();
    }

    public static Task<IQueryable<SaleInfo>> GetSalesAsync() {
        return Task.FromResult(dataSource.AsQueryable());
    }

    static void CreateDataSource() {
        dataSource = new List<SaleInfo> {
        new SaleInfo {
            OrderId = 10248,
            Region = "North America",
            Country = "United States",
            City = "New York",
            Amount = 1740,
            Date = DateTime.Parse("2017/01/06")
        },
        new SaleInfo {
            OrderId = 10249,
            Region = "North America",
            Country = "United States",
            City = "Los Angeles",
            Amount = 850,
            Date = DateTime.Parse("2017/02/13")
        },
        new SaleInfo {
            OrderId = 10250,
            Region = "North America",
            Country = "United States",
            City = "Denver",
            Amount = 2235,
            Date = DateTime.Parse("2017/02/07")
        },
        new SaleInfo {
            OrderId = 10251,
            Region = "North America",
            Country = "Canada",
            City = "Vancouver",
            Amount = 1965,
            Date = DateTime.Parse("2017/03/03")
        },
        new SaleInfo {
            OrderId = 10252,
            Region = "North America",
            Country = "Canada",
            City = "Edmonton",
            Amount = 880,
            Date = DateTime.Parse("2017/03/10")
        },
        new SaleInfo {
            OrderId = 10253,
            Region = "South America",
            Country = "Brazil",
            City = "Rio de Janeiro",
            Amount = 5260,
            Date = DateTime.Parse("2017/01/17")
        },
        new SaleInfo {
            OrderId = 10254,
            Region = "South America",
            Country = "Argentina",
            City = "Buenos Aires",
            Amount = 2790,
            Date = DateTime.Parse("2017/05/21")
        },
        new SaleInfo {
            OrderId = 10255,
            Region = "South America",
            Country = "Paraguay",
            City = "Asuncion",
            Amount = 3140,
            Date = DateTime.Parse("2017/05/01")
        },
        new SaleInfo {
            OrderId = 10256,
            Region = "Europe",
            Country = "United Kingdom",
            City = "London",
            Amount = 6175,
            Date = DateTime.Parse("2017/06/24")
        },
        new SaleInfo {
            OrderId = 10257,
            Region = "Europe",
            Country = "Germany",
            City = "Berlin",
            Amount = 4575,
            Date = DateTime.Parse("2017/06/11")
        },
        new SaleInfo {
            OrderId = 10517,
            Region = "North America",
            Country = "United States",
            City = "New York",
            Amount = 7710,
            Date = DateTime.Parse("2018/07/18")
        },
        new SaleInfo {
            OrderId = 10518,
            Region = "North America",
            Country = "United States",
            City = "Los Angeles",
            Amount = 7975,
            Date = DateTime.Parse("2018/01/10")
        },
        new SaleInfo {
            OrderId = 10519,
            Region = "North America",
            Country = "United States",
            City = "Denver",
            Amount = 3285,
            Date = DateTime.Parse("2018/03/13")
        },
        new SaleInfo {
            OrderId = 10520,
            Region = "North America",
            Country = "Canada",
            City = "Vancouver",
            Amount = 2580,
            Date = DateTime.Parse("2018/04/22")
        },
        new SaleInfo {
            OrderId = 10521,
            Region = "North America",
            Country = "Canada",
            City = "Edmonton",
            Amount = 2160,
            Date = DateTime.Parse("2018/05/26")
        },
        new SaleInfo {
            OrderId = 10522,
            Region = "South America",
            Country = "Brazil",
            City = "Rio de Janeiro",
            Amount = 1100,
            Date = DateTime.Parse("2018/05/25")
        },
        new SaleInfo {
            OrderId = 10523,
            Region = "South America",
            Country = "Argentina",
            City = "Buenos Aires",
            Amount = 4425,
            Date = DateTime.Parse("2018/08/21")
        },
        new SaleInfo {
            OrderId = 10524,
            Region = "South America",
            Country = "Paraguay",
            City = "Asuncion",
            Amount = 1360,
            Date = DateTime.Parse("2018/08/22")
        },
        new SaleInfo {
            OrderId = 10525,
            Region = "Europe",
            Country = "United Kingdom",
            City = "London",
            Amount = 3250,
            Date = DateTime.Parse("2018/11/14")
        },
        new SaleInfo {
            OrderId = 10526,
            Region = "Europe",
            Country = "Germany",
            City = "Berlin",
            Amount = 5550,
            Date = DateTime.Parse("2018/12/21")
        },
    };
}

CSS

.h-460 {
    height: 460px;
}

Implements

ExpandAllColumns()
