DashboardViewer.CustomPalette Event

Allows you to substitute a dashboard palette used to paint dashboard item elements.

Namespace: DevExpress.DashboardWin

Assembly: DevExpress.Dashboard.v26.1.Win.dll

Declaration

C#

public event CustomPaletteEventHandler CustomPalette

VB.NET

Public Event CustomPalette As CustomPaletteEventHandler

Event Data

The CustomPalette event's data class is CustomPaletteEventArgs. The following properties provide information specific to this event:

Property	Description
Palette	Gets or sets a palette used to color dashboard item elements.
PaletteName	Gets the name of the selected palette.

Remarks

DevExpress Dashboard uses a set of colors from predefined palettes. Use the DashboardPalette static read-only fields to get predefined dashboard palettes.

Handle the CustomPalette event to substitute a palette. Assign a DashboardPalette (built from DashboardPaletteItem objects that define a color, fill style, and line style) to CustomPaletteEventArgs.Palette.

The following code snippet applies a custom palette for dashboardViewer1:

C#

using DevExpress.DashboardCommon;
using DevExpress.Drawing;
using System.Collections.Generic;
using System.Drawing;

dashboardViewer1.CustomPalette += dashboardViewer1_CustomPalette;

  void dashboardViewer1_CustomPalette(object sender, CustomPaletteEventArgs e){
    // Create a new custom palette.
    List<DashboardPaletteItem> paletteItems = new List<DashboardPaletteItem>();
    paletteItems.Add(new DashboardPaletteItem(Color.SteelBlue));
    paletteItems.Add(new DashboardPaletteItem(Color.SeaGreen, DXHatchStyle.DiagonalCross));
    paletteItems.Add(new DashboardPaletteItem(Color.IndianRed, DXHatchStyle.Sphere, DXDashStyle.Dash));
    paletteItems.Add(new DashboardPaletteItem(Color.Goldenrod));

    // The same palette is applied for every PaletteName.
    e.Palette = new DashboardPalette(paletteItems);
}

VB.NET

Imports DevExpress.DashboardCommon
Imports DevExpress.Drawing
Imports System.Collections.Generic
Imports System.Drawing

Private dashboardViewer1.CustomPalette += AddressOf dashboardViewer1_CustomPalette

Private Sub dashboardViewer1_CustomPalette(ByVal sender As Object, ByVal e As CustomPaletteEventArgs)
  ' Create a new custom palette.
  Dim paletteItems As New List(Of DashboardPaletteItem)()
  paletteItems.Add(New DashboardPaletteItem(Color.SteelBlue))
  paletteItems.Add(New DashboardPaletteItem(Color.SeaGreen, DXHatchStyle.DiagonalCross))
  paletteItems.Add(New DashboardPaletteItem(Color.IndianRed, DXHatchStyle.Sphere, DXDashStyle.Dash))
  paletteItems.Add(New DashboardPaletteItem(Color.Goldenrod))

  ' The same palette is applied for every PaletteName.
  e.Palette = New DashboardPalette(paletteItems)
End Sub

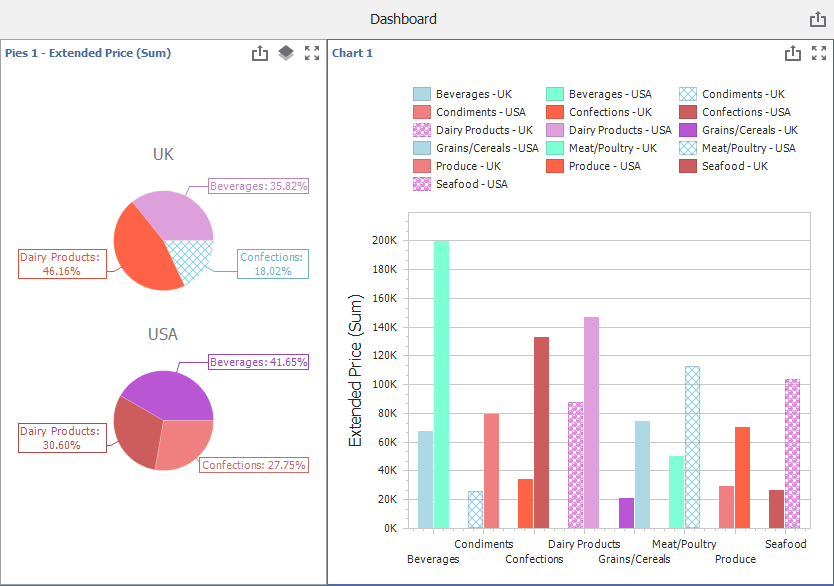

The image below displays the resulting palette:

You can use e.PaletteName in a CustomPalette event handler to identify the requested palette and supply custom colors for it.

Implements

CustomPalette
