How to: Add a Custom Column to the Reports List

• May 12, 2026
• 6 minutes to read

This topic describes how to customize the persistent class for storing reports by adding extra information, such as a Category property. This property appears in the Reports List View and allows users to group, sort, or filter reports accordingly.

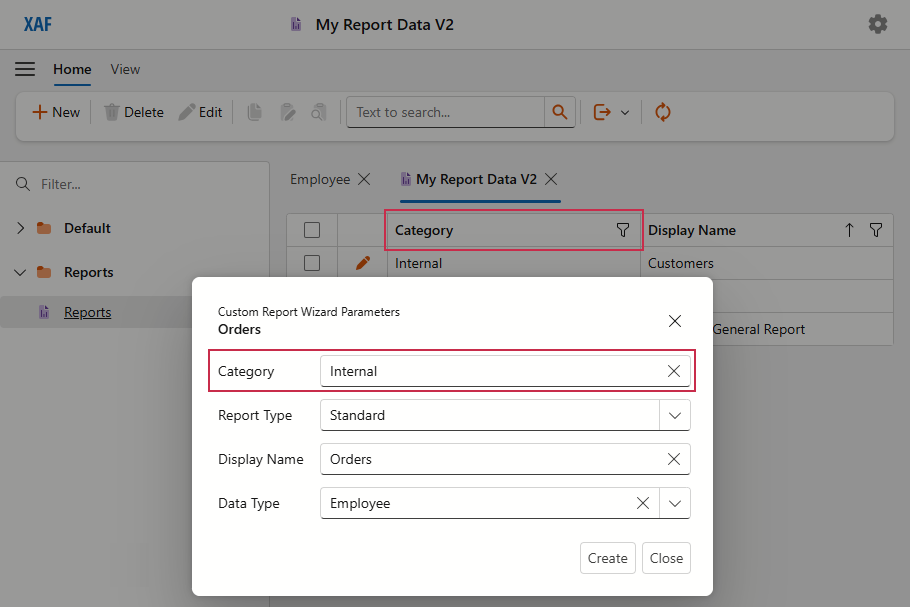

Custom report column in Blazor App

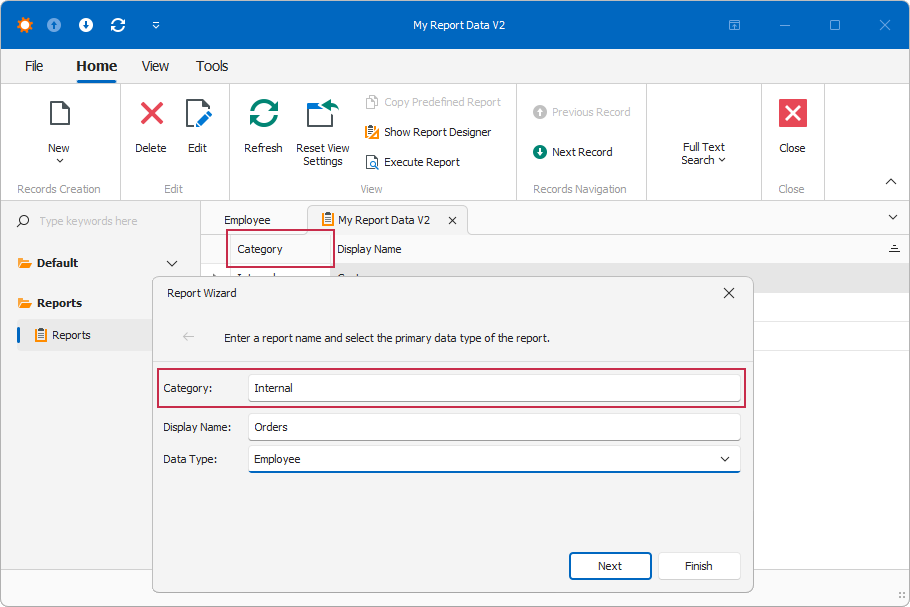

Custom report column in Win App

In this topic, it is assumed that you have an XAF application that uses the Reports V2 Module, and you have created one or more reports (see Reports V2 Module Overview).

Step 1. Create a Custom Report Data Type

Inherit a new MyReportDataV2 class from the ReportDataV2 class and declare the Category property.

File: MySolution.Module\BusinessObjects\MyReportDataV2.cs

EF Core

public class MyReportDataV2 : DevExpress.Persistent.BaseImpl.EF.ReportDataV2 {
    public virtual string Category { get;set; }
}

XPO

public class MyReportDataV2 : DevExpress.Persistent.BaseImpl.ReportDataV2 {
    public MyReportDataV2(Session session) : base(session) { }
    private string category;
    public string Category {
        get { return category; }
        set { SetPropertyValue(nameof(Category), ref category, value); }
     }
}

If you use EF Core, add the MyReportDataV2 class to DbContext:

File: SolutionName.Module\BusinessObjects\SolutionNameDbContext.cs

public class SolutionNameDbContext : DbContext {
    // ...
    public DbSet<MyReportDataV2> MyReportDataV2 { get; set; }
}

Step 2. Specify the ReportDataType Property

Assign the MyReportDataV2 type to the ReportDataType property:

Files: SolutionName.WebApi\Startup.cs, SolutionName.Blazor.Server\Startup.cs, SolutionName.Win\Startup.cs, SolutionName.MiddleTier\Startup.cs.

// ...
builder.Modules
    .AddReports(options => {
        options.ReportDataType = typeof(MyReportDataV2);
        // ...

Step 3. Add the New Property to the Report Wizard

Tip

You can customize the ReportsStorage class to update the property value in code if you do not want the additional property to be initialized by a user.

1. In the platform-agnostic module project, inherit from the NewXafReportWizardParameters class and declare the Category string property.

   File: MySolution.Module\CustomReportWizardParameters.cs

   C#

   using DevExpress.ExpressApp.DC;
   using DevExpress.ExpressApp.ReportsV2;
   using DevExpress.XtraReports.UI;
   // ...
   [DomainComponent]
   public class CustomReportWizardParameters : NewReportWizardParameters {
       public CustomReportWizardParameters(XtraReport report, Type reportDataType) :
           base(report, reportDataType) { }
       public string Category { get; set; }
       public override void AssignData(IReportDataV2Writable reportData) {
           base.AssignData(reportData);
           if (reportData is MyReportDataV2) {
               ((MyReportDataV2)reportData).Category = Category;
           }
       }
   }


2. In the ASP.NET Core Blazor project, create a View Controller. Access the standard BlazorReportServiceController and subscribe to its NewReportWizardShowing event. In the event handler, pass an instance of the CustomReportWizardParameters class to the Report Wizard.

   File: MySolution.Blazor.Server\Controllers\ReportWizardModifyController.cs

   C#

   using DevExpress.ExpressApp;
   using DevExpress.ExpressApp.ReportsV2.Blazor;
   // ...
   public class ReportWizardModifyController : ViewController {
       BlazorReportServiceController reportServiceController;
       public ReportWizardModifyController() { }
       protected override void OnActivated() {
           base.OnActivated();
           reportServiceController = Frame.GetController<BlazorReportServiceController>();
           if(reportServiceController != null) {
               reportServiceController.NewReportWizardShowing += ReportServiceController_NewReportWizardShowing;
           }
       }
       private void ReportServiceController_NewReportWizardShowing(object sender, BlazorNewReportWizardShowingEventArgs e) {
           if(!e.ReportDataType.Equals(typeof(MyReportDataV2)))
               return;
           CustomReportWizardParameters newReportParamsObject =
           new CustomReportWizardParameters(e.WizardParameters.Report, e.WizardParameters.ReportDataType);
           newReportParamsObject.Category = "Default";
           e.WizardParameters = newReportParamsObject;
       }
       protected override void OnDeactivated() {
           reportServiceController.NewReportWizardShowing -= ReportServiceController_NewReportWizardShowing;
           reportServiceController = null;
           base.OnDeactivated();
       }
   }


3. In the WinForms project, perform similar actions. Create a View Controller. Access the standard WinReportServiceController and subscribe to its NewXafReportWizardShowing event. In the event handler, pass an instance of the CustomReportWizardParameters class to the Report Wizard.

   File: MySolution.Win\Controllers\ReportWizardModifyController.cs

   C#

   using DevExpress.ExpressApp;
   using DevExpress.ExpressApp.ReportsV2.Win;
   // ...
   public class ReportWizardModifyController : ViewController {
       WinReportServiceController reportServiceController;
       public ReportWizardModifyController() { }
       protected override void OnActivated() {
           base.OnActivated();
           reportServiceController = Frame.GetController<WinReportServiceController>();
           if (reportServiceController != null) {
               reportServiceController.NewXafReportWizardShowing +=
                   reportServiceController_NewXafReportWizardShowing;
           }
       }
       protected override void OnDeactivated() {
           reportServiceController.NewXafReportWizardShowing -=
               reportServiceController_NewXafReportWizardShowing;
           reportServiceController = null;
           base.OnDeactivated();
       }
       void reportServiceController_NewXafReportWizardShowing(object sender,
           NewXafReportWizardShowingEventArgs e) {
           if (!e.ReportDataType.Equals(typeof(MyReportDataV2))) return;
           CustomReportWizardParameters newReportParamsObject = new
               CustomReportWizardParameters(e.WizardParameters.Report, e.WizardParameters.ReportDataType);
           newReportParamsObject.Category = "Default";
           e.WizardParameters = newReportParamsObject;
       }
   }


Customize the Report Wizard Parameters Window

Steps in the previous section add the following Detail Views to the Application Model:

• View > CustomReportWizardParameters > CustomReportWizardParameters_DetailView
• View > SolutionName.Module.BusinessObjects > MyReportData > MyReportData_DetailView

Start the Model Editor and adjust these Detail View layouts to customize the Report Wizard Parameters window. For detailed instructions, see the following topic: Detail View Layout Customization.

Specify Custom Column Values in Predefined Static Reports

The approach described above works for user-created reports generated with the Report Wizard and saved through the standard storage pipeline. Predefined static reports require additional handling because they are created and registered in code and do not use the same UI flow.

To specify a custom property for predefined reports (for example, the Category field), assign the value programmatically as follows:

1. Create a PredefinedReportDataContainer descendant with a property that holds a category name:

SolutionName.Module.PredefinedReportDataContainerEx.cs

# [SolutionName.Module.PredefinedReportDataContainerEx.cs](#tab/tabid-sc)
```csharp
using DevExpress.ExpressApp.ReportsV2;

namespace SolutionName.Module {
    public class PredefinedReportDataContainerEx : PredefinedReportDataContainer {
        public PredefinedReportDataContainerEx(Type reportType, string displayName, string categoryName) : base(reportType, displayName) {
            Category = categoryName;
        }
        public string Category { get; set; }
    }
}
```
***

2. Use this descendant to create a predefined report with a category name in the GetModuleUpdaters method:

   SolutionName.Module.Module.cs

   // ...
   public override IEnumerable<ModuleUpdater> GetModuleUpdaters(IObjectSpace objectSpace, Version versionFromDB) {
       ModuleUpdater updater = new DatabaseUpdate.Updater(objectSpace, versionFromDB);
       PredefinedReportsUpdater predefinedReportsUpdater = new PredefinedReportsUpdater(Application, objectSpace, versionFromDB);
       predefinedReportsUpdater.PredefinedReports.Add(new PredefinedReportDataContainerEx(typeof(PredefinedReport1), "Employee Information", "Predefined Report"));
       return new ModuleUpdater[] { updater, predefinedReportsUpdater };
   }
   // ...


3. Create a ReportStorageService descendant and override its CopyFrom method so that it copies a category name to a created MyReportDataV2:

   SolutionName.Module.CustomReportsStorage.cs

   using DevExpress.ExpressApp;
   using DevExpress.ExpressApp.DC;
   using DevExpress.ExpressApp.ReportsV2;
   using DevExpress.ExpressApp.ReportsV2.Services;
   using DevExpress.ExpressApp.Services.Security;
   using Microsoft.Extensions.Options;
   using SolutionName.Module.BusinessObjects;

   namespace SolutionName.Module {
       public class CustomReportsStorage : ReportStorageService {
           public CustomReportsStorage(ITypesInfo typesInfo, IServiceProvider serviceProvider, IObjectSpaceFactory objectSpaceFactory, IOptions<ReportOptions> options, IDataManipulationRight dataManipulationRight) : base(typesInfo, serviceProvider, objectSpaceFactory, options, dataManipulationRight) { }
           public override void CopyFrom(IReportDataV2 sourceReportData, IReportDataV2Writable targetReportData) {
               base.CopyFrom(sourceReportData, targetReportData);
               if (targetReportData is MyReportDataV2 customReportData) {
                   customReportData.Category = "User Report";
               }
           }

       }
   }


4. Register CustomReportsStorage in your XAF application. The required steps differ depending on the target platform:

   • In an XAF Blazor application, add a line that registers your service in the ConfigureServices method after the AddXaf method call.
   • In an XAF WinForms application, add a line that registers your service in the BuildApplication method after the WinApplication.CreateBuilder method call.
   • In a Web API application, add a line that registers your service in the ConfigureServices method after the AddXafWebApi method call.
   MySolution.Blazor.Server\Startup.cs

   using DevExpress.ExpressApp.ReportsV2;
   //...
       public class Startup {
           // ...
           public void ConfigureServices(IServiceCollection services) {
               services.AddXaf(Configuration, builder => {
                   //...
               });
               services.AddScoped<IReportStorage, CustomReportStorage>();
           }
           // ...
       }


   MySolution.Win\Startup.cs

   using DevExpress.ExpressApp.ReportsV2;
   //...
   public class ApplicationBuilder : IDesignTimeApplicationFactory {
       public static WinApplication BuildApplication(string connectionString) {
           var builder = WinApplication.CreateBuilder();
           builder.Services.AddScoped<IReportStorage, CustomReportStorage>();
           //...
       }
       // ...
   }


   MySolution.WebApi\Startup.cs

   using DevExpress.ExpressApp.ReportsV2;
   //...
   namespace MySolution.WebApi {
       public class Startup {
           // ...
           public void ConfigureServices(IServiceCollection services) {
               services.AddXafWebApi(builder => {
                   // ...
               }, Configuration);
               services.AddScoped<IReportStorage, CustomReportStorage>();
           }
           // ...
       }
   }
