Create and View Reports in an ASP.NET Core Blazor Application

  • 2 minutes to read

This topic describes how an end-user can create and view a report at runtime in an ASP.NET Core Blazor application.

Note

ASP.NET Core Blazor Report Designer supports only desktop browsers.

Copy a Predefined Report

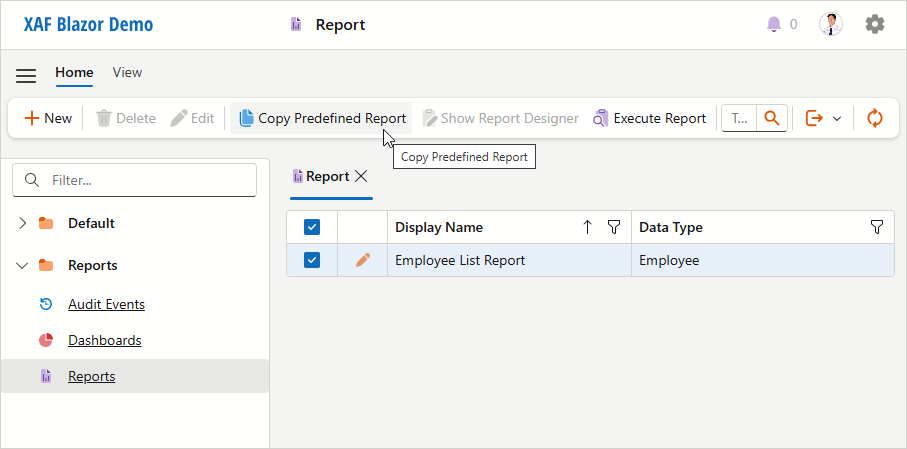

Copy a predefined report using the Copy Predefined Report button and then edit it.

ReportsV2_CopyPredefined_Blazor

Create a New Report from Scratch

Important

ASP.NET Core Blazor Report Designer limitations in XAF

The following functionality is not supported:

  • Create reports that use ViewDataSource (a new report uses CollectionDataSource);
  • Add a new data source and change the data type of the existing data source;
  • Adjust sorting and filtering.

To create a report at runtime, do the following.

  • Choose the Reports item in the Navigation.
  • Click New.

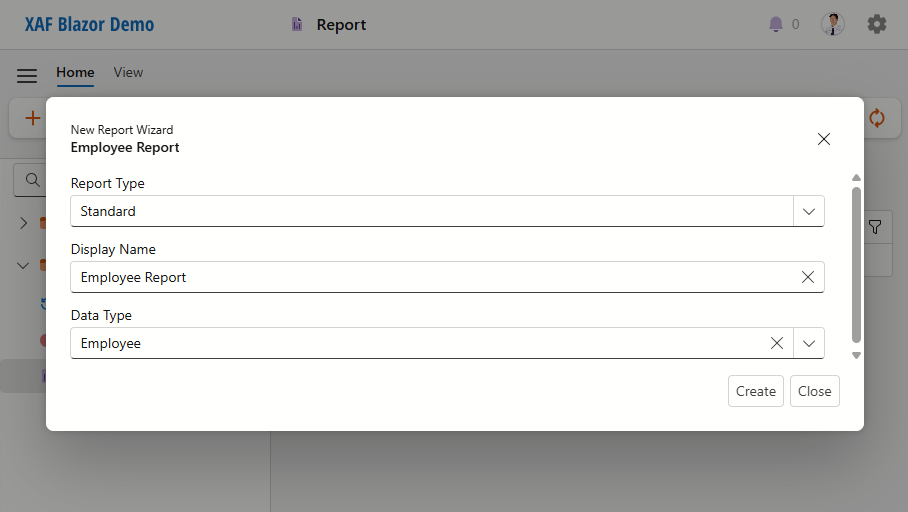

  • In the invoked Report Wizard dialog, specify the following and click Next.

    ReportsV2_Wizard_Blazor

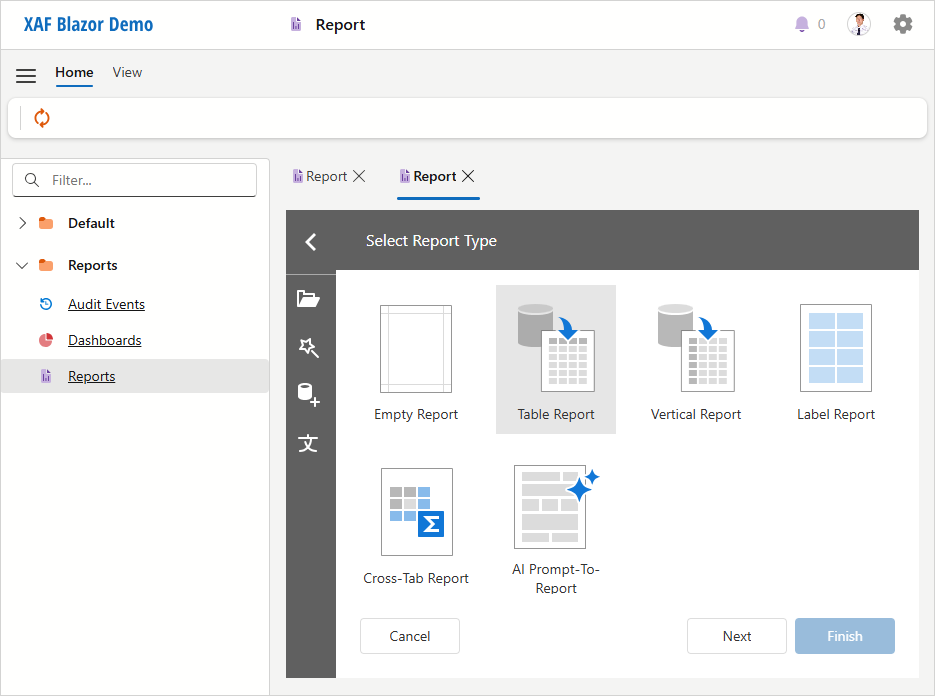

  • Choose the report type.

    ReportsV2_Wizard_Type_Blazor

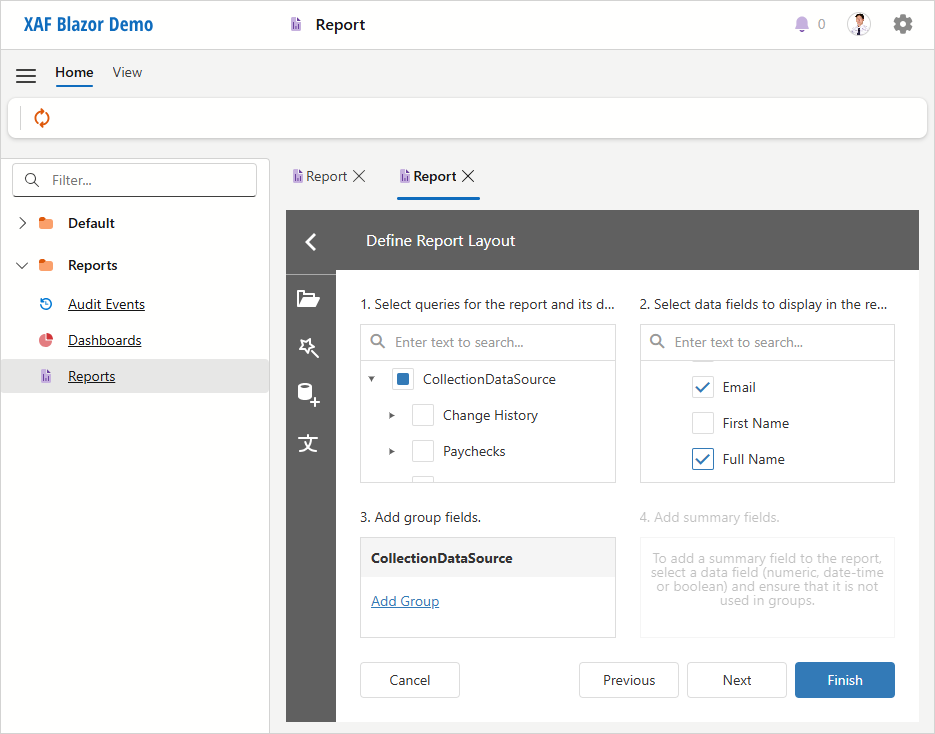

  • Follow the wizard’s prompts to select report columns, and specify other settings.

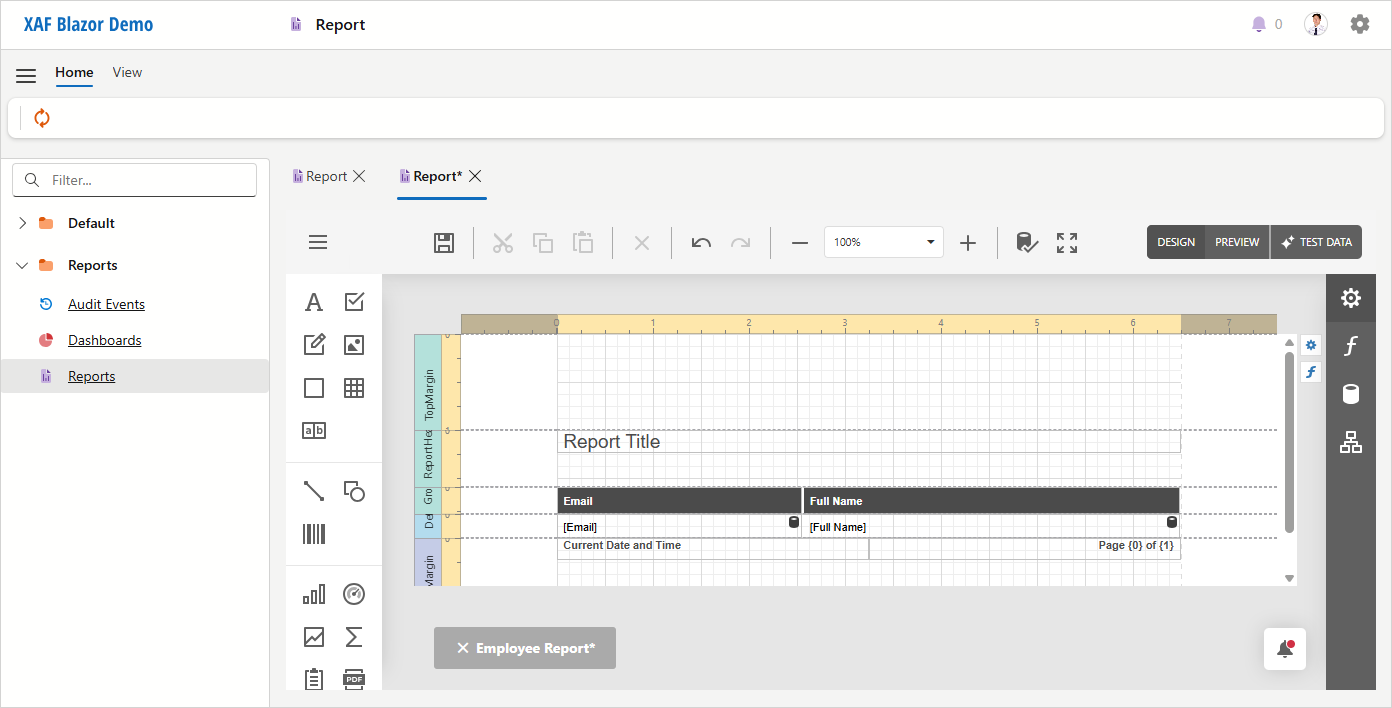

Finally, the new report will be opened in the Report Designer, which provides advanced report layout customization options.

ReportsV2_Designer_Blazor

You can see that the data source component has already been added. The data source’s ObjectTypeName property is set to the business object type specified in the first page of the Report Wizard.

When the VisibleInReports attribute is applied to a business class property, it specifies whether or not the target property is visible in the Report Designer field list. In the Report Designer, you can modify the existing fields layout and add more fields.

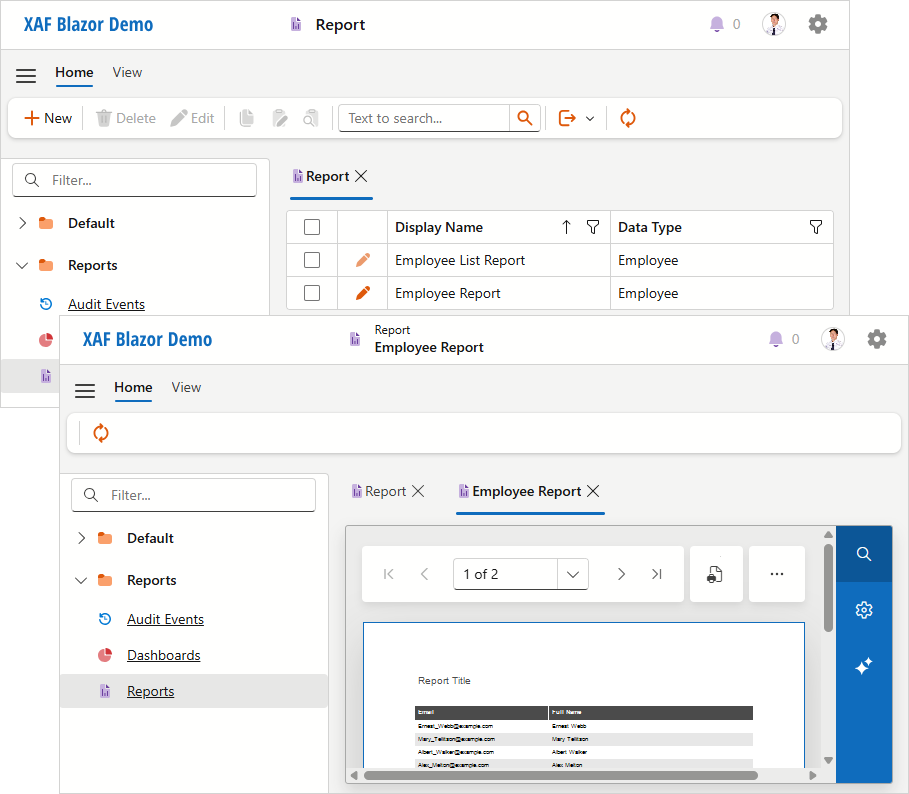

After a report is saved in the designer, it is added to the Reports List View. You can click a report to preview it.

ReportsV2_Preview_Blazor
