Distribute an Analysis with the Application

Aug 20, 2024
6 minutes to read

This topic describes how to distribute and update analyses with an application. For this purpose, an Analysis object will be created in code and the layout of its fields in the pivot grid will be saved to the database.

Note

You can find the code demonstrated here in the Main Demo installed with XAF. The MainDemo application is installed in %PUBLIC%\Documents\DevExpress Demos 23.1\Components\XAF\MainDemo.NET.EFCore by default.

Add the following references to the module project.

DevExpress.ExpressApp.PivotChart

DevExpress.PivotGrid.Core

To create an analysis for the DemoTask business object, open the DatabaseUpdate\Updater.cs (Updater.vb) file from the module project and create a new Analysis object as demonstrated below.

C#
VB.NET

public class Updater : ModuleUpdater {
    //...
    public override void UpdateDatabaseAfterUpdateSchema() {
        base.UpdateDatabaseAfterUpdateSchema();
        //...
        Analysis taskAnalysis1 = ObjectSpace.FirstOrDefault<Analysis>(analysis => analysis.Name == "Completed tasks");
        if (taskAnalysis1 == null) {
            taskAnalysis1 = ObjectSpace.CreateObject<Analysis>();
            taskAnalysis1.Name = "Completed tasks";
            taskAnalysis1.ObjectTypeName = typeof(DemoTask).FullName;
            taskAnalysis1.Criteria = "[Status] = ##Enum#DevExpress.Persistent.Base.General.TaskStatus,Completed#";
        }
    }
}

Public Class Updater
    Inherits ModuleUpdater
    '...
    Public Overrides Sub UpdateDatabaseAfterUpdateSchema()
        MyBase.UpdateDatabaseAfterUpdateSchema()
        '...
        Dim taskAnalysis1 As Analysis = ObjectSpace.FirstOrDefault(Function(analysis as Analysis) analysis.Name = "Completed tasks")
        If taskAnalysis1 Is Nothing Then
            taskAnalysis1 = ObjectSpace.CreateObject(Of Analysis)()
            taskAnalysis1.Name = "Completed tasks"
            taskAnalysis1.ObjectTypeName = GetType(DemoTask).FullName
            taskAnalysis1.Criteria = "[Status] = ##Enum#DevExpress.Persistent.Base.General.TaskStatus,Completed#"
        End If
    End Sub
End Class

Check that the analysis is created when running the application.

To save the configuration of the pivot grid fields for the created analysis in code, add the following code to the Updater.cs file inside the module project.

C#
VB.NET

using DevExpress.ExpressApp.PivotChart;
using DevExpress.Persistent.Base;
using DevExpress.Persistent.BaseImpl.EF;

namespace MySolution.Module.DatabaseUpdate {
    //...
    public abstract class TaskAnalysisLayoutUpdaterBase {
        protected IObjectSpace objectSpace;
        protected abstract IAnalysisControl CreateAnalysisControl();
        protected abstract IPivotGridSettingsStore CreatePivotGridSettingsStore(IAnalysisControl control);
        public TaskAnalysisLayoutUpdaterBase(IObjectSpace objectSpace) {
            this.objectSpace = objectSpace;
        }
        public void Update(Analysis analysis) {
            if (analysis != null && !PivotGridSettingsHelper.HasPivotGridSettings(analysis)) {
                IAnalysisControl control = CreateAnalysisControl();
                control.DataSource = new AnalysisDataSource(analysis, objectSpace.GetObjects(typeof(DemoTask)));
                control.Fields["Priority"].Area = DevExpress.XtraPivotGrid.PivotArea.ColumnArea;
                control.Fields["Subject"].Area = DevExpress.XtraPivotGrid.PivotArea.DataArea;
                control.Fields["AssignedTo.DisplayName"].Area = DevExpress.XtraPivotGrid.PivotArea.RowArea;
                PivotGridSettingsHelper.SavePivotGridSettings(CreatePivotGridSettingsStore(control), analysis);
            }
        }
    }
}

Imports DevExpress.ExpressApp.PivotChart
Imports DevExpress.Persistent.Base
Imports DevExpress.Persistent.BaseImpl.EF
'...
Public MustInherit Class TaskAnalysisLayoutUpdaterBase
    Protected objectSpace As IObjectSpace
    Protected MustOverride Function CreateAnalysisControl() As IAnalysisControl
    Protected MustOverride Function CreatePivotGridSettingsStore(ByVal control As IAnalysisControl) As IPivotGridSettingsStore
    Public Sub New(ByVal objectSpace As IObjectSpace)
        Me.objectSpace = objectSpace
    End Sub
    Public Sub Update(ByVal analysis As Analysis)
        If analysis IsNot Nothing AndAlso (Not PivotGridSettingsHelper.HasPivotGridSettings(analysis)) Then
            Dim control As IAnalysisControl = CreateAnalysisControl()
            control.DataSource = New AnalysisDataSource(analysis, objectSpace.GetObjects(GetType(DemoTask)))
            control.Fields("Priority").Area = DevExpress.XtraPivotGrid.PivotArea.ColumnArea
            control.Fields("Subject").Area = DevExpress.XtraPivotGrid.PivotArea.DataArea
            control.Fields("AssignedTo.DisplayName").Area = DevExpress.XtraPivotGrid.PivotArea.RowArea
            PivotGridSettingsHelper.SavePivotGridSettings(CreatePivotGridSettingsStore(control), analysis)
        End If
    End Sub
End Class

The CreateAnalysisControl and CreatePivotGridSettingsStore methods are abstract because platform-specific controls should be created within them. So, the TaskAnalysisLayoutUpdaterBase class should be inherited in the WinForms and ASP.NET Web Forms modules.

Implement a descendant of the TaskAnalysisLayoutUpdaterBase class in the WinForms application project and define the WinForms-specific Updater. Right-click the MySolution.Module.Win project and choose Add | New Folder. Set the new folder name to DatabaseUpdate. Right-click the DatabaseUpdate folder and choose Add | Class…. In the invoked Add New Item dialog, set the class name to “Updater” and click Add. Add the following code to the newly created Updater.cs (Updater.vb) file.

C#
VB.NET

using System;
using DevExpress.Data.Filtering;
using DevExpress.ExpressApp;
using DevExpress.ExpressApp.PivotChart;
using DevExpress.ExpressApp.PivotChart.Win;
using DevExpress.ExpressApp.Updating;
using DevExpress.Persistent.BaseImpl; //For XPO
using DevExpress.Persistent.BaseImpl.EF; //For EF

namespace MySolution.Module.Win.DatabaseUpdate {
    public class Updater : ModuleUpdater {
        public Updater(IObjectSpace objectSpace, Version currentDBVersion) :
            base(objectSpace, currentDBVersion) { }
        public override void UpdateDatabaseAfterUpdateSchema() {
            base.UpdateDatabaseAfterUpdateSchema();
            new TaskAnalysisLayoutUpdater(ObjectSpace).Update(ObjectSpace.FirstOrDefault<Analysis>(analysis => analysis.Name == "Completed tasks"));
            ObjectSpace.CommitChanges();
        }
    }
    public class TaskAnalysisLayoutUpdater :
            MySolution.Module.DatabaseUpdate.TaskAnalysisLayoutUpdaterBase {
        public TaskAnalysisLayoutUpdater(IObjectSpace objectSpace) : base(objectSpace) { }
        protected override IAnalysisControl CreateAnalysisControl() {
            return new AnalysisControlWin();
        }
        protected override DevExpress.Persistent.Base.IPivotGridSettingsStore
                                      CreatePivotGridSettingsStore(IAnalysisControl control) {
            return new PivotGridControlSettingsStore(((AnalysisControlWin)control).PivotGrid);
        }
    }
}

Imports System
Imports DevExpress.Data.Filtering
Imports DevExpress.ExpressApp
Imports DevExpress.ExpressApp.PivotChart
Imports DevExpress.ExpressApp.PivotChart.Win
Imports DevExpress.ExpressApp.Updating
Imports DevExpress.Persistent.BaseImpl 'For XPO
Imports DevExpress.Persistent.BaseImpl.EF 'For EF

Public Class Updater
    Inherits ModuleUpdater
    Public Sub New(ByVal objectSpace As IObjectSpace, ByVal currentDBVersion As Version)
        MyBase.New(objectSpace, currentDBVersion)
    End Sub
    Public Overrides Sub UpdateDatabaseAfterUpdateSchema()
        MyBase.UpdateDatabaseAfterUpdateSchema()
        CType(New TaskAnalysisLayoutUpdater(ObjectSpace), TaskAnalysisLayoutUpdater).Update(ObjectSpace.FirstOrDefault(Function(analysis as Analysis) analysis.Name = "Completed tasks"))
        ObjectSpace.CommitChanges()
    End Sub
End Class
Public Class TaskAnalysisLayoutUpdater
    Inherits TaskAnalysisLayoutUpdaterBase
    Public Sub New(ByVal objectSpace As IObjectSpace)
        MyBase.New(objectSpace)
    End Sub
    Protected Overrides Function CreateAnalysisControl() As IAnalysisControl
        Return New AnalysisControlWin()
    End Function
    Protected Overrides Function CreatePivotGridSettingsStore(ByVal control As IAnalysisControl) As DevExpress.Persistent.Base.IPivotGridSettingsStore
        Return New PivotGridControlSettingsStore((CType(control, AnalysisControlWin)).PivotGrid)
    End Function
End Class

Implement a descendant of the TaskAnalysisLayoutUpdaterBase class in the ASP.NET Web Forms module project and define the web-specific Updater. Right-click the MySolution.Module.Web project and select Add | New Folder. Set the new folder name to DatabaseUpdate. Right-click the DatabaseUpdate folder and choose Add | Class…. In the invoked Add New Item dialog, set the class name to “Updater” and click Add. Add the following code to the newly created Updater.cs (Updater.vb) file.

C#
VB.NET

using System;
using DevExpress.Data.Filtering;
using DevExpress.ExpressApp;
using DevExpress.ExpressApp.PivotChart;
using DevExpress.ExpressApp.PivotChart.Web;
using DevExpress.ExpressApp.Updating;
using DevExpress.Persistent.BaseImpl.EF;
using MySolution.Module.BusinessObjects;
using MySolution.Module.DatabaseUpdate;

namespace MySolution.Module.Web.DatabaseUpdate {
    public class Updater : ModuleUpdater {
        public Updater(IObjectSpace objectSpace, Version currentDBVersion) :
            base(objectSpace, currentDBVersion) { }
        public override void UpdateDatabaseAfterUpdateSchema() {
            base.UpdateDatabaseAfterUpdateSchema();
            new TaskAnalysisLayoutUpdater(ObjectSpace).Update(ObjectSpace.FirstOrDefault<Analysis>(analysis => analysis.Name == "Completed tasks"));
            ObjectSpace.CommitChanges();
        }
    }
    public class TaskAnalysisLayoutUpdater :
        MySolution.Module.DatabaseUpdate.TaskAnalysisLayoutUpdaterBase {
        public TaskAnalysisLayoutUpdater(IObjectSpace objectSpace) : base(objectSpace) { }
        protected override IAnalysisControl CreateAnalysisControl() {
            return new AnalysisControlWeb();
        }
        protected override DevExpress.Persistent.Base.IPivotGridSettingsStore
                CreatePivotGridSettingsStore(IAnalysisControl control) {
            return new ASPxPivotGridSettingsStore(((AnalysisControlWeb)control).PivotGrid);
        }
    }
}

Imports System
Imports DevExpress.Data.Filtering
Imports DevExpress.ExpressApp
Imports DevExpress.ExpressApp.PivotChart
Imports DevExpress.ExpressApp.PivotChart.Web
Imports DevExpress.ExpressApp.Updating
Imports DevExpress.Persistent.BaseImpl.EF

Public Class Updater
    Inherits ModuleUpdater
    Public Sub New(ByVal objectSpace As IObjectSpace, ByVal currentDBVersion As Version)
        MyBase.New(objectSpace, currentDBVersion)
    End Sub
    Public Overrides Sub UpdateDatabaseAfterUpdateSchema()
        MyBase.UpdateDatabaseAfterUpdateSchema()
        CType(New TaskAnalysisLayoutUpdater(ObjectSpace), TaskAnalysisLayoutUpdater) _
              .Update(ObjectSpace.FirstOrDefault(Function(analysis as Analysis) analysis.Name = "Completed tasks"))
        ObjectSpace.CommitChanges()
    End Sub
End Class
Public Class TaskAnalysisLayoutUpdater
    Inherits TaskAnalysisLayoutUpdaterBase
    Public Sub New(ByVal objectSpace As IObjectSpace)
        MyBase.New(objectSpace)
    End Sub
    Protected Overrides Function CreateAnalysisControl() As IAnalysisControl
        Return New AnalysisControlWeb()
    End Function
    Protected Overrides Function CreatePivotGridSettingsStore(ByVal control As IAnalysisControl) _
                                           As DevExpress.Persistent.Base.IPivotGridSettingsStore
        Return New ASPxPivotGridSettingsStore((CType(control, AnalysisControlWeb)).PivotGrid)
    End Function
End Class

When the application is loading, the specified pivot grid configuration for the “Completed tasks” analysis will be saved if the analysis is found in the database.

To register the created Updater classes, rewrite the GetModuleUpdaters method implementation in both the WinForms and ASP.NET Web Forms modules (WinModule.cs and WebModule.cs, or WinModule.vb and WebModule.vb) as follows.

C#
VB.NET

public override IEnumerable<ModuleUpdater> GetModuleUpdaters(
IObjectSpace objectSpace, Version versionFromDB) {
    ModuleUpdater updater = new DatabaseUpdate.Updater(objectSpace, versionFromDB);
    return new ModuleUpdater[] { updater };
}

Public Overrides Function GetModuleUpdaters(ByVal objectSpace As IObjectSpace, ByVal versionFromDB As Version) As IEnumerable(Of ModuleUpdater)
    Dim updater As ModuleUpdater = New Updater(objectSpace, versionFromDB)
    Return New ModuleUpdater() { updater }
End Function

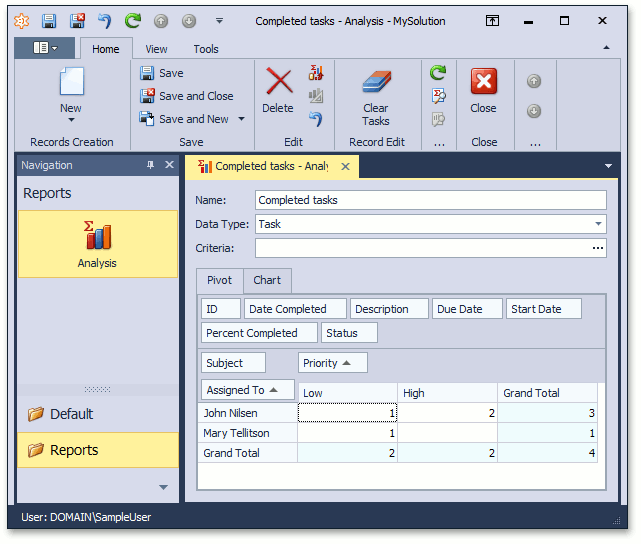

Now, if you run the WinForms or ASP.NET Web Forms application, invoke the automatically created “Completed tasks” analysis and click the Bind Analysis Data button (). You will see that the pivot grid fields are automatically configured.
