DevExpress Presentation API Library: Set Slide Background
- 4 minutes to read
DevExpress Presentation API supports various background types and fill patterns. You can apply a background style to an individual slide. You can also use a slide master or slide layout to apply a consistent style to all child slides.
Apply a Background from a Theme
A Theme is a predefined set of color schemes, fonts, and effects.
Assign a ThemedSlideBackground instance to the SlideBase.Background property to apply a fill from the slide master’s theme to a slide. ThemedSlideBackground contains the following options:
- ThemedSlideBackground.FillIndex
- Specifies the index of a fill to be applied to slides. Fill indexes can be in the following range: [1..999]. A valid presentation must contain at least three fill elements in the theme (for example, one SolidFill and two GradientFills.
- ThemedSlideBackground.Color
- Specifies the color used to fill the slide background.
The following code snippet applies the second fill from the theme set in the presentation file and specifies the fill color:
using DevExpress.Docs;
using DevExpress.Docs.Presentation;
slide.Background = new ThemedSlideBackground(2) { Color = new OfficeColor(Color.RoyalBlue) };
Refer to the following help topic for more information about themes: Customize Themes with the DevExpress Presentation API Library.
Configure Custom Background
Assign a CustomSlideBackground instance to the SlideBase.Background property to apply a custom background. CustomSlideBackground contains the following settings:
- CustomSlideBackground.Fill
- Specifies background fill type.
- CustomSlideBackground.ShadeToTitle
- Specifies whether to add shadow effects around the slide title.

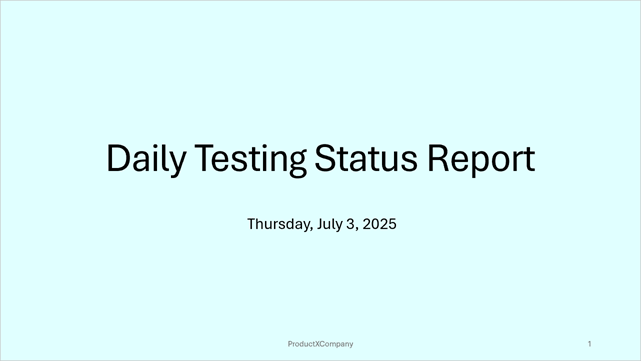

Apply a Solid Fill
Assign a SolidFill to the CustomSlideBackground.Fill property to fill a slide with a solid color. To set a fill color, specify the SolidFill.Color property or use the corresponding SolidFill constructor:
using DevExpress.Docs.Presentation;
using DevExpress.Drawing;
using System.Drawing;
Slide slide = new Slide(new SlideLayout(layoutType: SlideLayoutType.Blank, name: "slide"));
SolidFill fill = new SolidFill(Color.LightCyan);
slide.Background = new CustomSlideBackground(fill);
Apply a Gradient Fill
Assign a GradientFill to the CustomSlideBackground.Fill property to fill a slide with a color gradient. Use the following properties to configure gradient settings:
- GradientFill.GradientStops
- Provides access to gradient stops.
- GradientFill.GradientType
- Specifies the type of the gradient. Available options include
Circular,Linear,Rectangular,Shape. - GradientFill.Angle
- Specifies the gradient rotation angle.
- GradientFill.FillRect
- Specifies the gradient fill direction.
- GradientFill.TileRect
- Specifies the rectangular region to which a gradient is applied.
- GradientFill.FlipType
- Specifies how the image is flipped.
- GradientFill.Scaled
- Specifies whether a gradient is scaled.
using DevExpress.Docs.Presentation;
using DevExpress.Drawing;
using System.Drawing;
Slide slide = new Slide(new SlideLayout(layoutType: SlideLayoutType.Blank, name: "slide"));
GradientFill fill = new GradientFill(gradientType: GradientType.Linear);
fill.GradientStops.Add(new GradientStop(Color.Cornsilk, 10));
fill.GradientStops.Add(new GradientStop (Color.AliceBlue, 30));
fill.GradientStops.Add(new GradientStop (Color.RoyalBlue, 90));
slide.Background = new CustomSlideBackground(fill);

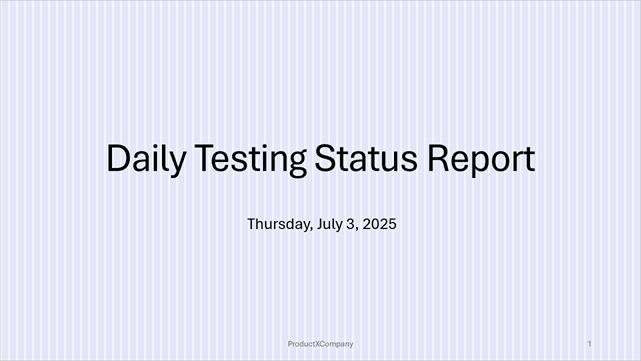

Apply a Pattern Fill
Assign a PatternFill to the CustomSlideBackground.Fill property to fill a slide with a pattern. Use the following properties to configure pattern fill settings:
- PatternFill.PatternType
- Specifies a pattern.
- PatternFill.BackgroundColor
- Specifies pattern background color.
- PatternFill.ForegroundColor
- Specifies pattern foreground color.
As an alternative to standalone properties, you can use a PatternFill constructor to set pattern fill settings in parameters:
using DevExpress.Docs.Presentation;
using DevExpress.Drawing;
using System.Drawing;
Slide slide = new Slide(new SlideLayout(layoutType: SlideLayoutType.Blank, name: "slide"));
PatternFill fill = new PatternFill(patternType: FillPatternType.Vertical, Color.White, Color.Lavender);
slide.Background = new CustomSlideBackground(fill);

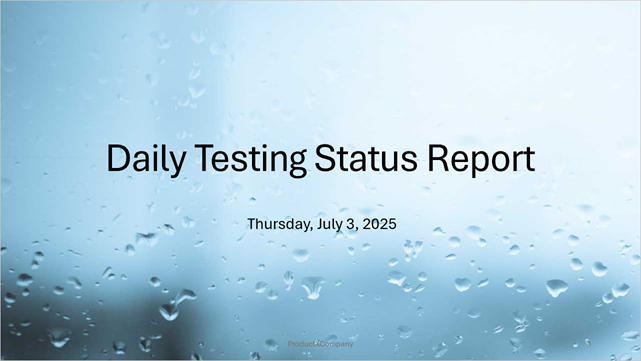

Apply a Picture Fill
Assign a PictureFill to the CustomSlideBackground.Fill property to fill a slide with a picture. Use the following properties to configure picture fill settings:
- PictureFill.Image
- Specifies the image used to fill the background.
- PictureFill.AlignType
- Specifies image alignment.
- PictureFill.FillRect
- Specifies the portion of the slide to fill with the image.
- PictureFill.SourceRect
- Specifies the portion of the source image to fill the slide.
- PictureFill.FlipType
- Specifies image flipping mode.
- PictureFill.OffsetX / PictureFill.OffsetY
- Specify the horizontal and vertical offsets of the image relative to its original position.
- PictureFill.ScaleX / PictureFill.ScaleY
- Specify the horizontal and vertical scale factors for the image used to tile the background.
- PictureFill.Stretch
- Specifies whether to stretch the source image.
using DevExpress.Docs.Presentation;
using DevExpress.Drawing;
using System.Drawing;
Slide slide = new Slide(new SlideLayout(layoutType: SlideLayoutType.Blank, name: "slide"));
string imagePath = "D:\\image.png";
Stream stream = new FileStream(imagePath, FileMode.Open, FileAccess.Read);
PictureFill fill = new PictureFill(DXImage.FromStream(stream));
fill.Stretch = true;
slide.Background = new CustomSlideBackground(fill);
