GaugeBase.GetSvgMarkupAsync() Method

Gets the component’s SVG markup.

Namespace: DevExpress.Blazor.Base

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public ValueTask<string> GetSvgMarkupAsync()

#Returns

Type Description
ValueTask<String>

A structure that stores an awaitable result of an asynchronous operation. The awaitable result is an SVG markup string.

#Remarks

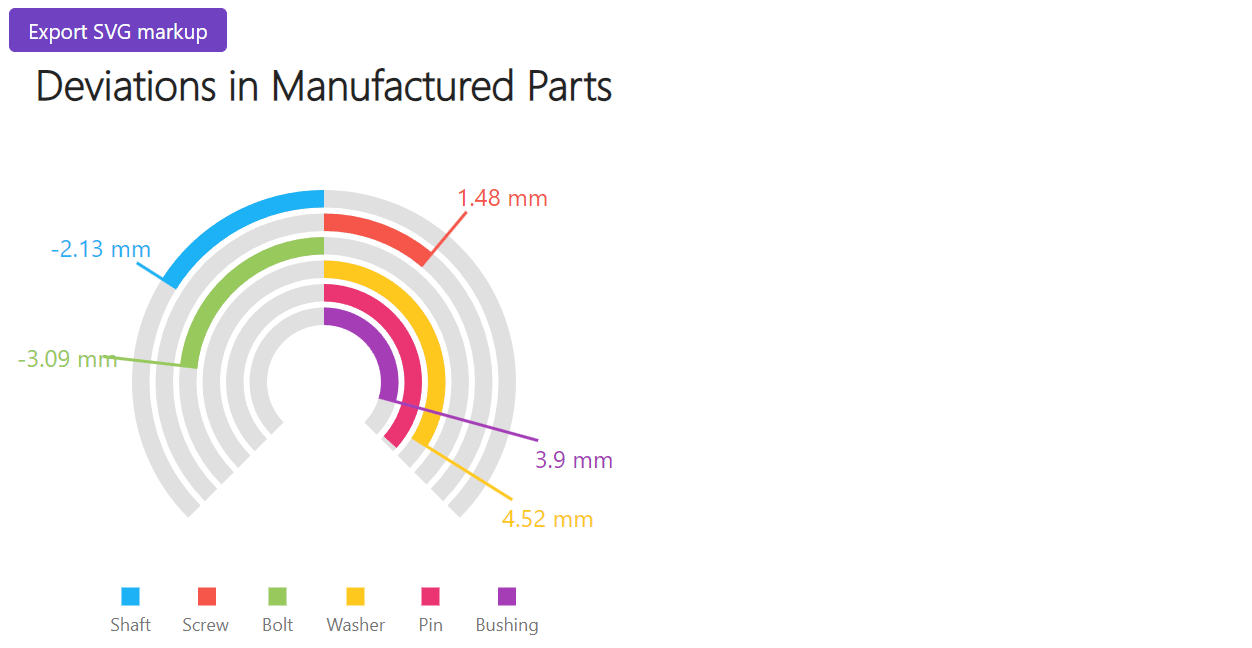

The following code snippet gets the bar gauge’s SVG markup and passes it as a parameter to a custom CreateSvgMarkup function. This function creates a new SVG document that contains the bar gauge markup.

Razor
@if (IsNewSvgGenerated) {
    @((MarkupString)NewSvgMarkup)
} else {
    <DxButton Click=@Svg Text="Export SVG markup" />

<DxBarGauge Width="420px"
            Height="400px"
            @ref="@BarGauge"
            StartValue="-5"
            EndValue="5"
            BaseValue="0"
            Values="@Values">
    <DxBarGaugeLabelSettings>
        <DxTextFormatSettings LdmlString="@LabelFormat" />
    </DxBarGaugeLabelSettings>
    <DxBarGaugeLegendSettings Visible="true"
                              ItemCaptions="@LegendItemCaptions"
                              VerticalAlignment="VerticalEdge.Bottom"
                              HorizontalAlignment="HorizontalAlignment.Center" />
    <DxTitleSettings Text="Deviations in Manufactured Parts">
        <DxFontSettings Size="28" Weight="600" />
    </DxTitleSettings>
</DxBarGauge>
}

@code {
    string NewSvgMarkup { get; set; }
    bool IsNewSvgGenerated { get; set; }

    DxBarGauge BarGauge;

    public async Task Svg () {
        var gaugeMarkup = await BarGauge.GetSvgMarkupAsync();
        NewSvgMarkup = CreateSvgMarkup(gaugeMarkup);
        IsNewSvgGenerated = true;
    }
    string CreateSvgMarkup (string gaugeMarkup) {
        var templateSvg =
            "<svg width=\"820px\" height=\"420px\">" +
                "<path d=\"M 13 407 L 128 407 L 232 39 L 13 39\" fill=\"#6D39C3\"></path>" +
                "<path d=\"M 46 381 L 161 381 L 265 13 L 46 13\" opacity=\"0.5\" fill=\"#6D39C3\"></path>" +
                "<text transform=\"translate(30,89)\" style=\"fill: rgb(255, 255, 255);font-family: &quot;Segoe UI&quot;, &quot;Helvetica Neue&quot;, &quot;Trebuchet MS&quot;, Verdana, sans-serif;font-size: 36px;font-weight: bold;\">" +
                    "<tspan x=\"0\" y=\"0\">Export </tspan>" +
                    "<tspan x=\"0\" y=\"38\">SVG</tspan>" +
                    "<tspan x=\"0\" y=\"76\">Content</tspan>" +
                "</text>" +

                "<path opacity=\"0.8\" d=\"M 0 0 L 820 0 L 820 420 L 0 420 L 0 0\" stroke=\"#999999\" stroke-width=\"1\" stroke-linecap=\"butt\" fill=\"none\" stroke-linejoin=\"miter\"></path>" +
            "</svg>";

        return "<svg xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" version=\"1.1\" width=\"820px\" height=\"420px\">" +
            templateSvg +
            "<g transform=\"translate(305,12)\">" + gaugeMarkup + "</g>" +
        "</svg>";
    }

    string LabelFormat = "##.## mm;-##.## mm";
    double[] Values = new double[] { -2.13, 1.48, -3.09, 4.52, 4.9, 3.9 };
    string[] LegendItemCaptions = new string[] { "Shaft", "Screw", "Bolt", "Washer", "Pin", "Bushing" };
}
