OuterShadowEffect Class

Contains properties to configure an outer shadow effect.

Declaration

public class OuterShadowEffect extends OfficeObject

Remarks

Use the following methods to configure the outer shadow effect:

Method	Description	Image
setColor(OfficeColor value)	Specifies the outer shadow color.
setHorizontalScale(float value)	Specifies the horizontal scale factor of the shadow.
setVerticalScale(float value)	Specifies the vertical scale factor of the shadow.

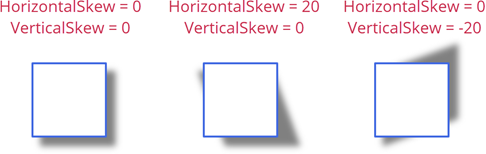

setHorizontalSkew(float value)	Specifies the horizontal skew angle of the shadow.
setRotateWithShape(boolean value)	Specifies whether the shadow rotates with the shape.
setBlurRadius(float value)	Specifies the outer shadow’s blur radius.
setAngle(float value)	Specifies the angle to offset the shadow.
setDistance(float value)	Specifies how far to offset the shadow.
setVerticalSkew(float value)	Specifies the vertical skew angle of the shadow.

The following code snippet applies an outer shadow effect to a shape:

Java

import com.devexpress.docs.*;
import com.devexpress.docs.office.*;
import com.devexpress.system.drawing.*;
import com.devexpress.docs.presentation.*;

// Create a presentation.
try(Presentation presentation = new Presentation()) {

    ShapeEffectProperties effectProperties = new ShapeEffectProperties();
    effectProperties.setOuterShadow(new OuterShadowEffect() {{
        setAngle(135);
        setBlurRadius(50);
        setColor(new OfficeColor(Color.getGray()));
        setDistance(50);
        setHorizontalScale(100);
        setVerticalScale(100);
        setHorizontalSkew(0);
        setVerticalSkew(0);
        setRotateWithShape(true);
    }});

    Shape shape = new Shape(ShapeType.getRectangle(), 10, 10, 300, 300) {{
        setOutline(new LineStyle());
        getOutline().setFill(new SolidFill(Color.getRoyalBlue()));
        getOutline().setWidth(8);
        setFill(new SolidFill(Color.getWhite()));
        setEffects(effectProperties);
    }};

    // Access the first slide in the presentation.
    Slide slide = presentation.getSlides().getFirst();
    slide.getShapes().add(shape);

    // Perform additional presentation processing logic.
}

Inherited Members

deepClone()

notifyChange(Object sender, String propertyName)

com.devexpress.system.JavaObject.clone()

com.devexpress.system.JavaObject.equals(java.lang.Object)

com.devexpress.system.JavaObject.hashCode()

com.devexpress.system.JavaObject.initFields()

com.devexpress.system.JavaObject.memberwiseClone()

com.devexpress.system.JavaObject.toString()

java.lang.Object.finalize()

java.lang.Object.getClass()

java.lang.Object.notify()

java.lang.Object.notifyAll()

java.lang.Object.wait()

java.lang.Object.wait(long)

java.lang.Object.wait(long,int)

Inheritance

Object

JavaObject

OfficeObject

OuterShadowEffect

OuterShadowEffect()

Initializes a new instance of the OuterShadowEffect class.

Declaration

public OuterShadowEffect()

Methods

deepClone() Method

Returns a deep copy of this OuterShadowEffect instance.

Declaration

public OuterShadowEffect deepClone()

Returns

Type	Description
OuterShadowEffect	A deep copy of this OuterShadowEffect.

getAngle() Method

Returns the angle to offset the shadow.

Declaration

public float getAngle()

Returns

Type	Description
float	The angle in degrees.

getBlurRadius() Method

Returns the outer shadow’s blur radius.

Declaration

public float getBlurRadius()

Returns

Type	Description
float	The outer shadow’s blur radius in Document units (1/300 of an inch).

getColor() Method

Returns the shadow color.

Declaration

public OfficeColor getColor()

Returns

Type	Description
OfficeColor	The shadow color.

getDistance() Method

Returns how far to offset the shadow.

Declaration

public float getDistance()

Returns

Type	Description
float	The distance to offset the shadow in Document units (1/300 of an inch).

getHorizontalScale() Method

Returns the horizontal scale of the shadow.

Declaration

public float getHorizontalScale()

Returns

Type	Description
float	The scale factor that is expressed as a percentage in the range of 0 to 200.

getHorizontalSkew() Method

Returns the horizontal skew angle of the shadow.

Declaration

public float getHorizontalSkew()

Returns

Type	Description
float	The horizontal skew angle of the shadow in degrees. This method can have values in the (-90, 90) range.

getRotateWithShape() Method

Returns whether the shadow rotates with the shape.

Declaration

public boolean getRotateWithShape()

Returns

Type	Description
boolean	true if the shadow rotates with the shape; otherwise, false.

getShadowAlignment() Method

Returns the shadow alignment relative to the shape.

Declaration

public RectangleAlignType getShadowAlignment()

Returns

Type	Description
RectangleAlignType	The shadow alignment relative to the shape.

Remarks

The setAngle method has a higher priority than the setShadowAlignment method.

getVerticalScale() Method

Returns the vertical scale of the shadow.

Declaration

public float getVerticalScale()

Returns

Type	Description
float	The scale factor that is expressed as a percentage in the range of 0 to 200.

getVerticalSkew() Method

Returns the vertical skew angle of the shadow.

Declaration

public float getVerticalSkew()

Returns

Type	Description
float	The vertical skew angle of the shadow in degrees. This method can have values in the (-90, 90) range.

setAngle(float value) Method

Sets the angle to offset the shadow.

Declaration

public void setAngle(float value)

Parameters

Name	Type	Description
value	float	The angle in degrees.

setBlurRadius(float value) Method

Sets the outer shadow’s blur radius.

Declaration

public void setBlurRadius(float value)

Parameters

Name	Type	Description
value	float	The outer shadow’s blur radius in Document units (1/300 of an inch).

setColor(OfficeColor value) Method

Sets the shadow color.

Declaration

public void setColor(OfficeColor value)

Parameters

Name	Type	Description
value	OfficeColor	The shadow color.

setDistance(float value) Method

Sets how far to offset the shadow.

Declaration

public void setDistance(float value)

Parameters

Name	Type	Description
value	float	The distance to offset the shadow in Document units (1/300 of an inch).

setHorizontalScale(float value) Method

Sets the horizontal scale of the shadow.

Declaration

public void setHorizontalScale(float value)

Parameters

Name	Type	Description
value	float	The scale factor that is expressed as a percentage in the range of 0 to 200.

setHorizontalSkew(float value) Method

Sets the horizontal skew angle of the shadow.

Declaration

public void setHorizontalSkew(float value)

Parameters

Name	Type	Description
value	float	The horizontal skew angle of the shadow in degrees. This method can have values in the (-90, 90) range.

setRotateWithShape(boolean value) Method

Sets whether the shadow rotates with the shape.

Declaration

public void setRotateWithShape(boolean value)

Parameters

Name	Type	Description
value	boolean	true if the shadow rotates with the shape; otherwise, false.

setShadowAlignment(RectangleAlignType value) Method

Sets the shadow alignment relative to the shape.

Declaration

public void setShadowAlignment(RectangleAlignType value)

Parameters

Name	Type	Description
value	RectangleAlignType	The shadow alignment relative to the shape.

Remarks

The setAngle method has a higher priority than the setShadowAlignment method.

setVerticalScale(float value) Method

Sets the vertical scale of the shadow.

Declaration

public void setVerticalScale(float value)

Parameters

Name	Type	Description
value	float	The scale factor that is expressed as a percentage in the range of 0 to 200.

setVerticalSkew(float value) Method

Sets the vertical skew angle of the shadow.

Declaration

public void setVerticalSkew(float value)

Parameters

Name	Type	Description
value	float	The vertical skew angle of the shadow in degrees.
