Properties Panel
- 3 minutes to read

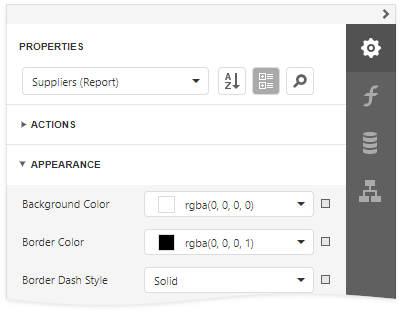

This document describes how to use the Properties panel to access and customize the report and report element properties.
Select a Report Element
Do one of the following to access an element’s properties:

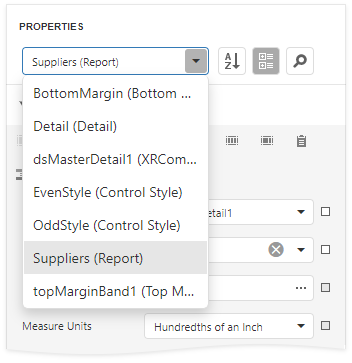

Select an element from the drop-down list at the top of the Properties panel.
Click an element on the Design Surface and click the
button to invoke the Properties panel.- Select an element in Report Explorer and click the
button.

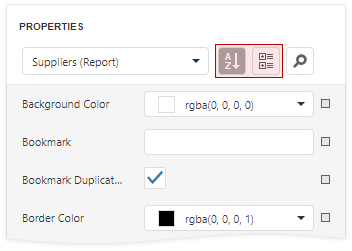

Switch Between Display Modes
Element settings can appear in alphabetical order or in categories based on their purpose. Use the buttons next to the selected element to switch between these display modes.
Change Property Values

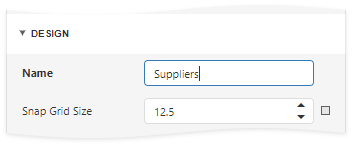

Each record consists of a property’s caption, a value editor, and an optional property marker. To change a property’s value, select the property and specify its value in the editor.

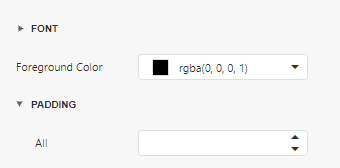

Certain properties contain nested properties which can be accessed when you click the header.
The property marker indicates if the property’s value was changed:
If a property stores a default value, its property marker is gray.
If a property’s value was changed, the property marker becomes white.
If a report style supersedes a property’s value, the marker is light blue. This applies to appearance properties (for instance, an element’s BackColor, Font, Borders).
Reset Property Values

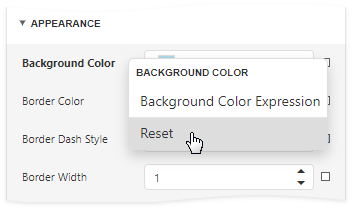

Click the property marker to the right of the editor. Select Reset in the invoked popup menu to restore the default property values.
Note
The Reset command resets the expression and the value you specified in the property’s editor.
Specify Expressions

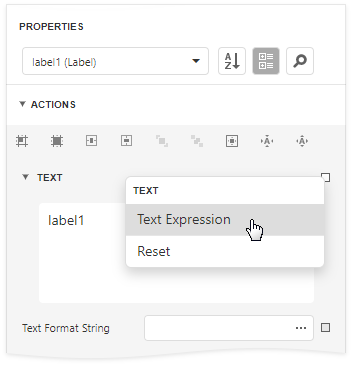

The Properties panel allows you to specify expressions that can include two or more data fields and various functions. Click a property marker to see whether the invoked context menu has the PropertyName Expression item.

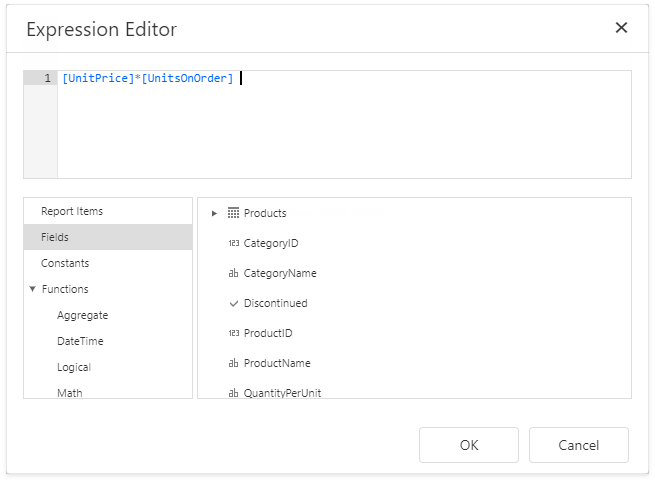

Click this item to specify an expression in the invoked Expression Editor.

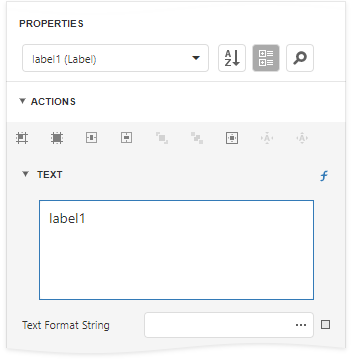

The Properties panel highlights properties that have an assigned expression.
Search Properties

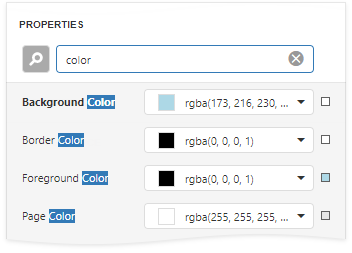

Click the
button to show the search box. When you type in the search box, the Properties panel filters the list of available properties and highlights the search string in the records.
Use Actions

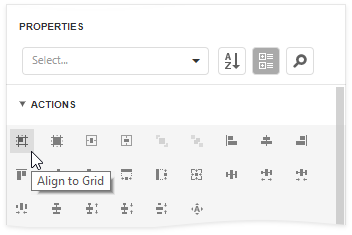

In the categorized mode, the Properties panel contains the context-sensitive Actions group that provides the most commonly used actions for the selected report element:

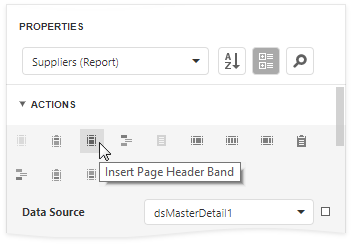

Add new bands, if you selected a report.

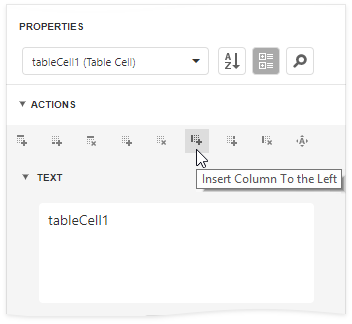

Manage a table element’s cells, rows, and columns.
Align and position report elements (for instance, align and resize elements to the snap grid, specify horizontal and vertical alignments) for individual and multiple selected report elements.
