    Overview

    XAF can run functional tests for Blazor UI applications based on the Selenium driver to interact with browser.

    EasyTest for Blazor supports the following browsers:

    • Google Chrome
    • Microsoft Edge

    This topic describes how to integrate EasyTest functional testing to your XAF Blazor application.

    Prerequisites

    Configure your working machine as described below:

    1. Install browser drivers.

      Selenium requires a path to the downloaded driver. You can specify a path to the driver in any of the following ways:

      • Add a folder with the driver to the system’s PATH variable.
      • Specify a path to the driver in EasyTest’s configuration file.

        <Application ... WebDriverPath="C:\WebDriverPath" />

    2. Install the DevExpress.ExpressApp.EasyTest.BlazorAdapter package to your YourApplicationName.Blazor.Server project.

    Tip

    The Solution Wizard creates new applications that already have integrated EasyTest components. The wizard does the following:

    • Adds the EasyTest solution configuration.

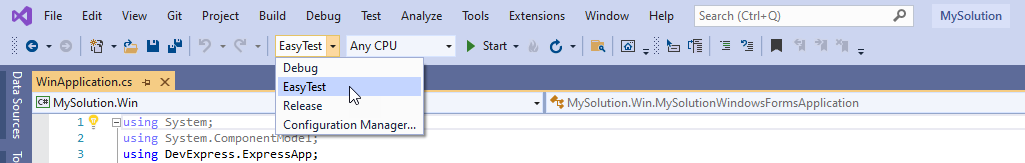

      EasyTest solution configuration

    • Adds all the necessary code to allow you run tests in the EasyTest solution configuration.
    • Adds the FunctionalTests folder with a configuration file (config.xml) and a sample test (sample.ets) into the platform-independent YourApplicationName.Module module. Installs the DevExpress.ExpressApp.EasyTest.BlazorAdapter package to your YourApplicationName.Blazor.Server project (only for the EasyTest solution configuration).

    Configuration

    The code below demonstrates a sample configuration file. You can edit it according to your project environment.

    <?xml version="1.0" encoding="utf-8" ?>
    <Options xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
        <Applications>
            <!-- Blazor -->
            <Application
                Name="DXApplication1Blazor"
                Url="http://localhost:4030"
                PhysicalPath="[BlazorAppPath]"
                AdapterFileName="[BlazorAdapterAssemblyPath]"
                Configuration="EasyTest"
                IgnoreCase="true"/>
        </Applications>

        <TestDatabases>
                <Database xsi:type="TestMSSQLDatabase" Server="(localdb)\mssqllocaldb" DBName="DXApplication1EasyTest"/>
        </TestDatabases>

        <Aliases>
            <Alias Name="BlazorAppPath" Value="[ConfigPath]\..\..\DXApplication1.Blazor.Server" />
            <Alias Name="BlazorAdapterAssemblyPath" Value="[BlazorAppPath]\bin\EasyTest\net5.0\DevExpress.ExpressApp.EasyTest.BlazorAdapter.v21.2.dll" />
        </Aliases>
    </Options>


    Configuration Options

    Attribute Description
    Name Specifies the name of the Application element. This name is used to differentiate between different applications. The Application command takes this name as the parameter.
    Url The application’s web address.
    PhysicalPath A path to the folder that contains the application. You can use the built-in [ConfigPath] alias to specify a path to the Config.xml file.
    AdapterFileName Specifies a path to the Blazor EasyTest adapter. This is an EasyTest assembly that contains platform-specific functionality. The attribute contains the adapter’s assembly filename, assembly version, culture, and public key.
    IgnoreCase Specifies whether the test ignores a letter case when referring to UI element names, captions, or tags.
    Configuration Specifies the configuration to use when running tests.
    WebDriverPath Specifies a path to a web driver.
    Browser Specifies a web browser to use for running tests. Available values: Chrome, Edge (the default value).

    Aliases

    Alias Description
    BlazorAppPath A path to a Blazor application.
    BlazorAdapterAssemblyPath A path to the Blazor EasyTest adapter. This path is typically points to a project’s build results. Reference the DevExpress.ExpressApp.EasyTest.BlazorAdapter adapter and it becomes available in the project’s build results. When you create a new application, the adapter is already referenced in the project and this option is set to a folder with the build results.

    Run EasyTest in the Debug Configuration

    The following steps describe the modifications required to support EasyTest in the Debug solution configuration.

    Note that after updating the solution in this way, EasyTest will use database connection strings specified in the application projects’ configuration files. So you may want to backup the databases used by the applications before running any actual tests.

    In a Blazor application project, update the DatabaseVersionMismatch method in BlazorApplication.cs:

    private void MyBlazorApplication_DatabaseVersionMismatch(object sender, DevExpress.ExpressApp.DatabaseVersionMismatchEventArgs e) {
    #if DEBUG
        e.Updater.Update();
        e.Handled = true;
    #else
        if (System.Diagnostics.Debugger.IsAttached) {
            //...
        }
        else {
            //...
        }
    #endif
    }


    Run Tests

    Use the TestExecutor Utility to run tests for .NET 5+ projects.

    cd %ProgramFiles(x86)%\DevExpress 21.2\Components\Tools\eXpressAppFrameworkNetCore\EasyTest

    TestExecutor.v21.2.exe C:\PathToTest\sample.ets


    Note

    EasyTest commands (Run, Run Next Step, and so on) integrated into Visual Studio do not work for .NET 5+ projects.

    Remove EasyTest

    You can remove all EasyTest components from your application. In this case, delete the following:

    • The FunctionalTests folder.
    • The DevExpress.ExpressApp.EasyTest.BlazorAdapter package from Blazor applications.
    • The EASYTEST conditions from the Blazor application project’s BlazorApplication.cs file.
