TimePicker Class

Represents a TimePicker control.

Namespace: DevExpress.Xpf.Editors

Assembly: DevExpress.Xpf.Core.v19.2.dll

NuGet Packages: DevExpress.WindowsDesktop.Wpf.Core, DevExpress.Wpf.Core

Declaration

C#

public class TimePicker :
    Control

VB.NET

Public Class TimePicker
    Inherits Control

Remarks

The TimePicker editor consists of a clock face and a time edit box.

Use the DateTime property to get or set a TimePicker value.

When the DateTime property value is changed, the DateTimeChanged event occurs.

You can use the MinValue and MaxValue properties to set a range of allowed values that end users can select.

Integrate to DateEdit

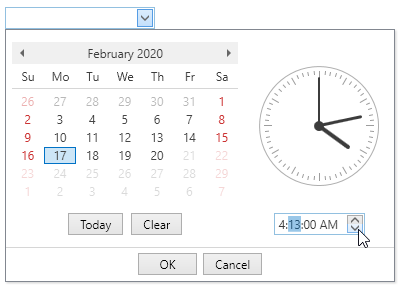

You can integrate the TimePicker editor in the DateEdit‘s popup: pass the DateEditNavigatorWithTimePickerStyleSettings object to the DateEdit‘s StyleSettings property.

Inheritance

Object

DispatcherObject

DependencyObject

Visual

UIElement

FrameworkElement

Control

TimePicker
