SnapChart.SeriesSorting Property

Gets or sets a value that specifies how series are sorted in the chart based upon the series names.

Namespace: DevExpress.Snap.Core.API

Assembly: DevExpress.Snap.v21.2.Core.dll

NuGet Package: DevExpress.Snap.Core

Declaration

C#

SortingMode SeriesSorting { get; set; }

VB.NET

Property SeriesSorting As SortingMode

Property Value

Type	Description
SortingMode	A SortingMode enumeration value.

Available values:

Name	Description
None	The values are not sorted.
Ascending	The values are sorted in ascending order.
Descending	The values are sorted in descending order.

Remarks

Use the SeriesSorting property to specify the order in which automatically generated series are sorted within the chart based upon the series names. Note that the names of the dynamically created series are taken from the data field specified by the SnapChart.SeriesDataMember property.

The sort order applied to the chart series can be visually identified within the chart’s legend. In some series views (e.g., bar series) the applied sort order affects the order in which the chart elements (in particular, bars) representing data points with an identical argument are displayed within the diagram.

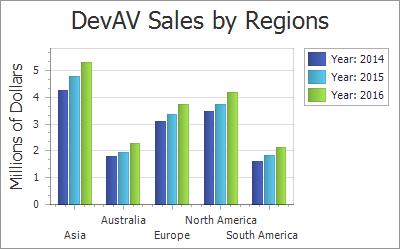

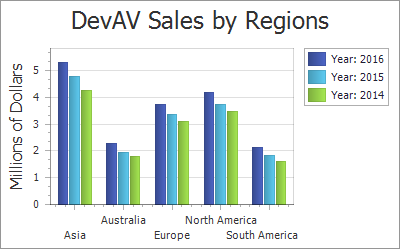

SeriesSorting = Ascending	SeriesSorting = Descending
