DXStepLineSeries Class

A series that displays data as a collection of points connected by a line, in such way that series points are connected using only horizontal and vertical lines.

Declaration

@interface DXStepLineSeries: DXLineSeries

Remarks

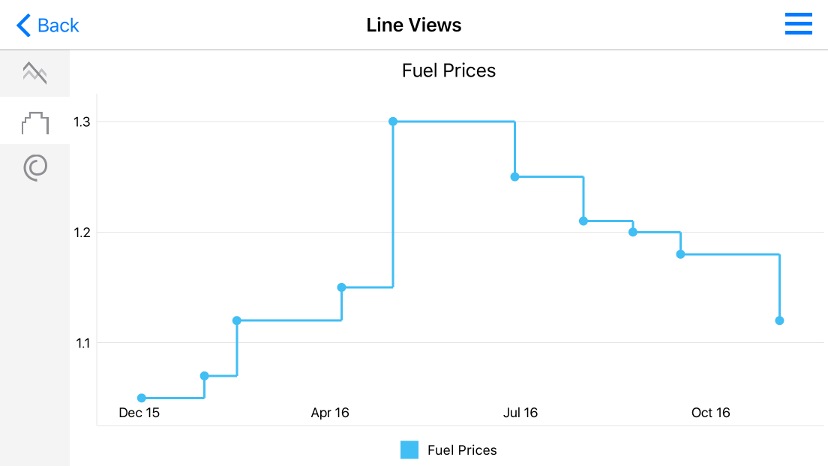

The following image represents the Step Line series:

A Step line series example

Inheritance

Properties

invertedStep Property

Gets or sets a value specifying which line (horizontal or vertical) should be drawn first.

Declaration

@property (readwrite) BOOL invertedStep

Property Value

Type Description
BOOL

YES if vertical line should be drawn first; NO if horizontal line should be drawn first.
