DXNumericAxisY Class

The numeric values axis.

Declaration

@interface DXNumericAxisY: DXAxisBase

Remarks

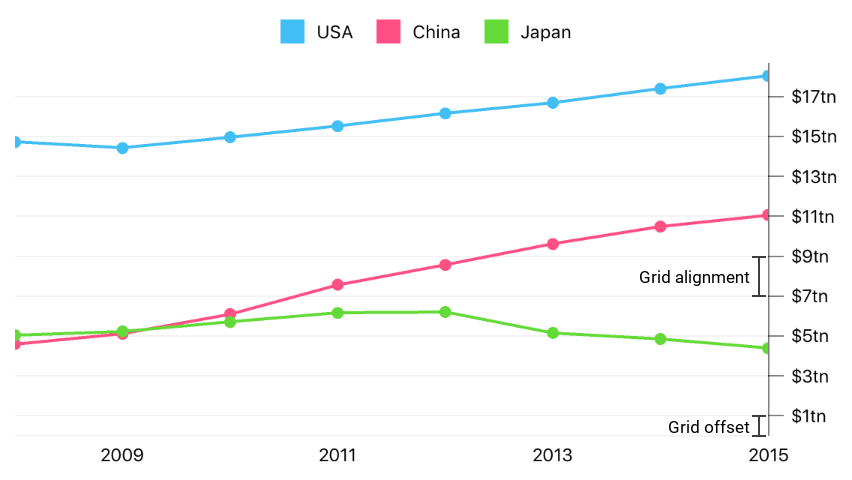

The following image demonstrates parameters specific to this axis:

Refer to the Axes guide for more information about axes.

Inherited Members

constantLines

hidden

hintOptions

label

layout

position

strips

style

synchronizer

title

Inheritance

NSObject

DXChartElement

DXAxisBase

DXNumericAxisY

Properties

alwaysShowZeroLevel Property

Gets or sets the value indicating whether the range should always include a zero value.

Declaration

@property (readwrite) BOOL alwaysShowZeroLevel

Property Value

Type	Description
BOOL	YES if the range should include a zero value; otherwise NO.

autoRangeMode Property

Gets or sets the range automatically calculation mode.

Declaration

@property (readwrite) DXAutoRangeMode autoRangeMode

Property Value

Type	Description
DXAutoRangeMode	The DXAutoRangeMode enumeration value that specifies how to automatically calculate axis’ range.

gridAlignment Property

Gets or sets the major tickmarks and gridlines’ alignment on the numeric values axis.

Declaration

@property (readwrite) CGFloat gridAlignment

Property Value

Type	Description
CGFloat	The grid’s alignment

gridOffset Property

Gets or sets the first major tickmark’s and gridline’s offset from the range’s minimum value on the numeric values axis.

Declaration

@property (readwrite) CGFloat gridOffset

Property Value

Type	Description
CGFloat	The first major tickmark’s and gridline’s coordinate, in axis units.

labelTextFormatter Property

Gets or sets a formatter that provides numeric Y-axis labels’ text.

Declaration

@property (readwrite, nullable) id<DXNumericAxisLabelTextFormatter> labelTextFormatter

Property Value

Type	Description
id<DXNumericAxisLabelTextFormatter>	An object of a class implementing the DXNumericAxisLabelTextFormatter interface that formats axis values.

Remarks

Note that, this property has a higher priority than the DXSeriesLabel.format. If both are specified, the formatted value this property provides is used.

range Property

Gets or sets the values axis’s range parameters.

Declaration

@property (readwrite, nullable) DXNumericRange *range

Property Value

Type	Description
DXNumericRange *	The DXNumericRange object that specifies the range settings.

Instance Methods

addConstantLine: Instance Method

Adds the specified constant line to the numeric Y-axis.

Declaration

- (void)addConstantLine:(nonnull DXNumericConstantLine *)line

Parameters

Name	Type	Description
line	DXNumericConstantLine *	The DXNumericConstantLine object that specifies the constant line to add to the axis.

addStrip: Instance Method

Adds the specified strip to the numeric Y-axis.

Declaration

- (void)addStrip:(nonnull DXNumericStrip *)strip

Parameters

Name	Type	Description
strip	DXNumericStrip *	The DXNumericStrip object that specifies the strip to add to the axis.

removeConstantLine: Instance Method

Removes the specified constant line from the axis.

Declaration

- (void)removeConstantLine:(nonnull DXNumericConstantLine *)line

Parameters

Name	Type	Description
line	DXNumericConstantLine *	The DXNumericConstantLine object that specifies the constant line to be removed from the axis.

removeStrip: Instance Method

Removes the specified strip from the axis.

Declaration

- (void)removeStrip:(nonnull DXNumericStrip *)strip

Parameters

Name	Type	Description
strip	DXNumericStrip *	The DXNumericStrip object that specifies the strip to be removed from the axis.
