Hints: Crosshair Cursor

• Jan 11, 2022
• 3 minutes to read

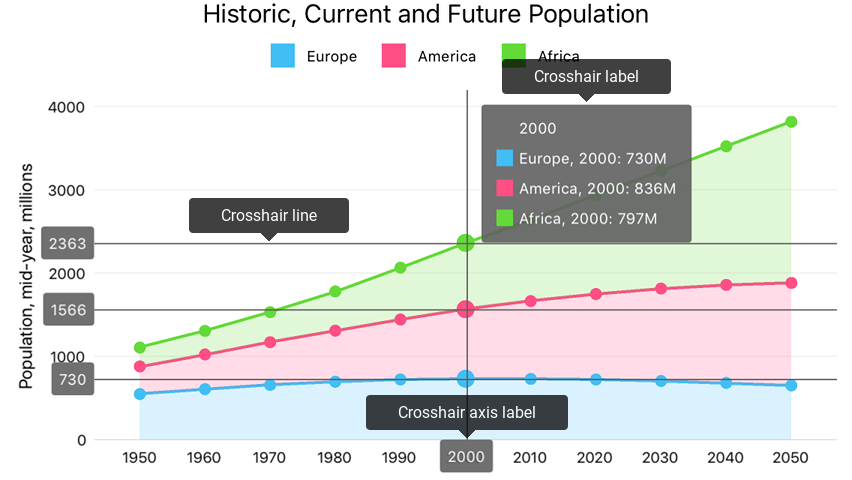

A Cartesian Chart can show a hint as a standard tooltip or a Crosshair Cursor.

How to: Specify Cartesian Chart’s hint type

Use the following code to specify the Cartesian Chart’s hint type:

Objective C

DXHint *hint = [[DXHint alloc] init];
DXCrosshairHintBehavior *hintBehavior = [[DXCrosshairHintBehavior alloc] init];

self.chart.hint = hint;
hint.behavior = hintBehavior;
hintBehavior.groupHeaderTextPattern = @"{A$MM/dd/YYYY}";
hintBehavior.maxSeriesCount = 3;

Swift

let hint = DXHint()
let hintBehavior = DXCrosshairHintBehavior()

self.chart.hint = hint
hint.behavior = hintBehavior;
hintBehavior.groupHeaderTextPattern = "{A$MM/dd/YYYY}";
hintBehavior.maxSeriesCount = 3;

C#

this.chart.Hint = new DXHint {
    Behavior = new DXCrosshairHintBehavior {
        GroupHeaderTextPattern = "{A$MM/dd/YYYY}",
        MaxSeriesCount = 3
    }
};

The DXHint.behavior property specifies the hint’s behavior.

The following behaviors are available:

Behavior	Sample Image	Description

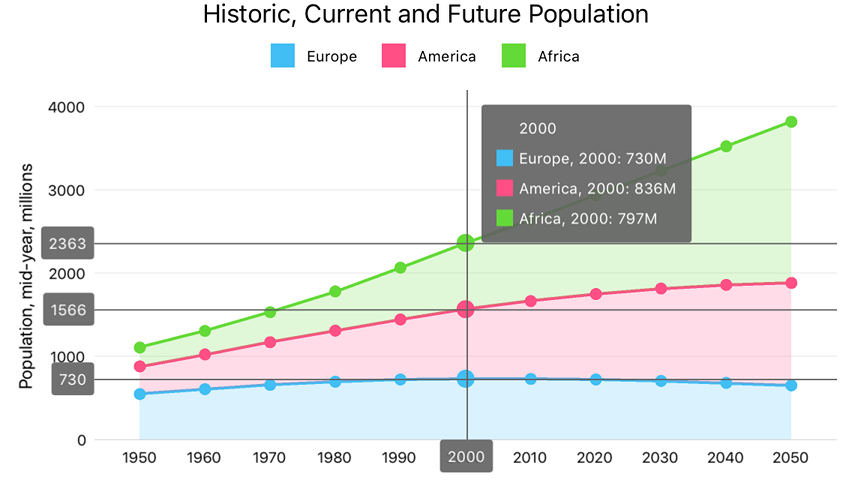

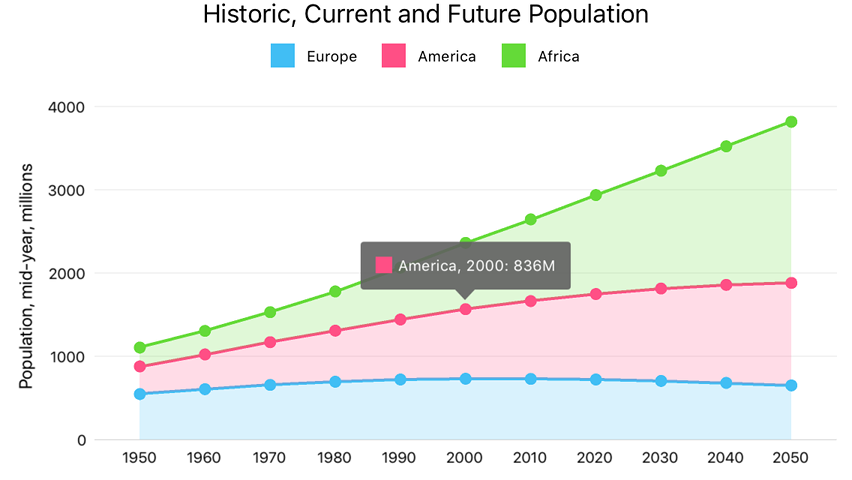

DXTooltipHintBehavior		The Chart hint behavior specifies if a Tooltip should be available as an interactive hint.
DXCrosshairHintBehavior		The Chart hint behavior specifies if a Crosshair Cursor should be available as an interactive hint.

How to: Configure a hint interaction with an axis

The Cartesian Chart’s hint can interact with an axis, for example, to show a Crosshair line that marks the current value or the current value’s label. The following code demonstrates how to disable a specific axis’ Crosshair line and label:

Objective C

DXAxisHintOptions *axisHintOptions = [[DXAxisHintOptions alloc] init];
axisHintOptions.hintLabelHidden = YES;
axisHintOptions.hintLineHidden = YES;
axisY.hintOptions = axisHintOptions;

Swift

let axisHintOptions = DXAxisHintOptions()
axisHintOptions.hintLabelHidden = true
axisHintOptions.hintLineHidden = true
axisY.hintOptions = axisHintOptions

C#

axisY.HintOptions = new DXAxisHintOptions {
    HintLabelHidden = true,
    HintLineHidden = true
}

The following symbols configure how the Crosshair Cursor interacts with an axis:

Symbol	Description
DXAxisBase.hintOptions	Gets or sets axis hint options that configure how the Crosshair Cursor interacts with the axis.
DXAxisHintOptions	The axis hint options storage.

How to: Snap the Crosshair label to a chart’s corner

The Crosshair label can follow the Crosshair’s argument line or be snapped to any chart corner.

The following sample demonstrates how to snap the Crosshair label to the Chart’s top-right corner:

Objective C

DXHint *hint = [[DXHint alloc] init];
DXCrosshairHintBehavior *hintBehavior = [[DXCrosshairHintBehavior alloc] init];
DXStaticLabelPosition *crosshairLabelPosition = [[DXStaticLabelPosition alloc] init];

self.chart.hint = hint;
hint.behavior = hintBehavior;
hintBehavior.labelPosition = crosshairLabelPosition;
crosshairLabelPosition.horizontalAlignment = DXLabelPositionHorizontalAlignmentRight;
crosshairLabelPosition.verticalAlignment = DXLabelPositionVerticalAlignmentTop;

Swift

let hint = DXHint()
let hintBehavior = DXCrosshairHintBehavior()
let crosshairLabelPosition = DXStaticLabelPosition()

self.chart.hint = hint
hint.behavior = hintBehavior
hintBehavior.labelPosition = crosshairLabelPosition
crosshairLabelPosition.horizontalAlignment = .right
crosshairLabelPosition.verticalAlignment = .top

C#

self.chart.Hint = new DXHint {
    Behavior = new DXCrosshairHintBehavior {
        LabelPosition = new DXStaticCrosshairLabelPosition {
            HorizontalAlignment = DXLabelPositionHorizontalAlignment.Right,
            VerticalAlignment = DXLabelPositionVerticalAlignment.Top
        }
    }
}

The following position modes specify the label’s position:

Position	SampleImage	Description
DXStaticCrosshairLabelPosition		The Crosshair Label position specifying that the Crosshair label always is at a position specified by the horizontalAlignment and verticalAlignment properties.
DXLineTrackingCrosshairLabelPosition		The Crosshair Label position specifying that the Crosshair label follows the Crosshair Cursor’s argument line.
