Use PDF Documents in Business Objects (CTP)

• Jul 15, 2025
• 2 minutes to read

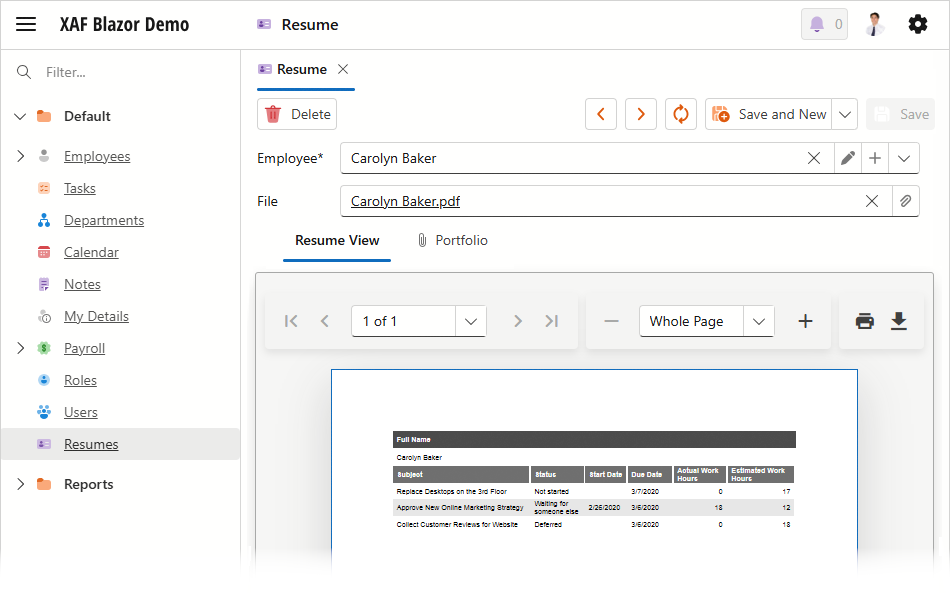

Blazor and WinForms XAF applications allow you to display PDF documents in a PDF Viewer property editor. The editor can display PDF documents stored in properties of the following types:

• Byte array
• Types that implement the IFileData interface

Important

The PDF Viewer Property Editor is currently available as a Community Technology Preview (CTP).

Tip

Try out the PDF Viewer in the MainDemo.NET.EFCore demo application installed as part of the XAF package. The default application location is %PUBLIC%\Documents\DevExpress Demos 25.1\Components\XAF\MainDemo.NET.EFCore.

You can add the PDF Viewer to your application as follows:

1. Enable the Office Module.
2. Assign PdfViewerPropertyEditor to a file data property in code or in the Model Editor (MySolution.Blazor.Server\Model.xafml (for Blazor) or MySolution.Win\Model.xafml (for WinForms)).

Assign the PDF Viewer Property Editor to a Property in Code

Decorate a business class property with the EditorAliasAttribute and pass the PdfViewerPropertyEditor value as the attribute parameter:

C# (EF Core)

using DevExpress.ExpressApp.Editors;
using DevExpress.Persistent.Base;
using DevExpress.Persistent.BaseImpl.EF;
// ...
[EditorAlias(EditorAliases.PdfViewerPropertyEditor)]
public virtual byte[] Data { get; set; }

C# (XPO)

using DevExpress.ExpressApp.Editors;
using DevExpress.Persistent.Base;
using DevExpress.Persistent.BaseImpl;
// ...
private byte[] data;
[EditorAlias(EditorAliases.PdfViewerPropertyEditor)]
public byte[] Data {
    get { return data; }
    set { SetPropertyValue(nameof(Data), ref data, value); }
}

Assign the PDF Viewer Property Editor to a Property in the Model Editor

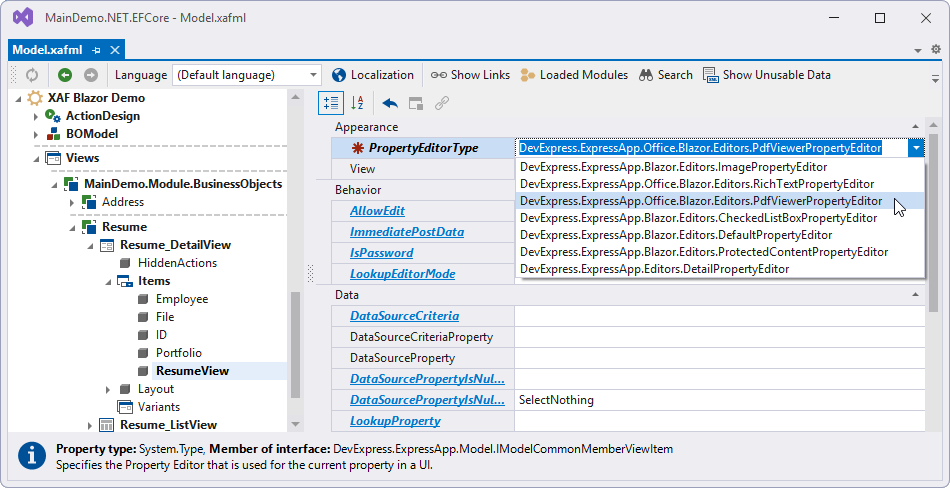

1. Double-click the corresponding Model.xafml file to start the Model Editor:
   • MySolution.Blazor.Server\Model.xafml (for Blazor)
   • MySolution.Win\Model.xafml (for WinForms)
2. Navigate to the following node: Views | {AppName}.Module.BusinessObjects | {ObjectType} | {ObjectType}_DetailView | Items | {Property Name}.

3. Set the PropertyEditorType property to one of the following values:

   • DevExpress.ExpressApp.Office.Blazor.Editors.PdfViewerPropertyEditor (for Blazor)
   • DevExpress.ExpressApp.Office.Win.PdfViewerPropertyEditor (for WinForms)
