Authenticate and Authorize Web API Endpoints

• Aug 11, 2025
• 3 minutes to read

The Web API supports all standard ASP.NET Core authentication techniques that you can specify in the MySolution.WebApi\Startup.cs (MySolution.Blazor.Server\Startup.cs) file. See the following topic for more information: Authentication.

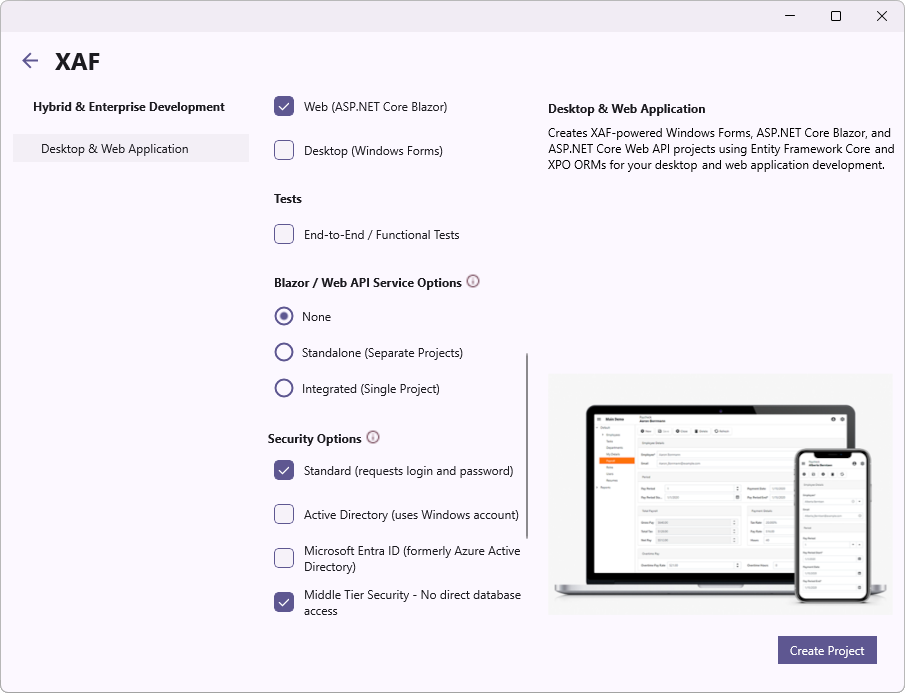

If you use the Template Kit to create a Web API project, enable authentication in the Security Options section:

Standard (requests login and password)

The kit generates JWT authentication scaffolding code for the Web API.

Active Directory (uses Windows account)

The kit adds the JWT scaffolding code to the MySolution.WebApi\appsettings.json file and the scaffolding code for Windows Active Directory to the MySolution.WebApi\Properties\launchSettings.json file.

Microsoft Entra ID (formerly Azure Active Directory)

The kit adds the JWT and Microsoft Entra ID scaffolding code to the MySolution.WebApi\appsettings.json file.

Middle Tier Security - No direct database access

The kit adds the MySolution.MiddleTier project to the application. Refer to the following help topic for more information: Middle Tier Security with EF Core.

See the following topics for information on how to configure the authentication scaffolding code and enable authentication:

• Configure the JWT Authentication
• Configure the OAuth2 Azure Authentication

Configure Authorization for Endpoints or Protect Business Object Data

You must define Security System permissions for business objects and properties you want to expose through a Web API Service (both built-in and custom endpoints). We do not recommend that you expose business object data to all users without security protection.

You can configure permissions using one of the following methods:

• In the code of the ModuleUpdater class (look for the Updater.cs file, because there may be different locations depending on your project configuration).
• In the administrative UI powered by XAF Blazor/WinForms (this feature requires the Universal license).

For more information, refer to the following concepts and examples:

• Create Predefined Users, Roles and Permissions in the Database
• How to restrict inter-departmental data access using Security Permissions (EF Core)

Authenticate a User in Code

XAF supports API that you can use to access and manage application users as well as authenticate users. This API includes the following services:

UserManager

Exposes API required to manage user objects in the database.

SignInManager

Exposes API required to sign a user into an application.

The following code snippet demonstrates how to use API that the UserManager and SignInManager services expose to sign in to a nested scope and execute custom endpoint logic on a service user’s behalf (user impersonation):

C#

using DevExpress.ExpressApp;
using DevExpress.ExpressApp.Security;
using MySolution.WebApi.BusinessObjects;
using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Mvc;
// ...
namespace MySolution.WebApi {
    [Route("api/[controller]")]
    [ApiController]
    [Authorize]
    public class CustomEndpointController : ControllerBase {
        private readonly IServiceProvider serviceProvider;
        public CustomEndpointController(IServiceProvider serviceProvider) {
            this.serviceProvider = serviceProvider;
        }

        [HttpPost]
        public void Post([FromBody] string value) {
            // ...
            // Create a nested service scope whithin which to establish a separate login session.
            IServiceScopeFactory serviceScopeFactory = serviceProvider.GetRequiredService<IServiceScopeFactory>();
            using (IServiceScope impersonationScope = serviceScopeFactory.CreateScope()) {
                // Use the UserManager to obtain the "ServiceUser" user object.
                using IObjectSpace nonSecuredObjectSpace = impersonationScope.ServiceProvider
                    .GetRequiredService<INonSecuredObjectSpaceFactory>().CreateNonSecuredObjectSpace<ApplicationUser>();
                ApplicationUser serviceUser = impersonationScope.ServiceProvider
                    .GetRequiredService<UserManager>().FindUserByName<ApplicationUser>(nonSecuredObjectSpace, "ServiceUser");

                // Sign in as "ServiceUser" to the nested scope.
                SignInManager signInManager = impersonationScope.ServiceProvider.GetService<SignInManager>();
                signInManager.SignIn(serviceUser);

                // Obtain an Object Space from the nested scope and use this Object Space
                // to manipulate business objects on the "ServiceUser" user's behalf.
                using IObjectSpace objectSpace = impersonationScope.ServiceProvider
                    .GetRequiredService<IObjectSpaceFactory>().CreateObjectSpace<Employee>();
                Employee newEmployee = objectSpace.CreateObject<Employee>();
                newEmployee.Name = value;
                // ...
                objectSpace.CommitChanges();
                // ...
            }
        }
    }
}
