AzureTileset Enum

Lists tilesets supplied by Azure Maps.

Namespace: DevExpress.Xpf.Map

Assembly: DevExpress.Xpf.Map.v25.1.dll

NuGet Package: DevExpress.Wpf.Map

Declaration

C#

public enum AzureTileset

VB.NET

Public Enum AzureTileset

Members

Name	Description	Image

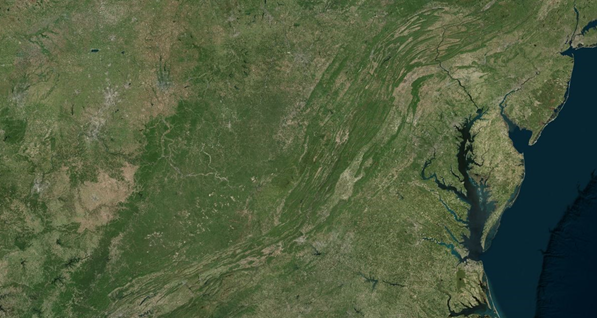

Imagery	A combination of satellite or aerial imagery. Only available in S1 and G2 pricing SKU. Supports zoom levels 1 through 19. Format: raster (png).

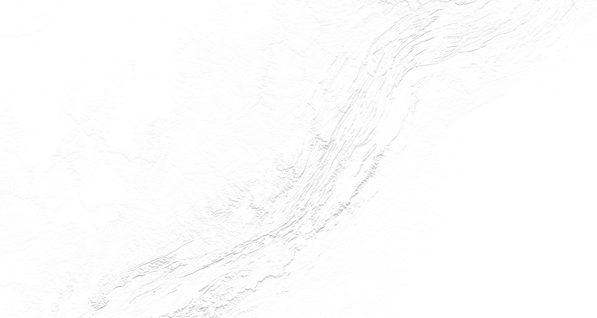

TerraMain	Shaded relief and terra layers. Supports zoom levels 1 through 17. Format: raster (png).

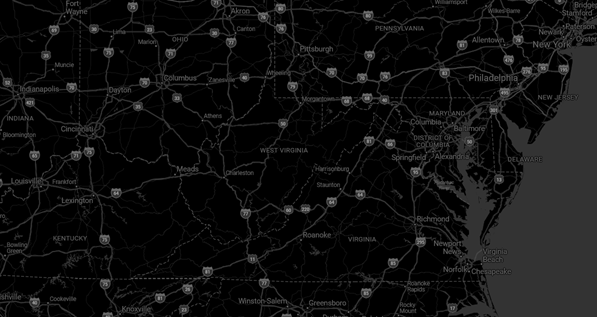

BaseDarkGrey	Label data in the Azure Maps dark grey style. Supports zoom levels 1 through 22. Format: raster (png).

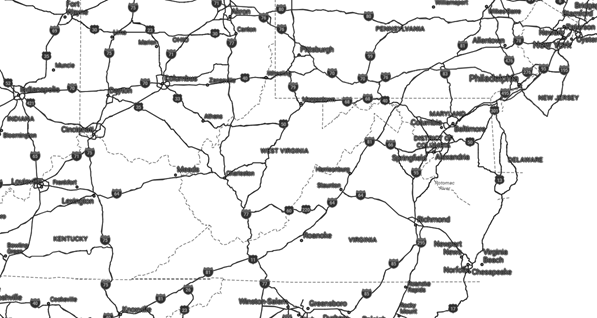

BaseHybridDarkgrey	Road, boundary and label data in the Azure Maps dark grey style. Supports zoom levels 1 through 22. Format: raster (png).

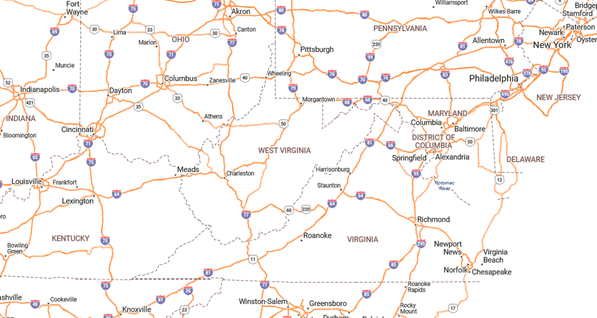

BaseHybridRoad	Road, boundary and label data in the Azure Maps main style. Supports zoom levels 1 through 22. Format: raster (png).

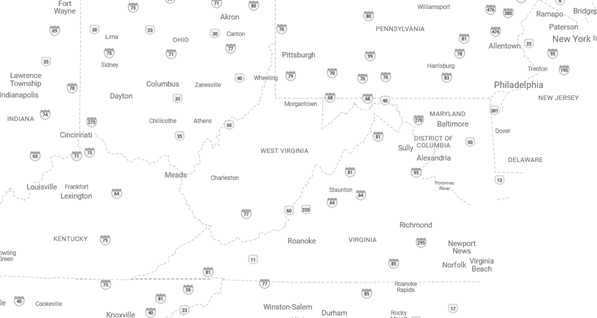

BaseLabelsDarkgrey	Label data in the Azure Maps dark grey style. Supports zoom levels 1 through 22. Format: raster (png).

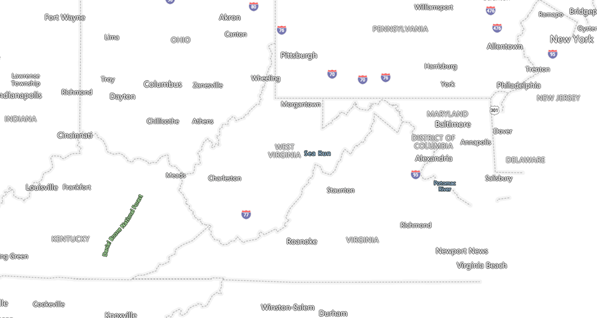

BaseLabelsRoad	Label data in the Azure Maps main style. Supports zoom levels 1 through 22. Format: raster (png).

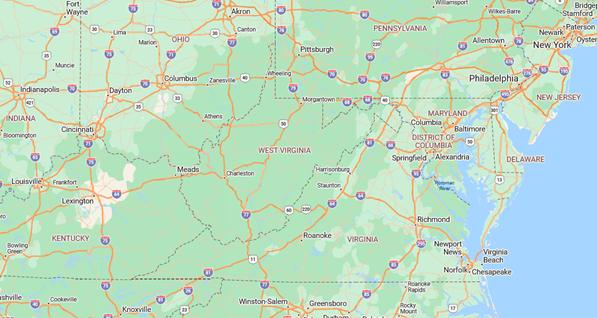

BaseRoad	All layers with the Azure Maps main style. Supports zoom levels 1 through 22. Format: raster (png).

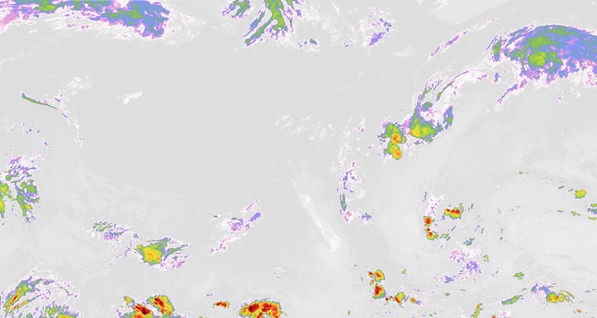

WeatherInfraredMain	Weather infrared tiles. Latest Infrared Satellite images shows clouds by their temperature. Supports zoom levels 1 through 15. Format: raster (png).

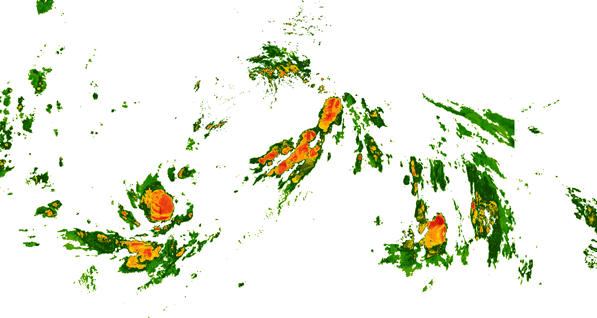

WeatherRadarMain	Weather radar tiles. Latest weather radar images including areas of rain, snow, ice, and mixed conditions. Supports zoom levels 1 through 15. Format: raster (png).

Related API Members

The following properties accept/return AzureTileset values:

• AzureMapDataProvider.Tileset
