NumericAxisX Class

The arguments axis that manages representation of series with NumericSeriesData data.

Declaration

public class NumericAxisX
extends AxisX

Remarks

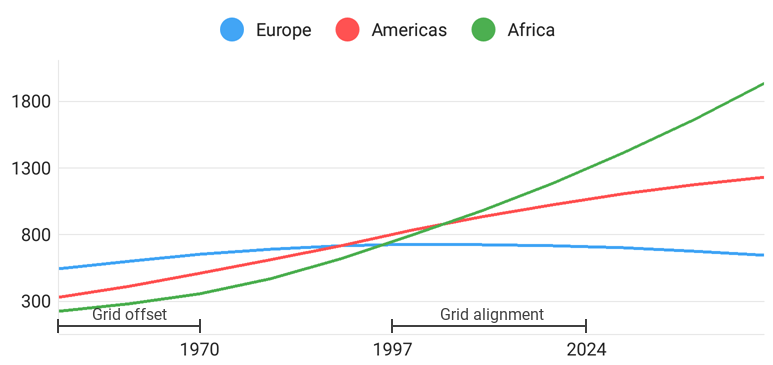

The following image demonstrates parameters specific to this axis:

Refer to the Axes guide to learn more about the Chart’s axes.

Inherited Members

java.lang.Object.equals(java.lang.Object)(Object)

Object.getClass()

java.lang.Object.hashCode()()

java.lang.Object.notify()()

java.lang.Object.notifyAll()()

java.lang.Object.toString()()

java.lang.Object.wait()()

java.lang.Object.wait(long)(long)

java.lang.Object.wait(long, int)(long,int)

getConstantLines()

getHintOptions()

getLabel()

getLabelTextFormatter()

getLayout()

getPosition()

getStrips()

getStyle()

getSynchronizer()

getTitle()

isPrimary()

isVisible()

removeAllConstantLines()

removeAllStrips()

removeConstantLine(int)

removeStrip(int)

setHintOptions(AxisHintOptions)

setLabel(AxisLabel)

setLabelTextFormatter(AxisLabelTextFormatter)

setLayout(AxisLayout)

setPosition(AxisPosition)

setPrimary(boolean)

setStyle(AxisStyle)

setSynchronizer(ChartSynchronizer)

setTitle(AxisTitle)

setVisible(boolean)

Inheritance

Object

ChartElement

StyledElement

AxisBase

AxisX

NumericAxisX

NumericAxisX()

Initializes a new NumericAxisX class instance with default parameters.

Declaration

public NumericAxisX()

Methods

addConstantLine(NumericConstantLine) Method

Adds the specified constant line to the axis.

Declaration

public void addConstantLine(NumericConstantLine line)

Parameters

Name	Type	Description
line	NumericConstantLine	The NumericConstantLine object to be added.

addStrip(NumericStrip) Method

Adds the specified constant line to the axis.

Declaration

public void addStrip(NumericStrip strip)

Parameters

Name	Type	Description
strip	NumericStrip	The NumericStrip object to be added.

getGridAlignment() Method

Returns the grid’s alignment.

Declaration

public Double getGridAlignment()

Returns

Type	Description
java.lang.Double	The grid’s alignment.

getGridOffset() Method

Returns the first major tickmark’s and gridline’s offset from the range’s minimum value.

Declaration

public Double getGridOffset()

Returns

Type	Description
java.lang.Double	The first major tickmark’s and gridline’s offset, in axis units.

getRange() Method

Returns the settings that specify the axis’s coordinate ranges.

Declaration

public NumericRange getRange()

Returns

Type	Description
NumericRange	The NumericRange object that specifies the range settings.

removeConstantLine(NumericConstantLine) Method

Removes the specified constant line from the axis.

Declaration

public void removeConstantLine(NumericConstantLine line)

Parameters

Name	Type	Description
line	NumericConstantLine	The NumericConstantLine object to be removed.

removeStrip(NumericStrip) Method

Removes the specified constant line from the axis.

Declaration

public void removeStrip(NumericStrip strip)

Parameters

Name	Type	Description
strip	NumericStrip	The NumericStrip object to be removed.

setGridAlignment(Double) Method

Specifies the grid’s alignment.

Declaration

public void setGridAlignment(Double value)

Parameters

Name	Type	Description
value	java.lang.Double	The grid’s alignment.

setGridOffset(Double) Method

Specifies the first major tickmark’s and gridline’s offset from the range’s minimum value.

Declaration

public void setGridOffset(Double value)

Parameters

Name	Type	Description
value	java.lang.Double	The first major tickmark’s and gridline’s offset, in axis units.

setRange(NumericRange) Method

Specifies the settings that specify the axis’s coordinate ranges.

Declaration

public void setRange(NumericRange range)

Parameters

Name	Type	Description
range	NumericRange	The NumericRange object that specifies the range settings.
