MarkerSeriesLabel Class

A storage of parameters of point labels of the Area, Line and Point series.

Declaration

public class MarkerSeriesLabel
extends SeriesLabel

Remarks

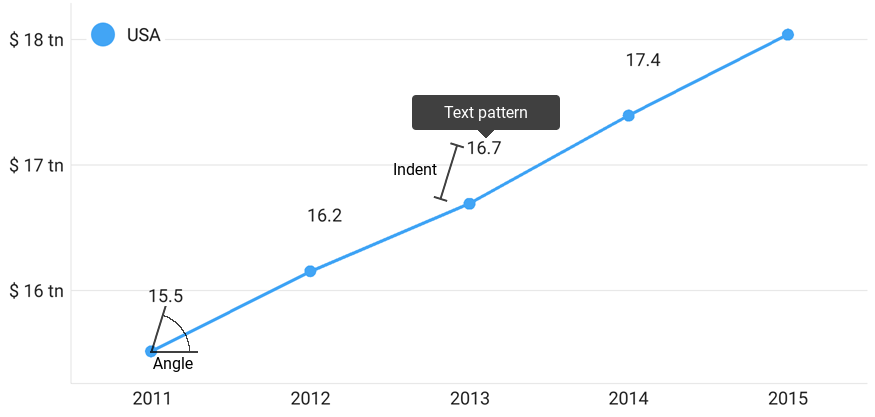

The following image demonstrates label parameters that can be configured.

Inherited Members

java.lang.Object.equals(java.lang.Object)(Object)

Object.getClass()

java.lang.Object.hashCode()()

java.lang.Object.notify()()

java.lang.Object.notifyAll()()

java.lang.Object.toString()()

java.lang.Object.wait()()

java.lang.Object.wait(long)(long)

java.lang.Object.wait(long, int)(long,int)

getIndent()

getTextPattern()

getTextProvider()

isVisible()

setIndent(int)

setTextPattern(String)

setTextProvider(SeriesLabelTextProvider)

setVisible(Boolean)

Inheritance

Object

ChartElement

StyledElement

SeriesLabel

MarkerSeriesLabel

MarkerSeriesLabel()

Initializes a new MarkerSeriesLabel class instance with default parameters.

Declaration

public MarkerSeriesLabel()

Methods

getAngle() Method

Returns an angle on which a label is rotated around its series point.

Declaration

public float getAngle()

Returns

Type	Description
float	The angle on which a label is rotated, in degrees.

Remarks

Note that angle is measured clockwise, from the positive direction of a screen’s X-axis.

getStyle() Method

Returns the appearance parameters of series labels.

Declaration

public SeriesLabelStyle getStyle()

Returns

Type	Description
SeriesLabelStyle	The SeriesLabelStyle object that configures the appearance of series labels.

setAngle(float) Method

Specifies an angle on which a label is rotated around its series point.

Declaration

public void setAngle(float angle)

Parameters

Name	Type	Description
angle	float	The angle on which a label is rotated, in degrees.

Remarks

Note that angle is measured clockwise, from the positive direction of a screen’s X-axis.

setStyle(SeriesLabelStyle) Method

Specifies the appearance parameters of series labels.

Declaration

public void setStyle(SeriesLabelStyle style)

Parameters

Name	Type	Description
style	SeriesLabelStyle	The SeriesLabelStyle object that configures the appearance of series labels.
