LineSeriesStyle Class

The storage of appearance parameters of a Line series.

Declaration

public class LineSeriesStyle
extends PointSeriesStyle

Remarks

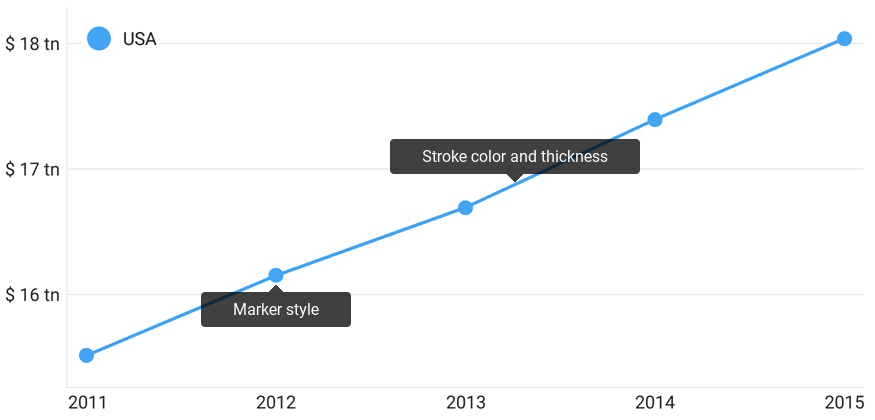

The following image represents the Line series parameters that can be customized.

Inherited Members

java.lang.Object.equals(java.lang.Object)(Object)

Object.getClass()

java.lang.Object.hashCode()()

java.lang.Object.notify()()

java.lang.Object.notifyAll()()

java.lang.Object.toString()()

java.lang.Object.wait()()

java.lang.Object.wait(long)(long)

java.lang.Object.wait(long, int)(long,int)

getMarkerStyle()

setMarkerStyle(MarkerStyle)

getMarkerSize()

setMarkerSize(Integer)

Inheritance

Object

ChartElement

StyleBase

BubbleSeriesStyle

PointSeriesStyle

LineSeriesStyle

LineSeriesStyle()

Initializes a new LineSeriesStyle class instance with default parameters.

Declaration

public LineSeriesStyle()

Methods

getStroke() Method

Returns the Line series stroke color.

Declaration

public Integer getStroke()

Returns

Type	Description
Integer	The color-int value that specifies the Line series stroke color.

getStrokeThickness() Method

Returns the stroke thickness of the Line series.

Declaration

public Float getStrokeThickness()

Returns

Type	Description
Float	The stroke thickness in pixels.

setStroke(Integer) Method

Specifies the Line series stroke color.

Declaration

public void setStroke(Integer stroke)

Parameters

Name	Type	Description
stroke	Integer	The color-int value that specifies the Line series stroke color.

setStrokeThickness(Float) Method

Specifies the stroke thickness of the Line series.

Declaration

public void setStrokeThickness(Float strokeThickness)

Parameters

Name	Type	Description
strokeThickness	Float	The stroke thickness in pixels.
