BarSeriesStyle Class

The bar series appearance settings’ storage.

Declaration

public class BarSeriesStyle
extends StyleBase

Remarks

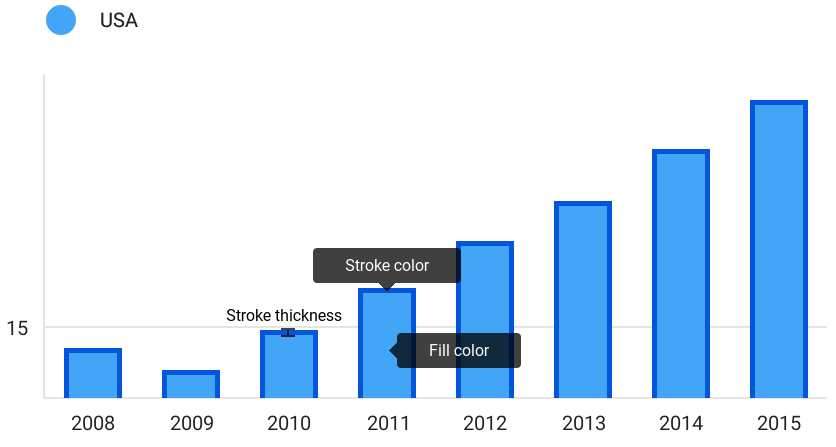

The following image shows the Bar series’s appearance parameters that can be modified.

Inherited Members

java.lang.Object.equals(java.lang.Object)(Object)

Object.getClass()

java.lang.Object.hashCode()()

java.lang.Object.notify()()

java.lang.Object.notifyAll()()

java.lang.Object.toString()()

java.lang.Object.wait()()

java.lang.Object.wait(long)(long)

java.lang.Object.wait(long, int)(long,int)

Inheritance

Object

ChartElement

StyleBase

BarSeriesStyle

BarSeriesStyle()

Initializes a new BarSeriesStyle class instance with default parameters.

Declaration

public BarSeriesStyle()

Methods

getFill() Method

Returns the bars’ fill color.

Declaration

public Integer getFill()

Returns

Type	Description
Integer	The bars’ fill color as a color-int value.

getStroke() Method

Returns the bars’ stroke color as a color-int value.

Declaration

public Integer getStroke()

Returns

Type	Description
Integer	A value specifying the bars’ stroke color.

getStrokeThickness() Method

Returns the bars’ stroke thickness.

Declaration

public Float getStrokeThickness()

Returns

Type	Description
Float	The bars’ stroke thickness, in pixels.

setFill(Integer) Method

Specifies the bars’ fill color.

Declaration

public void setFill(Integer color)

Parameters

Name	Type	Description
color	Integer	The bars’ fill color as a color-int value.

setStroke(Integer) Method

Specifies the bars’ stroke color as a color-int value.

Declaration

public void setStroke(Integer stroke)

Parameters

Name	Type	Description
stroke	Integer	A value specifying the bars’ stroke color.

setStrokeThickness(Float) Method

Specifies the bars’ stroke thickness.

Declaration

public void setStrokeThickness(Float strokeThickness)

Parameters

Name	Type	Description
strokeThickness	Float	The bars’ stroke thickness, in pixels.
