IModelMemberViewItem.View Property

Specifies a View displayed by the Property Editor. Applies to ListPropertyEditor, DetailPropertyEditor, ObjectPropertyEditor, LookupPropertyEditor, and TagBoxListPropertyEditor types.

Namespace: DevExpress.ExpressApp.Model

Assembly: DevExpress.ExpressApp.v25.1.dll

NuGet Package: DevExpress.ExpressApp

Declaration

C#

[DataSourceProperty("Views", new string[]{})]
IModelView View { get; set; }

VB.NET

<DataSourceProperty("Views", New String() {})>
Property View As IModelView

Property Value

Type	Description
IModelView	An IModelView object that certain Property Editor types use to create their inner View.

Remarks

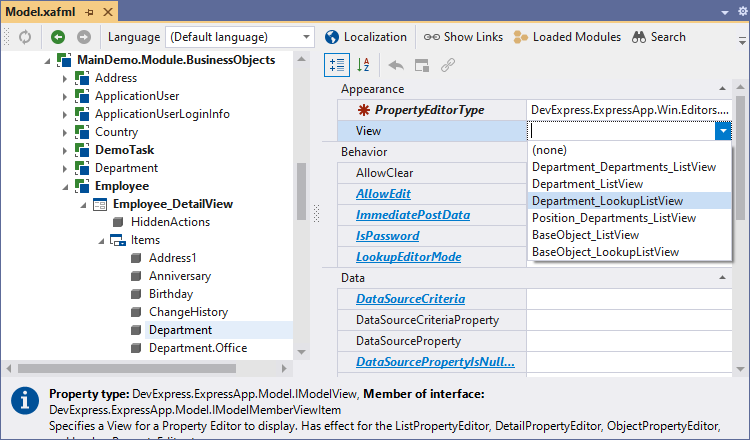

The Model Editor allows you to set the View property with the help of an auto-populated drop-down list. XAF populates the list based on the Property Editor type:

• For ListPropertyEditor, LookupPropertyEditor, or TagBoxListPropertyEditor, XAF displays only List Views.
• For DetailPropertyEditor or ObjectPropertyEditor, XAF displays only Detail Views.

For more information, refer to the following topics:

• Reference (Foreign Key, Complex Type) Properties
• Collection Properties

Since Lookup Property Editors are platform-specific, they are not available in the common module’s Model Editor. Invoke the Model Editor for a Model.xafml\MySolution.Blazor.Server, Model.xafml\MySolution.Win, or Model.xafml\MySolution.Web file to specify the List View model for the Lookup Editor.

Note

XAF ignores the View property value when you use the OpenObject Action to open a View. For more information, refer to the following topic: Built-in Controllers and Actions in the System Module: OpenObjectController.
