AreaSeriesStyle Class

The Area series appearance parameters’ storage.

Declaration

public class AreaSeriesStyle
extends LineSeriesStyle

Remarks

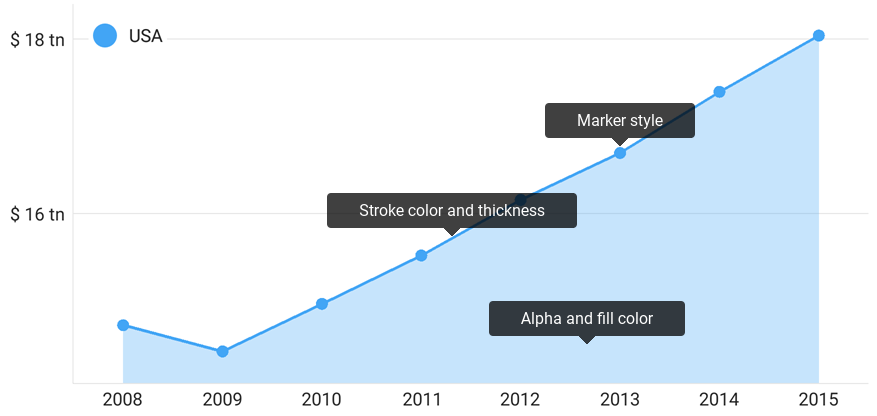

The following image represents the Area series’ appearance parameters that can be customized using the AreaSeriesStyle class:

Inherited Members

java.lang.Object.equals(java.lang.Object)(Object)

Object.getClass()

java.lang.Object.hashCode()()

java.lang.Object.notify()()

java.lang.Object.notifyAll()()

java.lang.Object.toString()()

java.lang.Object.wait()()

java.lang.Object.wait(long)(long)

java.lang.Object.wait(long, int)(long,int)

getMarkerStyle()

setMarkerStyle(MarkerStyle)

getMarkerSize()

setMarkerSize(Integer)

getStroke()

getStrokeThickness()

setStroke(Integer)

setStrokeThickness(Float)

Inheritance

Object

ChartElement

StyleBase

BubbleSeriesStyle

PointSeriesStyle

LineSeriesStyle

AreaSeriesStyle

AreaSeriesStyle()

Initializes a new AreaSeriesStyle class instance with default parameters.

Declaration

public AreaSeriesStyle()

Methods

getAlpha() Method

Returns the Area series fill’s alpha component.

Declaration

public Float getAlpha()

Returns

Type	Description
Float	The value between 0 and 1 specifying the area’s opacity.

getFill() Method

Returns the Area series fill color.

Declaration

public Integer getFill()

Returns

Type	Description
Integer	The Area series fill color.

setAlpha(Float) Method

Specifies the Area series fill’s alpha component.

Declaration

public void setAlpha(Float value)

Parameters

Name	Type	Description
value	Float	A value between 0 and 1 specifying the area’s opacity.

setFill(Integer) Method

Specifies the Area series’ fill color.

Declaration

public void setFill(Integer value)

Parameters

Name	Type	Description
value	Integer	The Area series fill color that is presented as a color-int value.
