Hints: Crosshair Cursor

• Jan 11, 2022
• 2 minutes to read

A Cartesian Chart can show a hint as a standard tooltip or a Crosshair Cursor.

How to: Specify the Crosshair Cursor behavior

Use the following code to specify the Cartesian Chart’s hint type:

Java

Hint hint = new Hint();
hint.setEnabled(true);
chart.setHint(hint);
CrosshairHintBehavior behavior = new CrosshairHintBehavior();
behavior.setMaxSeriesCount(3);
behavior.setGroupHeaderTextPattern("{A$MMM/dd/YYYY}");
hint.setBehavior(behavior);

C#

chart.Hint = new Hint {
    Enabled = true,
    Behavior = new CrosshairHintBehavior {
        MaxSeriesCount =3,
        GroupHeaderTextPattern = "{A$MMM/dd/YYYY}"
    }
};

The Hint.setBehavior(HintBehavior) method specifies the hint’s behavior. The following behaviors are available:

Behavior	Example	Description
TooltipHintBehavior		A hint behaves like a tooltip.

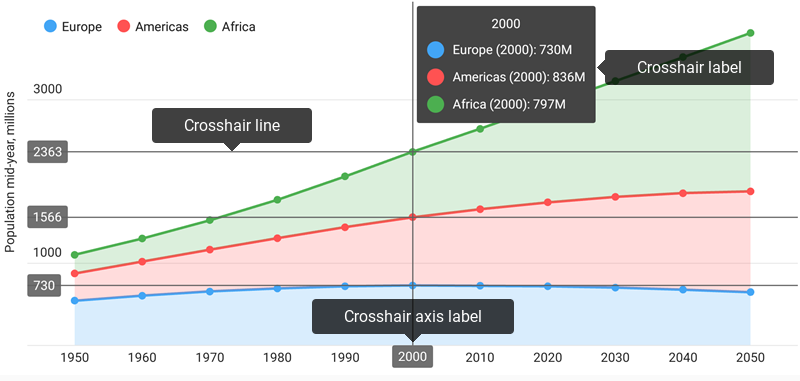

CrosshairHintBehavior		A hint behaves like a crosshair cursor.

How to: Configure a hint interaction with an axis

In addition to a hint-series interaction, Cartesian Chart’s hint interacts with an axis. The following code demonstrates how to disable a specific axis’ Crosshair line and label:

Java

AxisHintOptions axisHintOptions = new AxisHintOptions();
axisHintOptions.setLabelVisible(false);
axisHintOptions.setLineVisible(false);
yAxis.setHintOptions(axisHintOptions);

C#

yAxis.HintOptions = new AxisHintOptions {
    LabelVisible = false,
    LineVisible = false
};

The following symbols configure how the Crosshair Cursor interacts with an axis:

Symbol	Description
AxisHintOptions	The axis hint options storage.
AxisBase.setHintOptions(AxisHintOptions)	Specifies axis hint options.

How to: Snap the Crosshair label to a chart’s corner

The Crosshair label can follow the Crosshair’s argument line or settle any chart corner.

The following sample demonstrates how to snap the Crosshair label to the Chart’s top-right corner:

Java

Hint hint = new Hint();
chart.setHint(hint);
CrosshairHintBehavior behavior = new CrosshairHintBehavior();
behavior.setMaxSeriesCount(3);
hint.setBehavior(behavior);
StaticCrosshairLabelPosition crosshairLabelPosition = new StaticCrosshairLabelPosition();
crosshairLabelPosition.setVerticalAlignment(LabelPositionVerticalAlignment.TOP);
crosshairLabelPosition.setHorizontalAlignment(LabelPositionHorizontalAlignment.RIGHT);
behavior.setLabelPosition(crosshairLabelPosition);

C#

chart.Hint = new Hint {
    Behavior = new CrosshairHintBehavior {
        MaxSeriesCount = 3,
        LabelPosition = new StaticCrosshairLabelPosition {
            HorizontalAlignment = LabelPositionHorizontalAlignment.Right,
            VerticalAlignment = LabelPositionVerticalAlignment.Top
        }
    }
};

The following position modes specify the label’s position:

Position	Sample Image	Description

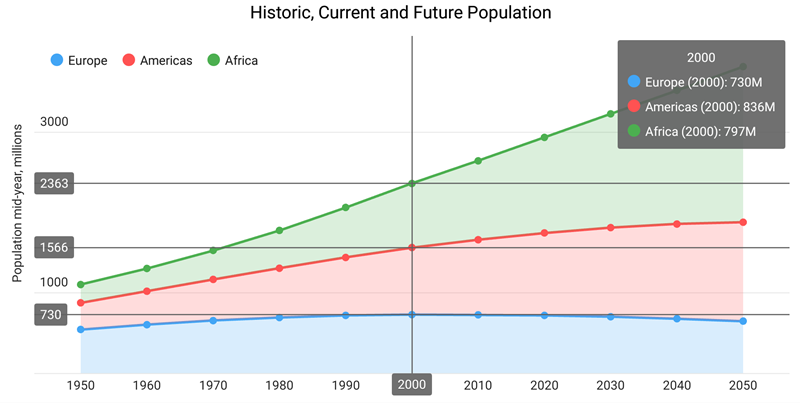

StaticCrosshairLabelPosition		A Crosshair’s Label has a static position.
LineTrackingCrosshairLabelPosition		Defines the crosshair label’s behavior when it follows the cursor.
