Series

• Dec 18, 2018
• 4 minutes to read

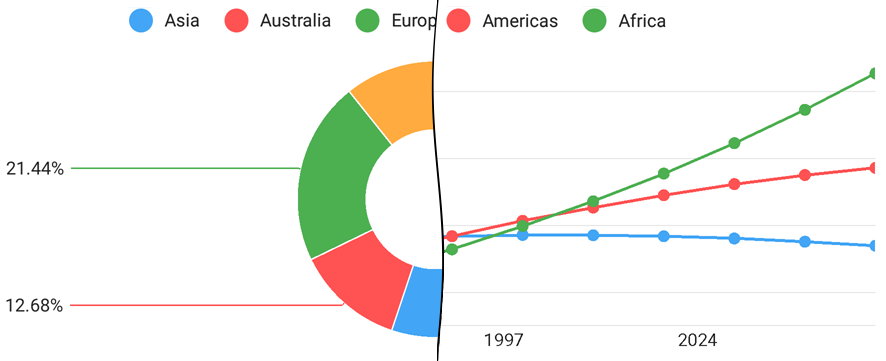

The Series manages data and its appearance on the chart. The following image represents several series on charts:

Note that, a chart’s series should be compatible with the chart type. Refer to the Pie Series and Cartesian Series guides for more information.

How to: Provide series data

All series interact with their data sources using Data interfaces. The following code snippets demonstrate how to implement one of them:

Java

class GdpData implements NumericSeriesData {
    private List<Gdp> gdps = new ArrayList<>();

    public  GdpData(Gdp... points) { for (Gdp point : points) gdps.add(point); }

    @Override
    public int getDataCount() { return gdps.size(); }

    @Override
    public double getArgument(int i) { return gdps.get(i).getYear(); }

    @Override
    public double getValue(int i) { return gdps.get(i).getProduct(); }
}

// ...
Series line = new LineSeries();
line.setData(new GdpData(gdps));
mChart.addSeries(line);
// ...

C#

public class GdpData : Java.Lang.Object, INumericSeriesData {
    List<Gdp> gdps;
    public int DataCount { get { return gdps.Count; } }
    public SimpleDateTimeDataAdapter(List<Gdp> gdps) {
        this.gdps = gdps;
    }
    public double GetArgument(int i) {
        return gdps[i].Year;
    }
    public double GetValue(int i) {
        return gdps[i].Product;
    }
}
//...
Series lineSeries = new LineSeries();
lineSeries.Data = new GdpData(gdps);
chart.AddSeries(lineSeries);
//...

Note

The series Data source type should be compatible with the axis type in the cartesian chart; otherwise series is not plotted on the chart. Refer to the Data guide to learn more.

The table below represents all symbols required to specify data.

Symbol	Description
PieSeries.getData()	Returns the Pie series‘s data.
PieSeries.setData(PieSeriesData)	Specifies the Pie series‘s data.
PieSeriesData	The interface that should be implemented by the data adapter providing data for pie series.
Series.getData()	Returns the Cartesian series‘s data.
Series.setData(XYSeriesData)	Specifies the Cartesian series‘s data.
QualitativeSeriesData	The interface of a data source providing points for a Cartesian series, with a qualitative argument and a single numeric value.
WeightedQualitativeSeriesData	The interface of a data source providing the Bubble series points that have qualitative arguments.
NumericSeriesData	The interface of a data source providing points for a Cartesian series, with a numeric argument and a single numeric value.
WeightedNumericSeriesData	The interface of a data source providing the Bubble series points that have numeric arguments.
DateTimeSeriesData	The interface which a class that provides data points with date-time arguments should implement.
WeightedDateTimeSeriesData	The interface of a data source providing the Bubble series points that have date-time arguments.
FinancialSeriesData	A class that provides financial data points should implement this interface.

How to: Configure series point labels

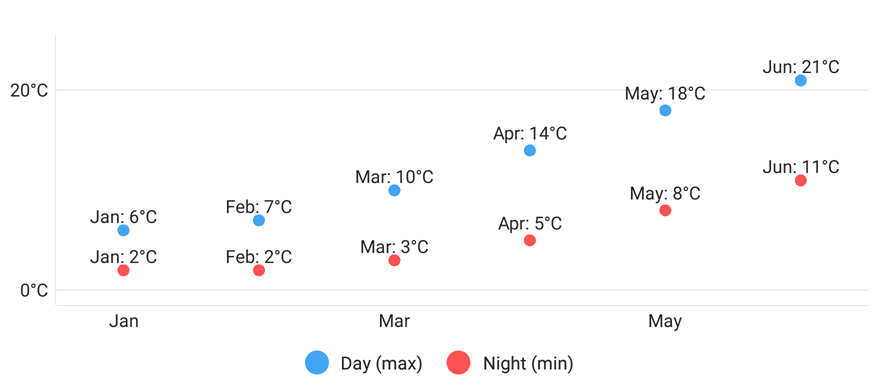

Labels can accompany series points. Note that different series types have different label settings. The image below demonstrates a Line series’s customized point labels.

The following code snippet demonstrates how to configure a Point series point labels:

MarkerSeriesLabel label = new MarkerSeriesLabel();
label.setTextPattern("{A$tb}: {V$.0f}°C");
label.setVisible(true);
series.setLabel(label);

MarkerSeriesLabel label = new MarkerSeriesLabel();
label.SetVisible(new Java.Lang.Boolean(true));
label.TextPattern = "{A$tb}: {V$.0f}°C";
series.Label = label;

Use the setLabel method to define the settings that specifies the contents, position and appearance of series point labels.

In the code above, series label placeholders (A and V) specify a series point value that should be added to the label. The following label placeholders are available:

Placeholder	Description
{S}	Displays a series name.
{A}	Displays a series point argument.
{L}	Displays a pie series point label.
{V}	Displays a series point value.
{VP}	Displays a series point value as percentages.
{W}	Displays a Bubble series point weight.
{O}	Displays a financial series point open value.
{H}	Displays a financial series point high value.
{L}	Displays a financial series point low value.
{C}	Displays a financial series point close value.
{HV}	Displays a range bar series point max value.
{LV}	Displays a range bar series point min value.

Note

These values can be formatted using default format strings after the $ sign. For example, in the {VP$#.##} string, VP is a placeholder, $ is a format string separator, and #.## is a format string.

How to: Customize appearance of series

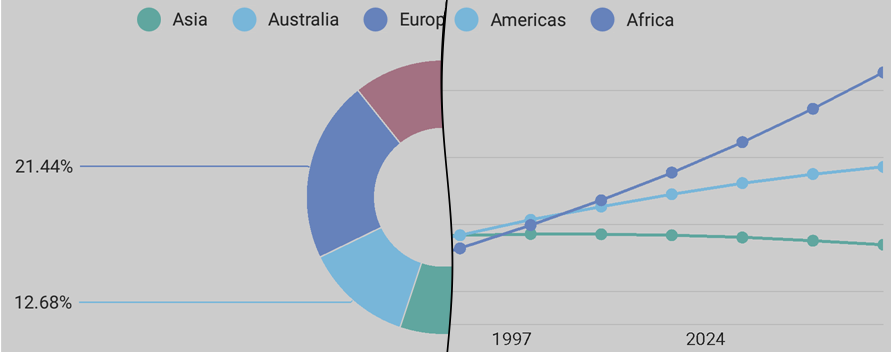

A series’ appearance parameters depend on the series type. The following image demonstrates customizable appearance parameters:

Each series has style parameters, available using the getStyle, setStyle methods. Refer to the required series type reference for more information.

Series type	Series style type
PieSeries	PieSeriesStyle
DonutSeries	PieSeriesStyle
AreaSeries	AreaSeriesStyle
StackedAreaSeries	AreaSeriesStyle
FullStackedAreaSeries	AreaSeriesStyle
StepAreaSeries	AreaSeriesStyle
BarSeries	BarSeriesStyle
StackedBarSeries	BarSeriesStyle
FullStackedBarSeries	BarSeriesStyle
FullStackedBarSeries	BarSeriesStyle
FullStackedBarSeries	BarSeriesStyle
PointSeries	PointSeriesStyle
BubbleSeries	BubbleSeriesStyle
LineSeries	LineSeriesStyle
StepLineSeries	LineSeriesStyle
ScatterLineSeries	LineSeriesStyle
CandleStickSeries	CandleStickSeriesStyle
StockSeries	StockSeriesStyle
