Lesson 1: How to Create a Pie Chart

• Aug 16, 2019
• 7 minutes to read

This guide introduces the DevExpress Charts Suite for iOS and shows you how to create an application that displays land area by country.

Step 1. Add a Pie Chart to a View

First, add a Pie Chart to a new application and create the chart’s outlet by following steps below.

• Create a new application using your preferred IDE.

• Import the library into the application’s project. The Import the Library guide explains how to do this.

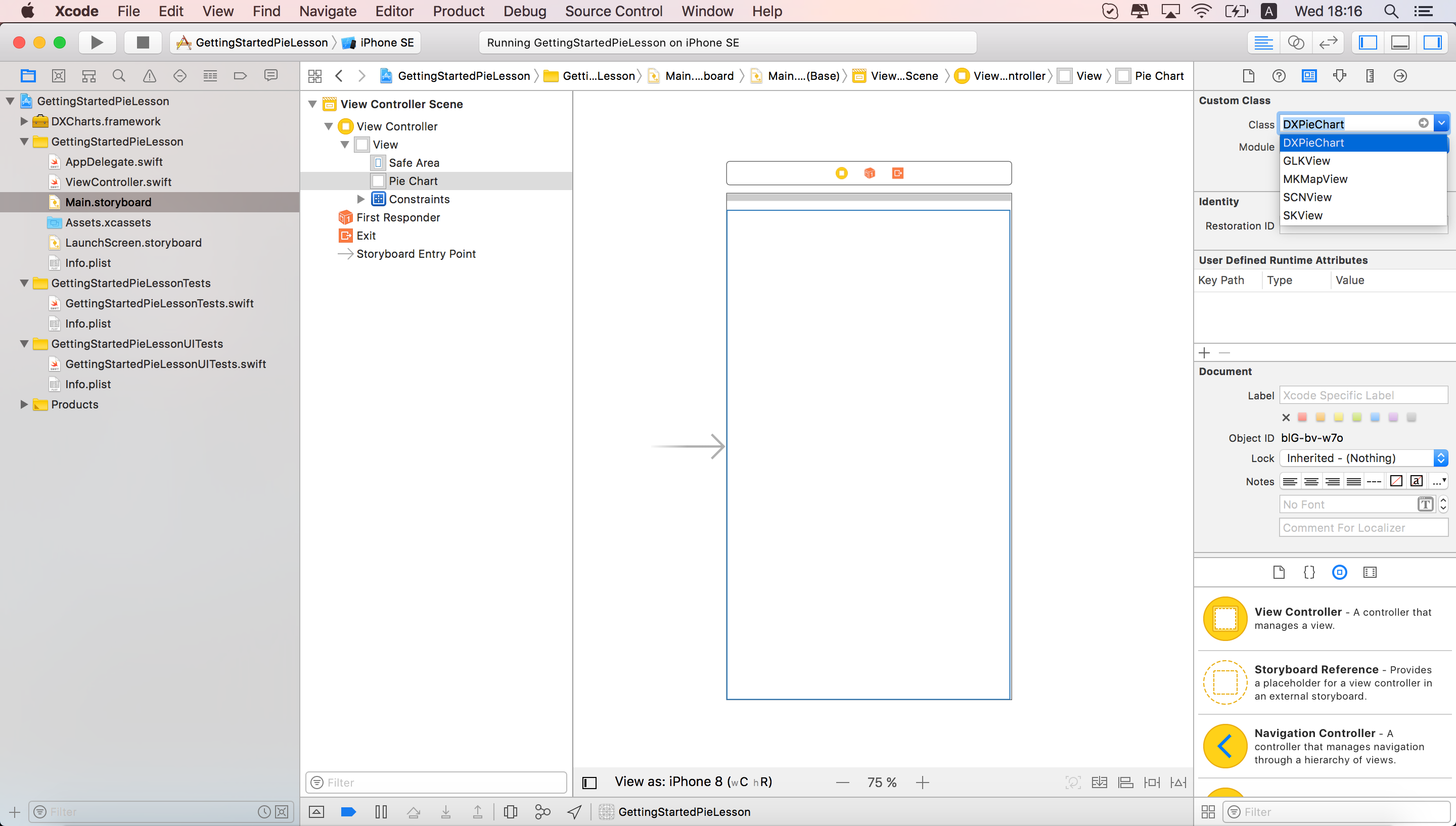

• Add a new view to the Main storyboard and set its class to DXPieChart.

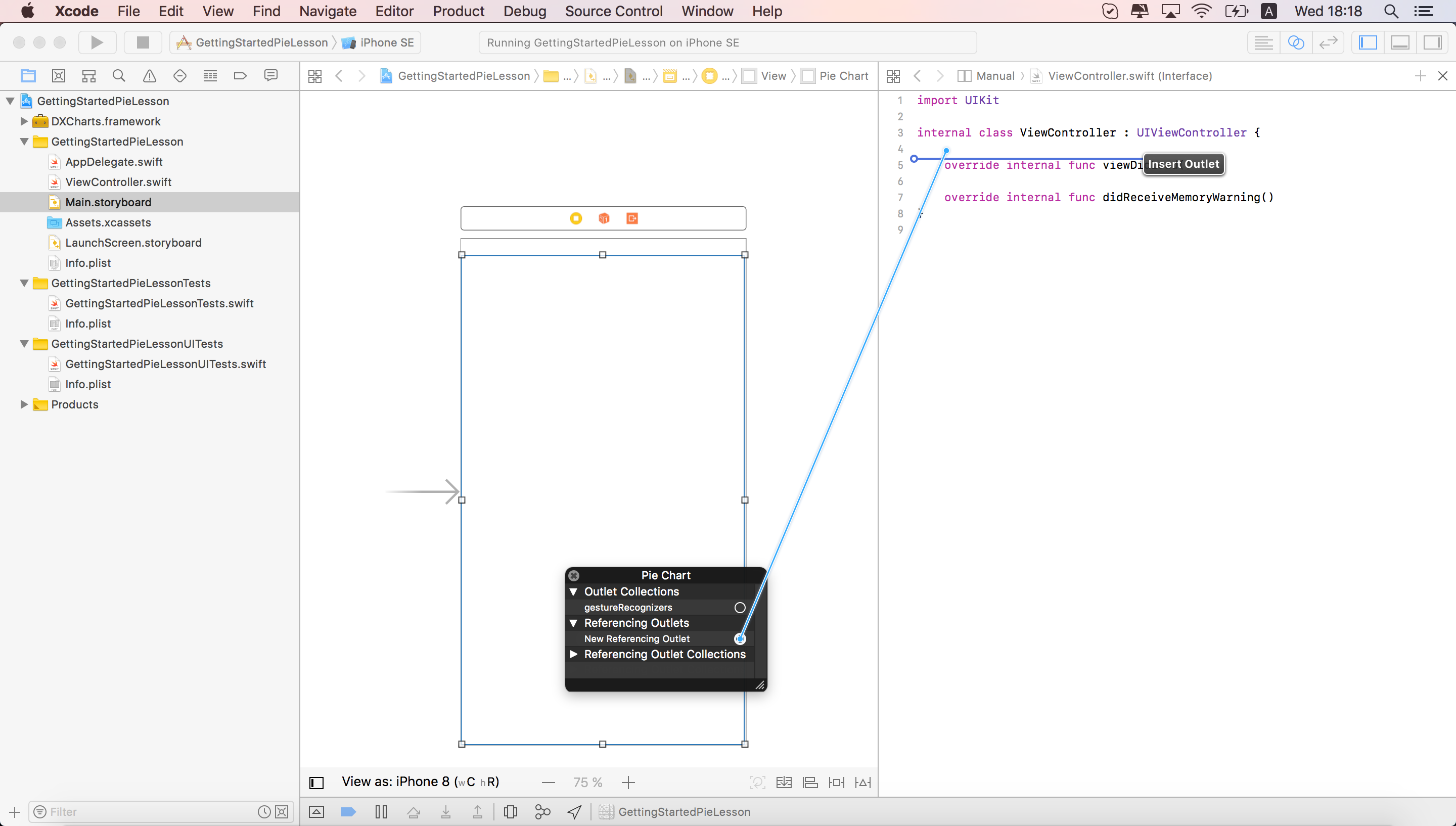

• Connect the DXPieChart view to the view controller using an Outlet. Switch to the Assistant editor and right click the view. Drag-and-drop the New Referencing Outlet item from the invoked menu to the ViewController class declaration.

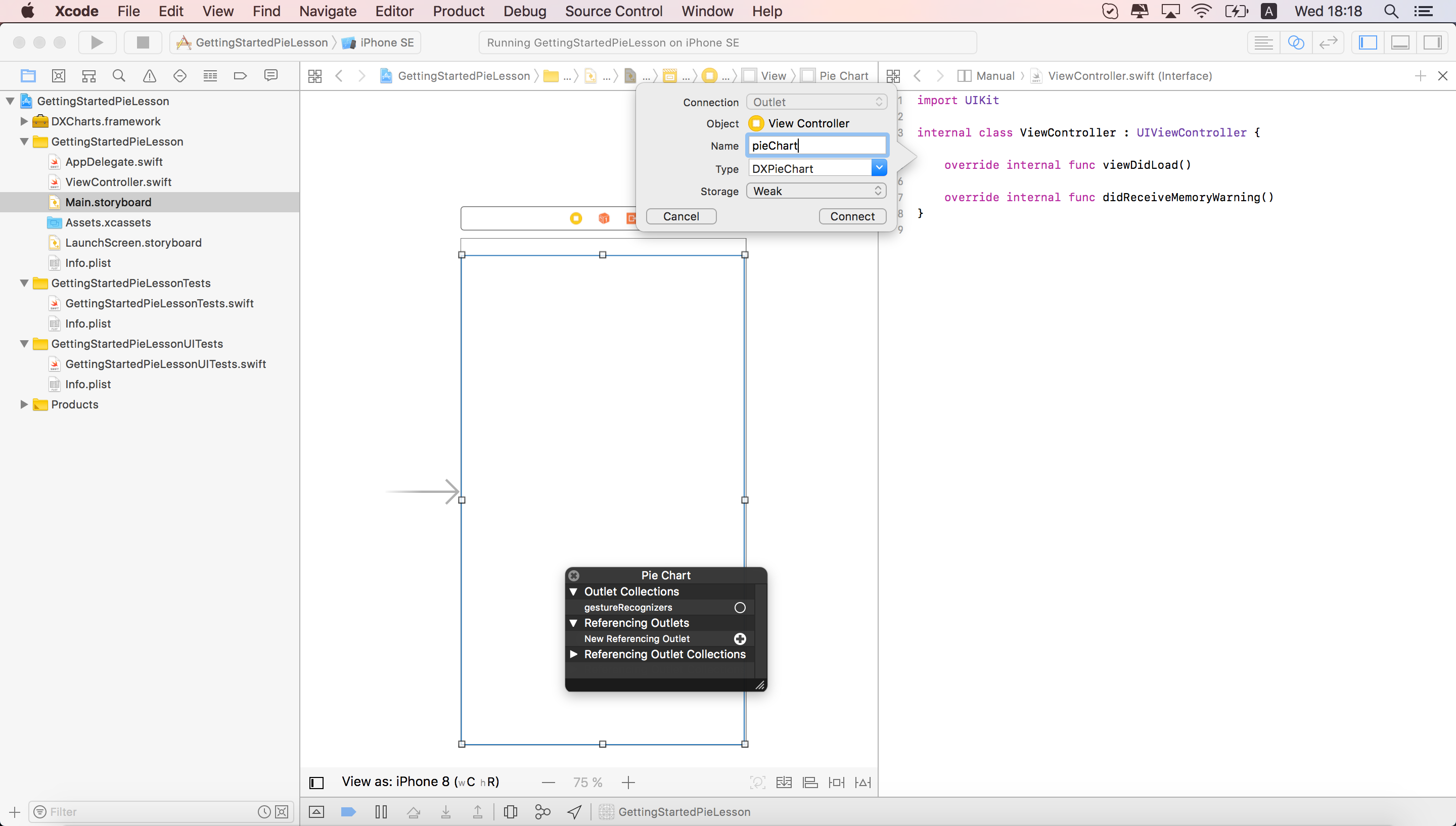

• Type the chart name and click Connect in the invoked menu.



  Note

  You should import the library into the class file for the Pie Chart to work correctly.

Step 2. Populate the Pie Chart with Data

This step populates the DXPieChart with series.

• Create a new class that adopts the DXPieSeriesData protocol:

  Objective C

  @interface CountryInfo: NSObject
      +(instancetype)infoWithName:(NSString *)name area:(NSNumber *)area;
      @property(readonly) NSString *name;
      @property(readonly) NSNumber *area;
  @end

  @interface CountryAreaData: NSObject <DXPieSeriesData>
      +(instancetype)dataWithCountryInfos:(NSArray<CountryInfo *> *)infos;
  @end

  @implementation CountryInfo {
  +(instancetype)infoWithName:(NSString *)name area:(NSNumber *)area {
      CountryInfo *info = [[CountryInfo alloc] init];
      if (info != nil) {
          info.name = name;
          info.area = area;
      }
      return info;
  }
  @end

  @implementation CountryAreaData {
      NSArray<CountryInfo *> *countryInfos;
  }
  +(instancetype)dataWithCountryInfos:(NSArray<CountryInfo *> *)infos {
      GdpData *data = [[GdpData alloc] init];
      if (data != nil) {
          data->countryInfos = infos;
      }
      return data;
  }
  -(int) getDataCount {
      return (int)countryInfos.count;
  }
  -(NSString *) getArgumentByIndex: (int) index {
      return [countryInfos objectAtIndex:(NSInteger)index].name;
  }
  -(double) getValueByIndex: (int) index {
      return [[countryInfos objectAtIndex:(NSInteger)index].area doubleValue];
  }
  @end


  Swift

  class CountryInfo {
      let name: String
      let area: Double

      required init(name: String, area: Double) {
          self.area = area
          self.name = name
      }
  }

  class CountryData : NSObject, DXPieSeriesData {
      private let countryInfos: [CountryInfo]

      required init(_ countryInfos: [CountryInfo]) {
          self.countryInfos = countryInfos
      }

      func getCount() -> Int32 {
          return Int32(self.countryInfos.count)
      }

      func getLabelBy(_ index: Int32) -> String! {
          return self.countryInfos[Int(index)].name
      }

      func getValueBy(_ index: Int32) -> Double {
          return self.countryInfos[Int(index)].area
      }
  }


  C#

  class CountryInfo {
      String Name { get; private set; }
      double Area { get; private set; }

      public CountryInfo(String name, double area) {
          this.area = area;
          this.name = name;
      }
  }

  class CountryData : DXPieSeriesData {
      CountryInfo[] countryInfos;

      public CountryData(CountryInfo[] countryInfos) {
          this.countryInfos = countryInfos;
      }

      public int getCount() {
          return this.countryInfos.Length)
      }

      public String getLabelByIndex(int index) {
          return self.countryInfos[index].Name;
      }

      public double getValueByIndex(int index) {
          return self.countryInfos[index].Area;
      }
  }


• In the controller’s viewDidLoad method, create a new DXDonutSeries series instance and assign a data object with the specified parameters to the DXSeries.data property. Then add a series to the chart:

  Objective C

  DXDonutSeries *countrySeries = [[DXDonutSeries alloc] init];
  countrySeries.data = [CountryData dataWithCountryInfos: @[
      [CountryInfo infoWithName: @"Russia" area: 17.098],
      [CountryInfo infoWithName: @"Canada" area: 9.985],
      [CountryInfo infoWithName: @"People's Republic of China" area: 9.597],
      [CountryInfo infoWithName: @"United States of America" area: 9.834],
      [CountryInfo infoWithName: @"Brazil" area: 8.516],
      [CountryInfo infoWithName: @"Australia" area: 7.692],
      [CountryInfo infoWithName: @"India" area: 3.287],
      [CountryInfo infoWithName: @"Others" area: 81.2]]];
  [self.pieChart addSeries:countrySeries];


  Swift

  let countrySeries = DXDonutSeries()
  countrySeries.data = CountryData([
      CountryInfo(name: "Russia", area: 17.098),
      CountryInfo(name: "Canada", area: 9.985),
      CountryInfo(name: "People's Republic of China", area: 9.597),
      CountryInfo(name: "United States of America", area: 9.834),
      CountryInfo(name: "Brazil", area: 8.516),
      CountryInfo(name: "Australia", area: 7.692),
      CountryInfo(name: "India", area: 3.287),
      CountryInfo(name: "Others", area: 81.2)])
  self.pieChart.addSeries(countrySeries)


  C#

  this.pieChart.AddSeries(new DXDonutSeries() {
      Data = new CountryData(new CountryInfo[] {
          new CountryInfo("Russia", 17.098),
          new CountryInfo("Canada", 9.985),
          new CountryInfo("People's Republic of China", 9.597),
          new CountryInfo("United States of America", 9.834),
          new CountryInfo("Brazil", 8.516),
          new CountryInfo("Australia", 7.692),
          new CountryInfo("India", 3.287),
          new CountryInfo("Others", 81.2)
      })
  });


Step 3. Modify the Pie Chart’s Tooltip

In this step, you configure Pie Chart’s tooltip.

• Create a new DXPieHint instance and set its enabled property to YES, then assign the hint to the DXPieChart.hint property:

  Objective C

  DXPieHint *pieHint = [[DXPieHint alloc] init];
  pieHint.enabled = YES;
  self.pieChart.hint = pieHint;


  Swift

  let pieHint = DXPieHint()
  pieHint.enabled = true
  self.pieChart.hint = pieHint


  C#

  this.pieChart.Hint = new DXPieHint() {
      Enabled = false
  };


• Specify the series point’s hint text pattern to configure donut segments’ tooltip text:

  Objective C

  DXPieSeriesHintOptions *hintOptions = [[DXPieSeriesHintOptions alloc] init];
  hintOptions.pointTextPattern = @"{L}: {V}M km²";
  countrySeries.hintOptions = hintOptions;


  Swift

  let hintOptions = DXPieSeriesHintOptions()
  hintOptions.pointTextPattern = "{L}: {V}M km²"
  countrySeries.hintOptions = hintOptions


  C#

  this.pieChart.AddSeries(new DXDonutSeries() {
      // Series' Data configuration skipped.
      HintOptions = new DXPieSeriesHintOptions {
          TooltipTextPattern = "{L}: {V}M km²"
      }
  }


Step 4. Configure the Pie Chart’s Appearance

Finally, add the pie Chart’s legend, customize the palette used to color series, enable series labels, and modify the series’ appearance.

• Create a new DXLegend object, modify its settings, and assign it to the DXChartBase.legend property:

  Objective C

  DXLegend *legend = [[DXLegend alloc] init];
  legend.horizontalPosition = DXLegendHorizontalPositionRightOutside;
  legend.verticalPosition = DXLegendVerticalPositionCenter;
  legend.orientation = DXLegendOrientationTopToBottom;
  legend.hidden = NO;
  self.pieChart.legend = legend;


  Swift

  let legend = DXLegend()
  legend.horizontalPosition = .rightOutside
  legend.verticalPosition = .center
  legend.orientation = .topToBottom
  legend.hidden = false
  self.pieChart.legend = legend


  C#

  this.pieChart.Legend = new DXLegend {
      HorizontalPosition = DXLegendHorizontalPosition.RightOutside,
      VerticalPosition = DXLegendVerticalPosition.Center,
      Orientation = DXLegendOrientation.TopToBottom,
      Hidden = false
  }


• Create a new DXPieChartStyle object that stores a Pie Chart’s appearance settings, configure the style’s palette property, and assign it to the the DXPieChart.style property:

  Objective C

  DXPieChartStyle *pieChartStyle = [[DXPieChartStyle alloc] init];
  DXPalette *palette = [[DXPalette alloc] init];
  palette.colors = @[[UIColor colorWithHue: 202./360. saturation: 1 brightness: 1 alpha: 1],
                     [UIColor colorWithHue: 104./360. saturation: 0.75 brightness: 0.85 alpha: 1],
                     [UIColor colorWithHue: 45./360. saturation: 1 brightness: 0.98 alpha: 1],
                     [UIColor colorWithHue: 9./360. saturation: 1 brightness: 1 alpha: 1],
                     [UIColor colorWithHue: 330./360. saturation: 0.63 brightness: 0.76 alpha: 1],
                     [UIColor colorWithHue: 0./360. saturation: 0 brightness: 0.37 alpha: 1],
                     [UIColor colorWithHue: 202./360. saturation: 1 brightness: 0.62 alpha: 1],
                     [UIColor colorWithHue: 104./360. saturation: 0.87 brightness: 0.55 alpha: 1]];
  pieChartStyle.palette = palette;
  self.pieChart.style = pieChartStyle;


  Swift

  let pieChartStyle = DXPieChartStyle()
  let palette = DXPalette()
  palette.colors = [
      UIColor(hue: 202/360, saturation: 1, brightness: 1, alpha: 1),
      UIColor(hue: 104/360, saturation: 0.75, brightness: 0.85, alpha: 1),
      UIColor(hue: 45/360, saturation: 1, brightness: 0.98, alpha: 1),
      UIColor(hue: 9/360, saturation: 1, brightness: 1, alpha: 1),
      UIColor(hue: 330/360, saturation: 0.63, brightness: 0.76, alpha: 1),
      UIColor(hue: 0/360, saturation: 0, brightness: 0.37, alpha: 1),
      UIColor(hue: 202/360, saturation: 1, brightness: 0.62, alpha: 1),
      UIColor(hue: 104/360, saturation: 0.87, brightness: 0.55, alpha: 1),
  ]
  pieChartStyle.palette = palette
  self.pieChart.style = pieChartStyle


  C#

  pieChart.style = new DXPieChartStyle() {
      Palette = new DXPalette() {
          Colors = new UIColor[] {
              UIColor(hue: 202./360., saturation: 1, brightness: 1, alpha: 1),
              UIColor(hue: 104./360., saturation: 0.75, brightness: 0.85, alpha: 1),
              UIColor(hue: 45./360., saturation: 1, brightness: 0.98, alpha: 1),
              UIColor(hue: 9./360., saturation: 1, brightness: 1, alpha: 1),
              UIColor(hue: 330./360., saturation: 0.63, brightness: 0.76, alpha: 1),
              UIColor(hue: 0./360., saturation: 0, brightness: 0.37, alpha: 1),
              UIColor(hue: 202./360., saturation: 1, brightness: 0.62, alpha: 1),
              UIColor(hue: 104./360., saturation: 0.87, brightness: 0.55, alpha: 1),
          }
      }
  };


• Create a new DXPieSeriesLabel object that stores Pie series’ labels settings, configure the label’s textPattern, position, and style properties, and assign the label to the series:

  Objective C

  DXPieSeriesLabel *seriesLabel = [[DXPieSeriesLabel alloc] init];
  DXPieSeriesLabelStyle *seriesLabelStyle = [[DXPieSeriesLabelStyle alloc] init];
  DXTextStyle *textStyle = [[DXTextStyle alloc] init];
  textStyle.foregroundColor = UIColor.whiteColor;
  seriesLabelStyle.textStyle = textStyle;
  seriesLabel.style = seriesLabelStyle;
  seriesLabel.hidden = DXDefaultBooleanNo;
  seriesLabel.position = DXSeriesLabelPositionInside;
  seriesLabel.textPattern = @"{VP} %";
  countrySeries.label = seriesLabel;


  Swift

  let seriesLabel = DXPieSeriesLabel()
  let seriesLabelStyle = DXPieSeriesLabelStyle()
  let textStyle = DXTextStyle()
  textStyle.foregroundColor = UIColor.white
  seriesLabelStyle.textStyle = textStyle
  seriesLabel.style = seriesLabelStyle
  seriesLabel.hidden = .no
  seriesLabel.position = .inside
  seriesLabel.textPattern = "{VP} %"
  countrySeries.label = seriesLabel


  C#

  this.pieChart.AddSeries(new DXDonutSeries() {
      // Series' Data and TooltipTextPattern configuration skipped.
      Label = new DXPieSeriesLabel() {
          Hidden = DXDefaultBoolean.No,
          Position = DXSeriesLabelPosition.Inside,
          TextPattern = "{VP} %",
          Style = new DXPieSeriesLabelStyle() {
              TextStyle = new DXTextStyle() {
                  ForegroundColor = UIColor.White
              }
          }
      }
  };


  The code above uses the following classes:

  Class	Description
  DXPieSeriesLabel	A Pie Series labels’ settings storage.
  DXPieSeriesLabelStyle	A Pie Series labels’ appearance settings storage.
  DXTextStyle	A text’s appearance settings storage.

• Create a new DXPieSeriesStyle instance and configure its parameters, then assign it to the DXDonutSeries.style property:

  Objective C

  DXPieSeriesStyle *seriesStyle = [[DXPieSeriesStyle alloc] init];
  seriesStyle.strokeThickness = 0;
  countrySeries.style = seriesStyle;


  Swift

  let seriesStyle = DXPieSeriesStyle()
  seriesStyle.strokeThickness = 0
  countrySeries.style = seriesStyle


  C#

  this.pieChart.AddSeries(new DXDonutSeries() {
      // Series' Data, TooltipTextPattern and Label configuration skipped.
      Style = new DXPieSeriesStyle() {
          StrokeThickness = 0
      }
  };


Result

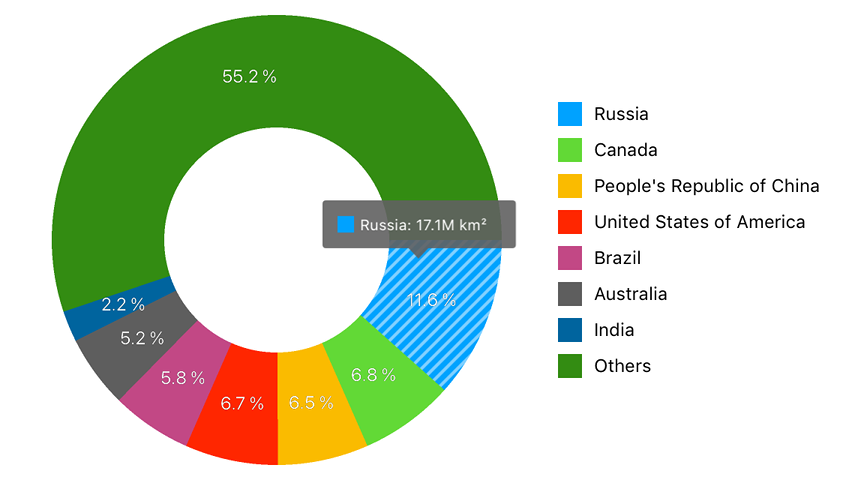

Launch the application to see the result:
