ChartElementFormat.LongTime Property

Displays a time value in the hh:mm:ss format (for example, 12:00:00 AM).

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v23.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public static ChartElementFormat LongTime { get; }

Property Value

Type	Description
ChartElementFormat	A ChartElementFormat enumeration value.

Remarks

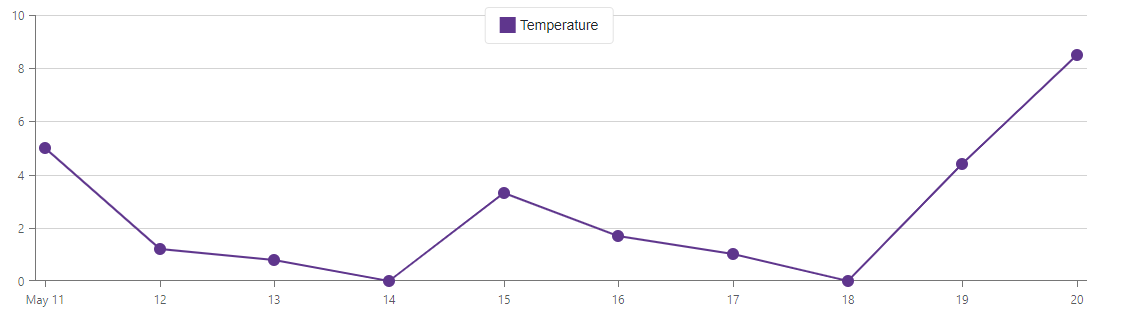

The default axis label’s format for dates is the following: the Chart component shows a month name and a day of the month under the first tick, on the other ticks the month name is absent.

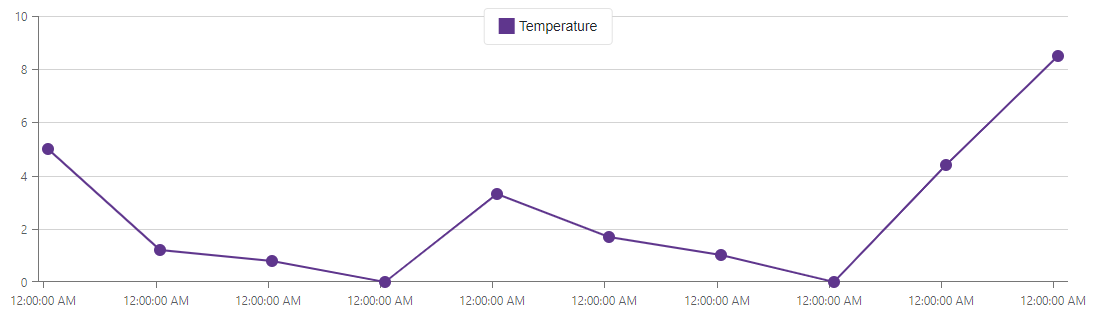

Use the LongTime property to display a time value in the following format: hours, minutes, and a period of a day (AM or PM), for example 12:00:00 AM. You can use this property for axis and series labels. The following code snippet calls the method for the argument axis of the Chart:

<DxChart Data="@forecasts">
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format='ChartElementFormat.LongTime'></DxChartAxisLabel>
    </DxChartArgumentAxis>
    @* ... *@
</DxChart>
