GanttToolbarSettings.Items Property

Provides access to the toolbar items collection.

Namespace: DevExpress.Web.ASPxGantt

Assembly: DevExpress.Web.ASPxGantt.v20.1.dll

NuGet Package: DevExpress.Web

Declaration

C#

public GanttToolbarItemCollection Items { get; }

VB.NET

Public ReadOnly Property Items As GanttToolbarItemCollection

Property Value

Type	Description
GanttToolbarItemCollection	The toolbar items collection.

Property Paths

You can access this nested property as listed below:

Object Type	Path to Items
ASPxGantt	.SettingsToolbar .Items
GanttSettings	.SettingsToolbar .Items
MVCxGantt	.SettingsToolbar .Items

Remarks

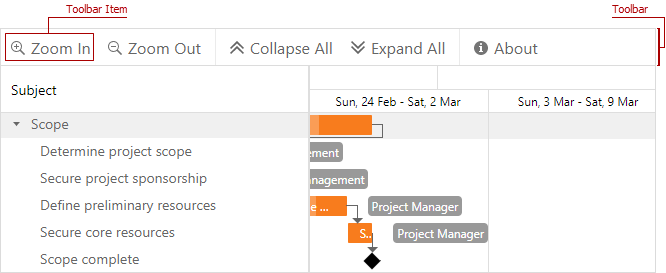

Use the Items property to access and manage toolbar items.

ASPX

<dx:ASPxGantt ID="Gantt" runat="server"...>
    ...
    <SettingsToolbar>
        <Items>
            <dx:GanttZoomInToolbarItem Text="Zoom In" />
            <dx:GanttZoomOutToolbarItem Text="Zoom Out" />
        </Items>
    </SettingsToolbar>
</dx:ASPxGantt>

Available toolbar item types:

Toolbar Item Type	Description
GanttAddTaskToolbarItem	A toolbar item that adds a task.
GanttCollapseAllToolbarItem	A toolbar item that collapses all tasks.
GanttExpandAllToolbarItem	A toolbar item that expands all tasks.
GanttFullScreenToolbarItem	A toolbar item that switches the control to full screen mode.
GanttRedoToolbarItem	A toolbar item that repeats the undone action.
GanttRemoveTaskToolbarItem	A toolbar item that removes a task.
GanttUndoToolbarItem	A toolbar item that reverses an action.
GanttZoomInToolbarItem	A toolbar item that zooms in.
GanttCustomToolbarItem	A custom toolbar item.
GanttZoomOutToolbarItem	A toolbar item that zooms out.

Examples

• Create a Standard Toolbar Item

• Create a Custom Toolbar Item

Online Demo

Gantt - Toolbar
