MapControl.Angle Property

Specifies the rotation of the map’s content.

Namespace: DevExpress.XtraMap

Assembly: DevExpress.XtraMap.v20.2.dll

NuGet Package: DevExpress.Win.Map

Declaration

C#

[DefaultValue(0)]
public double Angle { get; set; }

VB.NET

<DefaultValue(0)>
Public Property Angle As Double

Property Value

Type	Default	Description
Double	0	The angle in degrees.

Remarks

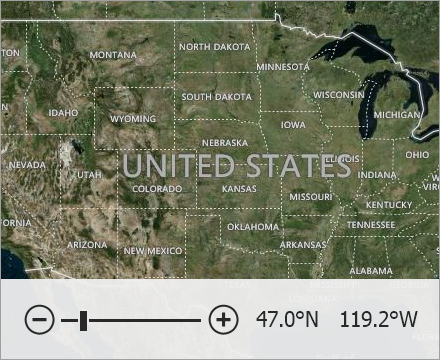

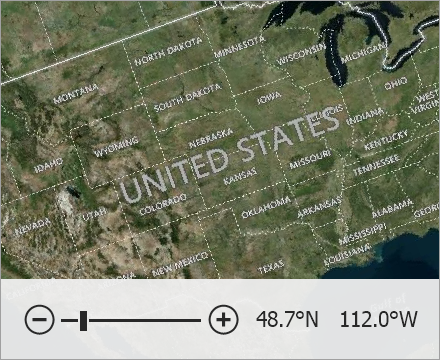

The following images illustrate a map with different Angle property values:

Angle = 0	Angle = 20

The code below rotates the map 20 degrees:

C#

mapControl1.Angle = 20;

VB.NET

mapControl1.Angle = 20

Alternatively, you can call the RotateAt method to specify the map’s rotation.
